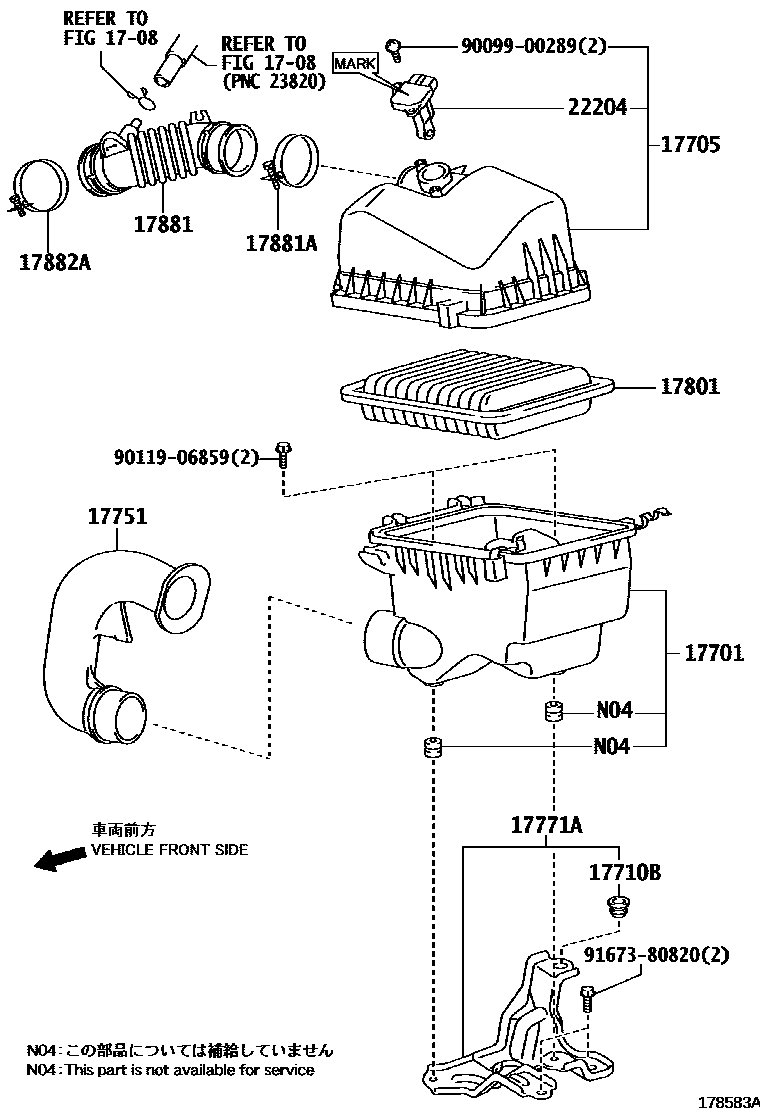

Toyota PROBOX/SUCCEED — AIR CLEANER

0001 1 0002 1 0003 1

1708

17701CASE SUB-ASSY, AIR CLEANER

main17701-21100i1NZFE..NCP16#201409

main17701-21140i1NZFXE..NHP160¥0201812

main17701-47070i1NRFE..NSP160201409

17705CAP SUB-ASSY, AIR CLEANER

main17705-21170i1NZFXE..NHP160201812

main17705-37181i1NZFE..NCP16#201409

main17705-47102i1NRFE..NSP160201409

17710BGROMMET

main90480-15036i1NZFXE..NHP160¥100201812

main90480-18006i1NZFE..NCP16#¥130201409

17751INLET, AIR CLEANER, NO.1

main17751-21160i1NZFE..NCP165¥2,840201409

main17751-21220i1NZFXE..NHP160¥1,810201812

main17751-21230i1NZFE..NCP160¥2,480201409

main17751-47060i1NRFE..NSP160¥2,460201409

17771ABRACKET, AIR CLEANER

main17771-21050i1NZFE..NCP16#..SUCD¥2,150201409-202007

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-21030i1NRFE..NSP160¥2,200201409

main17801-21050i1NZFE..NCP16#¥3,050201409

main17801-21060i1NZFXE..NHP160¥2,600201812

17881HOSE, AIR CLEANER, NO.1

main17880-21091i1NZFE..NCP16#¥2,070201409

main17881-21130i1NZFXE..NHP160¥1,550201812

main17881-47060i1NRFE..NSP160¥2,070201409

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10600i1NZFXE..NHP160¥110201812

main96111-10690i1NZFE,1NRFE..NCP16#,NSP160¥160201409

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-54002i1NZFXE..NHP160¥320201812

main90466-62002i1NRFE..NSP160¥320201409

main96111-10690i1NZFE..NCP16#¥160201409

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0T040i1NZ#,1NRFE..NCP16#,NHP160,NSP160¥16,500201409

sub22204-28010¥12,400

main22204-0V010i1NZ#,1NRFE..NCP16#,NHP160,NSP160¥16,500201409

main22204-0V020i1NZ#,1NRFE..NCP16#,NHP160,NSP160¥16,500201409

main22204-28010i1NZ#,1NRFE..NCP16#,NHP160,NSP160¥12,400201409

9009900289

main90099-00289¥60

9011906859

main90119-06859¥130

9167380820

main91673-80820¥80

14 parts on this diagram · 3 diagrams in section
