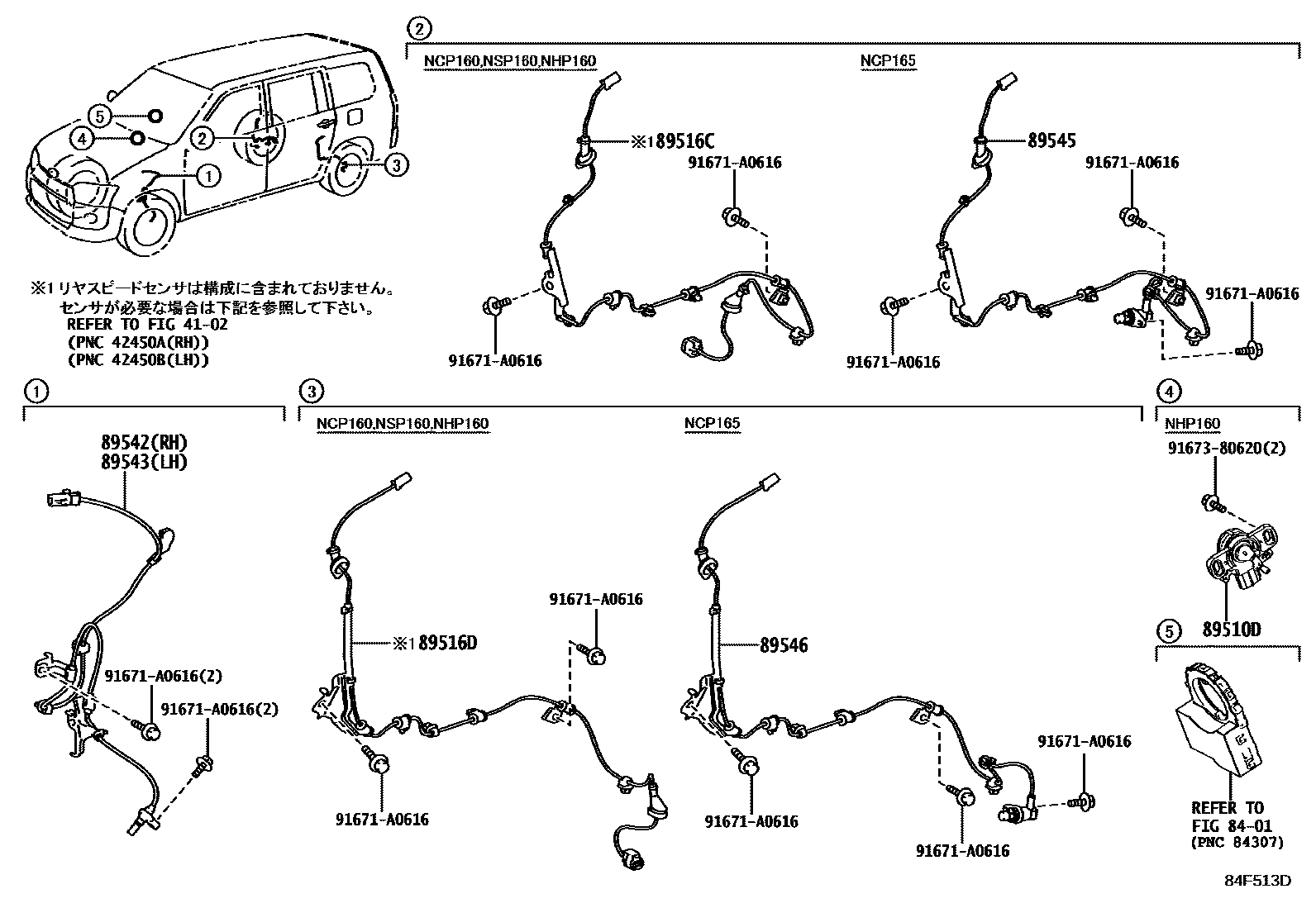

Toyota PROBOX/SUCCEED — ABS & VSC

4102

8401

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-33020iNHP160¥7,900201812

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-52150iNCP160,NHP160,NSP160¥2,140201409

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-52160iNCP160,NHP160,NSP160¥2,140201409

89542SENSOR, SPEED, FRONT RH

main89542-52130iNCP16#,NHP160,NSP160¥8,100201409

89543SENSOR, SPEED, FRONT LH

main89543-52130iNCP16#,NHP160,NSP160¥8,100201409

89545SENSOR, SPEED, REAR RH

main89545-52060iNCP165..SUCD¥8,100201409-202007

main89545-52060iNCP165..PROB¥8,100201409

89546SENSOR, SPEED, REAR LH

main89546-52060iNCP165..SUCD¥8,100201409-202007

main89546-52060iNCP165..PROB¥8,100201409

91671A0616

main91671-A0616¥60

9167380620

main91673-80620¥60

11 parts on this diagram · 1 diagram in section
