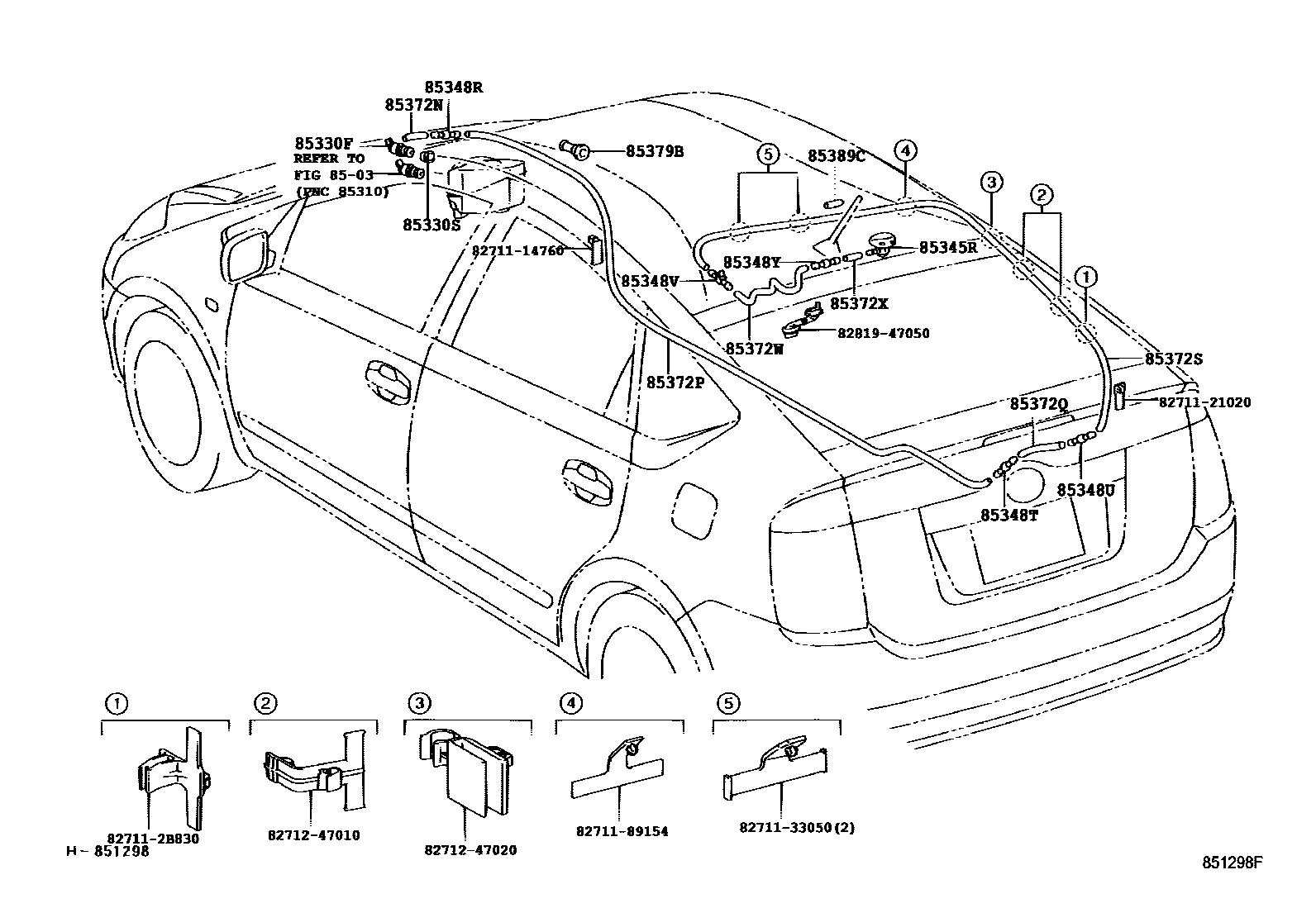

Toyota PRIUS — REAR WASHER
8503
85330FMOTOR & PUMP ASSY, RR WASHER
85330SBUSH, REAR WASHER JAR
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85348YJOINT, REAR WASHER HOSE, NO.5
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=60)
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=3300(*H,L=3000)
L=3300(*H,L=3000),SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD)
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=1000(*H,L=40)
L=1000(*H,L=40),SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD)
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
L=3300(*H,L=1810)
L=3300(*H,L=1810),SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD)
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
L=1000(*H,L=290)
L=1000(*H,L=290),SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD)
85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
L=1800(*H,L=60)
L=1800(*H,L=60),SRS AIR BAG-W(DRIVER&PASSENGER&SIDE&CURTAIN SHIELD)
85379BGROMMET, WASHER, A
85389CPROTECTOR, WASHER
8271114760WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
8271121020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
827112B830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
8271133050WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
8271189154WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
8271247010CLAMP, WIRING HARNESS
8271247020CLAMP, WIRING HARNESS
8281947050GROMMET, WIRING HARNESS
25 parts on this diagram · 1 diagram in section
