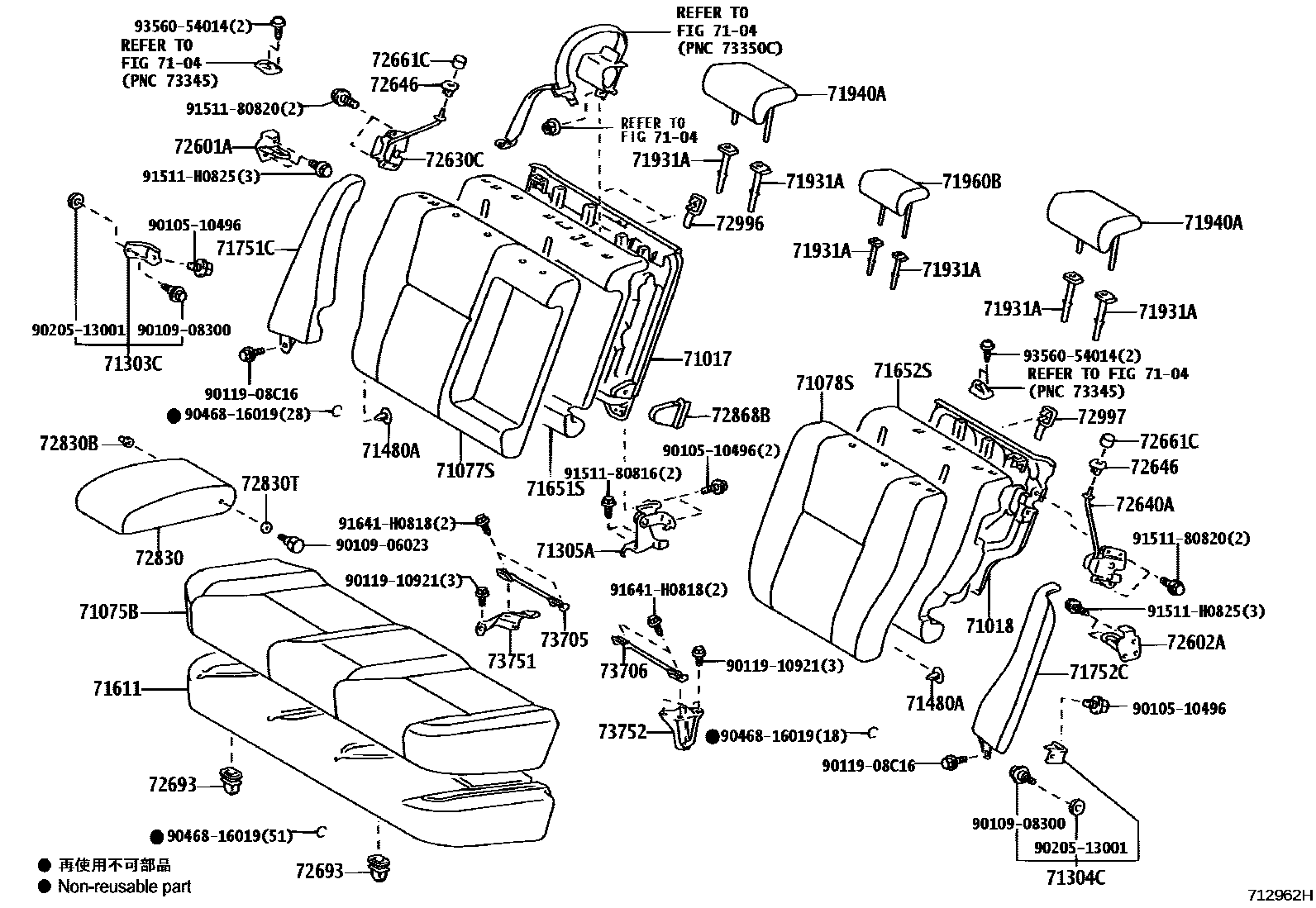

Toyota PRIUS — REAR SEAT & SEAT TRACK

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-47080iNHW20¥25,600200308-200511

main71017-47080iNHW20¥25,600200511-200903

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-47040iNHW20¥17,100200308-200511

main71018-47040iNHW20¥17,100200511-200903

7104

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-47080-A2iNHW20200308-200511

IVORY,TRIM0#

sub71075-47081¥70,000

main71075-47080-B2iNHW20200308-200511

MD.GRAY,TRIM1#

sub71075-47081¥70,000

main71075-47100-B0iNHW20200511-200903

MD.GRAY,TRIM1#

sub71075-47101¥70,000

sub71075-47100¥70,000

main71075-47100-E1iNHW20200511-200903

GREGE,TRIM4#

sub71075-47101¥70,000

sub71075-47100¥70,000

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-47120-A3iNHW20200308-200408

IVORY,TRIM0#

main71077-47120-B3iNHW20200308-200408

MD.GRAY,TRIM1#

main71077-47130-A1iNHW20200408-200511

IVORY,TRIM0#

main71077-47130-B1iNHW20200408-200511

MD.GRAY,TRIM1#

main71077-47160-B0iNHW20200511-200903

MD.GRAY,TRIM1#

main71077-47160-E1iNHW20200511-200903

GREGE,TRIM4#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-47060-A3iNHW20200308-200408

IVORY,TRIM0#

sub71078-47061¥37,000

main71078-47060-B3iNHW20200308-200408

MD.GRAY,TRIM1#

sub71078-47061¥37,000

main71078-47070-A1iNHW20200408-200511

IVORY,TRIM0#

sub71078-47071

main71078-47070-B1iNHW20200408-200511

MD.GRAY,TRIM1#

sub71078-47071

main71078-47100-B0iNHW20200511-200903

MD.GRAY,TRIM1#

sub71078-47101

main71078-47100-E1iNHW20200511-200903

GREGE,TRIM4#

sub71078-47101

71303CHINGE SUB-ASSY, REAR SEATBACK, RH

main71303-47010iNHW20¥1,710200308-200511

main71303-47010iNHW20¥1,710200511-200903

71304CHINGE SUB-ASSY, REAR SEATBACK, LH

main71304-47010iNHW20¥2,300200308-200511

main71304-47010iNHW20¥2,300200511-200903

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-47020iNHW20¥5,100200308-200511

main71305-47020iNHW20¥5,100200511-200903

71480ACLIP (FOR REAR SEATBACK)

main90467-11021iNHW20¥240200511-200903

sub90467-11068¥140

main90467-11021-01iNHW20200308-200511

BLACK,TRIM0#,1#

sub90467-11068¥140

71611PAD, REAR SEAT CUSHION

main71503-47030iNHW20¥30,900200308-200511

main71503-47040iNHW20¥30,900200511-200903

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-47030iNHW20¥16,200200308-200511

main71651-47040iNHW20¥13,200200511-200903

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-47030iNHW20¥12,600200308-200511

main71652-47040iNHW20¥11,600200511-200903

71751CFRAME, REAR SIDE SEATBACK, RH

main71751-47020-B0iNHW20200308-200511

MD.GRAY,TRIM1#

sub71751-47021¥4,330

main71751-47020-E0iNHW20200308-200511

MD.NEUTRAL BONE,TRIM0#

sub71751-47021¥4,330

main71751-47021-B4iNHW20200511-200903

MD.GRAY,TRIM1#

main71751-47021-E2iNHW20200511-200903

GREGE,TRIM4#

71752CFRAME, REAR SIDE SEATBACK, LH

main71752-47020-B0iNHW20200308-200511

MD.GRAY,TRIM1#

sub71752-47021¥4,330

main71752-47020-E0iNHW20200308-200511

MD.NEUTRAL BONE,TRIM0#

sub71752-47021¥4,330

main71752-47021-B4iNHW20200511-200903

MD.GRAY,TRIM1#

main71752-47021-E2iNHW20200511-200903

GREGE,TRIM4#

71931ASUPPORT, REAR SEAT HEADREST

main71930-42020-A0iNHW20200308-200511

W(LOCK)&W(BUTTON),IVORY,TRIM0#,RH & LH

sub71930-52030¥950

sub71930-42020¥1,260

sub71930-44020¥1,260

main71930-42020-B6iNHW20200308-200511

W(LOCK)&W(BUTTON),MD.GRAY,TRIM1#,RH & LH

sub71930-52030¥950

sub71930-42020¥1,260

sub71930-44020¥1,260

main71930-42020-B6iNHW20200511-200706

W(LOCK)&W(BUTTON),MD.GRAY,TRIM1#,RH & LH

sub71930-52030¥950

sub71930-42020¥1,260

sub71930-44020¥1,260

main71930-42020-E1iNHW20200511-200706

W(LOCK)&W(BUTTON),GREGE,TRIM4#,RH & LH

sub71930-52030¥950

sub71930-42020¥1,260

sub71930-44020¥1,260

main71930-52030-B7iNHW20200707-200903

W(LOCK)&W(BUTTON),MD.GRAY,TRIM1#,RH & LH

sub71930-52030¥950

main71930-52030-E0iNHW20200707-200903

W(LOCK)&W(BUTTON),GREGE,TRIM4#,RH & LH

sub71930-52030¥950

main71931-42020-A0iNHW20200308-200511

W(LOCK)&W/O(BUTTON),IVORY,TRIM0#,RH & LH

sub71931-42020¥590

main71931-42020-B6iNHW20200511-200903

W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1#,RH & LH

sub71931-42020¥590

main71931-42020-B6iNHW20200308-200511

W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1#,RH & LH

sub71931-42020¥590

main71931-42020-E1iNHW20200511-200903

W(LOCK)&W/O(BUTTON),GREGE,TRIM4#,RH & LH

sub71931-42020¥590

main71956-47010-A0iNHW20200308-200511

W/O(LOCK),IVORY,TRIM0#,CENTER

sub71956-02040¥1,030

sub71956-47010¥1,020

main71956-47010-B8iNHW20200308-200511

W/O(LOCK),MD.GRAY,TRIM1#,CENTER

sub71956-02040¥1,030

sub71956-47010¥1,020

main71956-47010-B8iNHW20200511-200903

W/O(LOCK),MD.GRAY,TRIM1#,CENTER

sub71956-02040¥1,030

sub71956-47010¥1,020

main71956-47010-E2iNHW20200511-200903

W/O(LOCK),GREGE,TRIM4#,CENTER

sub71956-02040¥1,030

sub71956-47010¥1,020

main71970-47010-A0iNHW20200308-200511

W(LOCK),IVORY,TRIM0#,CENTER

sub71970-02040¥1,160

sub71970-47010¥1,260

main71970-47010-B7iNHW20200511-200903

W(LOCK),MD.GRAY,TRIM1#,CENTER

sub71970-02040¥1,160

sub71970-47010¥1,260

main71970-47010-B7iNHW20200308-200511

W(LOCK),MD.GRAY,TRIM1#,CENTER

sub71970-02040¥1,160

sub71970-47010¥1,260

main71970-47010-E2iNHW20200511-200903

W(LOCK),GREGE,TRIM4#,CENTER

sub71970-02040¥1,160

sub71970-47010¥1,260

71940AHEADREST ASSY, REAR SEAT

main71940-47070-A2iNHW20200308-200511

IVORY,TRIM0#

main71940-47070-B2iNHW20200308-200511

MD. GRAY,TRIM1#

main71940-47090-B0iNHW20200511-200903

MD.GRAY,TRIM1#

sub71940-47091¥27,600

sub71940-47090¥27,600

main71940-47090-E1iNHW20200511-200903

GREGE,TRIM4#

sub71940-47091¥27,600

sub71940-47090¥27,600

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-47020-A0iNHW20200308-200511

IVORY,TRIM0#

sub71960-47040¥22,100

main71960-47020-B0iNHW20200308-200511

MD.GRAY,TRIM1#

sub71960-47040¥22,100

main71960-47040-B0iNHW20200511-200903

MD.GRAY,TRIM1#

sub71960-47041¥22,100

main71960-47040-E0iNHW20200511-200903

GREGE,TRIM4#

sub71960-47041¥22,100

72601ASTRIKER SUB-ASSY, REAR SEATBACK LOOK, RH

main72601-47020iNHW20¥3,090200308-200511

main72601-47020iNHW20¥3,090200511-200903

72602ASTRIKER SUB-ASSY, REAR SEATBACK LOCK, LH

main72602-47010iNHW20¥2,690200308-200511

main72602-47010iNHW20¥2,690200511-200903

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-47020iNHW20¥2,960200308-200511

main72630-47020iNHW20¥2,960200511-200903

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-47020iNHW20¥2,960200308-200511

main72640-47020iNHW20¥2,960200511-200903

72646GROMMET, REAR SEATBACK STOP BUTTON

main72646-33020-A0iNHW20200308-200511

IVORY,TRIM0#

sub72646-33020¥1,390

main72646-33020-B7iNHW20200308-200511

MD.GRAY,TRIM1#

sub72646-33020¥1,390

main72646-33020-B7iNHW20200511-200903

MD.GRAY,TRIM1#

sub72646-33020¥1,390

main72646-33020-E2iNHW20200511-200903

GREGE,TRIM4#

sub72646-33020¥1,390

72661CBUTTON, REAR SEATBACK LOCK RELEASE

main72661-13030-A0iNHW20200308-200511

IVORY,TRIM0#

sub72661-13030¥460

main72661-13030-B7iNHW20200511-200903

MD.GRAY,TRIM1#

sub72661-13030¥460

main72661-13030-B7iNHW20200308-200511

MD.GRAY,TRIM1#

sub72661-13030¥460

main72661-13030-E2iNHW20200511-200903

GREGE,TRIM4#

sub72661-13030¥460

72693HOOK, REAR SEAT CUSHION LOCK

main72693-12080iNHW20¥220200308-200511

main72693-12080iNHW20¥220200511-200903

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-47030-A0iNHW20200308-200511

IVORY,TRIM0#

main72830-47030-B0iNHW20200308-200511

MD.GRAY,TRIM1#

main72830-47050-B0iNHW20200511-200903

MD.GRAY,TRIM1#

sub72830-47050¥33,100

main72830-47050-E0iNHW20200511-200903

GREGE,TRIM4#

sub72830-47050¥33,100

72830BBUSH(FOR REAR SEAT CENTER ARMREST)

main72622-47010iNHW20¥100200308-200511

main72622-47010iNHW20¥100200511-200903

72830TBUSH (FOR REAR SEAT CENTER ARMREST)

main72622-47020iNHW20¥110200308-200511

main72622-47020iNHW20¥110200511-200903

72868BCOVER, CENTER ARMREST HINGE

main72868-47010-A0iNHW20200308-200511

IVORY,TRIM0#

main72868-47010-B0iNHW20200308-200511

MD.GRAY,TRIM1#

main72868-47010-B0iNHW20200511-200903

MD.GRAY,TRIM1#

main72868-47010-E0iNHW20200511-200903

GREGE,TRIM4#

72996COVER, REAR SEATBACK, RH

main72996-60110-A0iNHW20200308-200511

IVORY,TRIM0#

sub72996-60110¥1,060

main72996-60110-B0iNHW20200308-200511

MD.GRAY,TRIM1#

sub72996-60110¥1,060

main72996-60110-B0iNHW20200511-200903

MD.GRAY,TRIM1#

sub72996-60110¥1,060

main72996-60110-E2iNHW20200511-200903

GREGE,TRIM4#

sub72996-60110¥1,060

72997COVER, REAR SEATBACK, LH

main72996-60110-A0iNHW20200308-200511

IVORY,TRIM0#

sub72996-60110¥1,060

main72996-60110-B0iNHW20200308-200511

MD.GRAY,TRIM1#

sub72996-60110¥1,060

main72996-60110-B0iNHW20200511-200903

MD.GRAY,TRIM1#

sub72996-60110¥1,060

main72996-60110-E2iNHW20200511-200903

GREGE,TRIM4#

sub72996-60110¥1,060

73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

main73705-47010iNHW20¥1,450200308-200408

main73705-47020iNHW20¥1,450200408-200511

main73705-47030iNHW20¥1,430200511-200903

73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

main73706-47010iNHW20¥1,450200308-200408

main73706-47020iNHW20¥1,450200408-200511

main73706-47030iNHW20¥1,430200511-200903

73751BRACKET, CRS ANCHOR, RH

main73751-47010iNHW20¥3,880200308-200511

main73751-47010iNHW20¥3,880200511-200903

73752BRACKET, CRS ANCHOR, LH

main73752-47010iNHW20¥3,880200308-200511

main73752-47010iNHW20¥3,880200511-200903

9010510496

main90105-10496¥130

9010906023

main90109-06023¥110

9010908300

main90109-08300¥170

9011908C16

main90119-08C16¥110

9011910921

main90119-10921¥100

9020513001

main90205-13001¥120

9046816019

main90468-16019¥90

9151180816

main91511-80816¥90

9151180820

main91511-80820¥80

91511H0825

main91511-H0825¥130

91641H0818

main91641-H0818¥130

9356054014

main93560-54014¥60

47 parts on this diagram · 1 diagram in section
