Toyota PRIUS — PARTIAL ENGINE ASSEMBLY

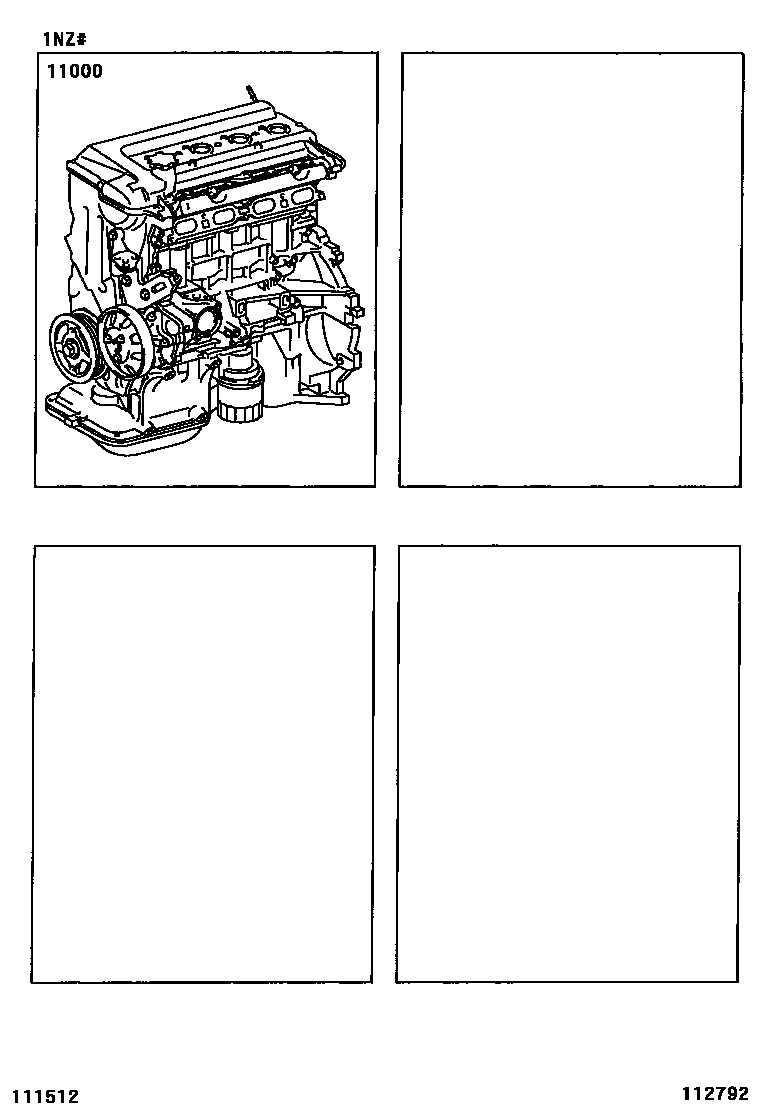

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-21300i¥586,000200308-200403
sub19000-21811¥589,000
sub23901-21081¥5,900
main19000-21300i¥586,000200403-200501
PNC 23807=TYPE A
sub19000-21811¥589,000
sub23901-21081¥5,900
main19000-21811i¥589,000200501-200511
PNC 23807=TYPE B
main19000-21811i¥589,000200511-200903

1 parts on this diagram · 1 diagram in section
