Toyota PRIUS — MIRROR

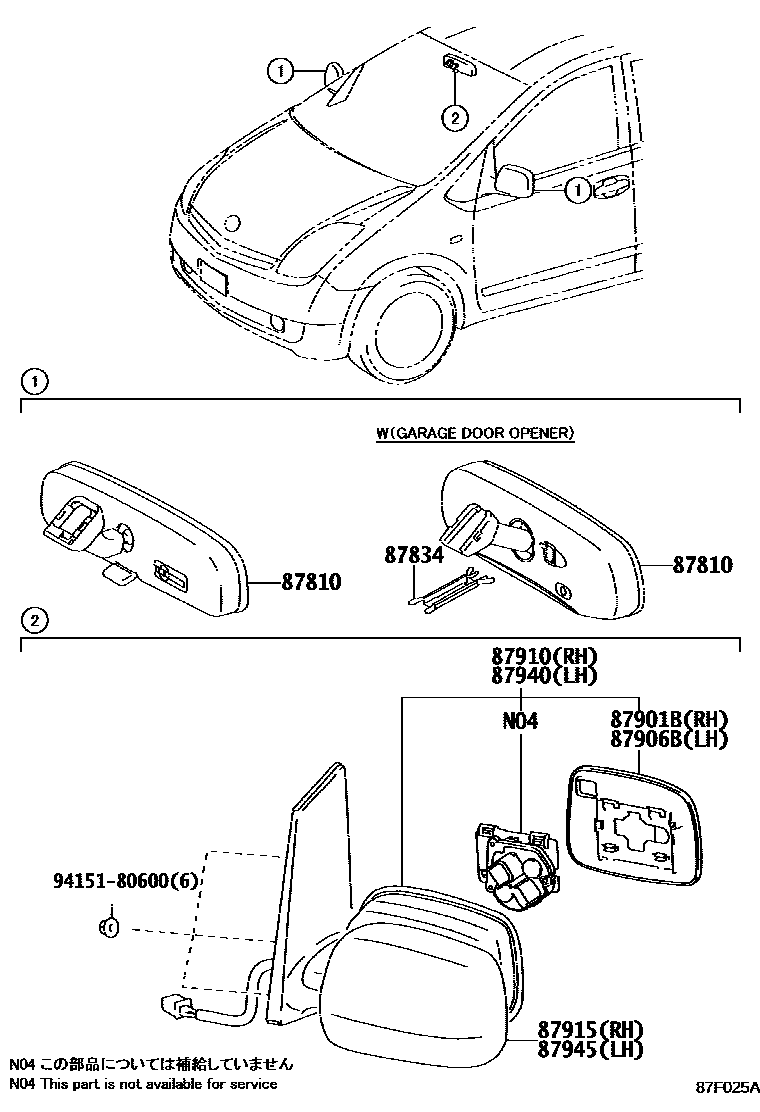

Parts diagram
87810MIRROR ASSY, INNER REAR VIEW
main87810-52040i¥10,100200308-200511
sub87810-52041¥6,200
main87810-52040i¥10,100200511-200612
sub87810-52041¥6,200
main87810-52041i¥6,200200701-200903
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main87818-48010¥500
main87818-AC010¥360
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
main87931-47100i¥6,600200308-200511
main87931-47100i¥6,600200511-200903
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
main87961-47100i¥6,600200308-200511
main87961-47100i¥6,600200511-200903
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-47100i¥24,200200308-200407
NO PAINT REQ.
sub87910-47101¥24,200
main87910-47101i¥24,200200408-200511
NO PAINT REQ.
main87910-47101i¥24,200200511-200903
NO PAINT REQ.
87915COVER, OUTER MIRROR, RH
main87915-68010-A1i200511-200903
SUPER WHITE 2,040
sub87915-68010¥3,110
sub87915-68900
main87915-68010-A1i200308-200511
SUPER WHITE 2,040
sub87915-68010¥3,110
sub87915-68900
main87915-68010-B3i200308-200511
SILVER ME.,1C0
sub87915-68010¥3,110
sub87915-68900
main87915-68010-B7i200511-200903
SILVER ME.,1F7
sub87915-68010¥3,110
sub87915-68900
main87915-68010-C1i200308-200511
BLACK,202
sub87915-68010¥3,110
sub87915-68900
main87915-68010-C1i200511-200903
BLACK,202
sub87915-68010¥3,110
sub87915-68900
main87915-68010-D2i200308-200511
DK. RED M.M.,3Q3
sub87915-68010¥3,110
sub87915-68900
main87915-68010-D7i200511-200903
RED M.M.,3R3
sub87915-68010¥3,110
sub87915-68900
main87915-68010-E0i200308-200511
BRONZE M.M.,4S2
sub87915-68010¥3,110
sub87915-68900
main87915-68010-E0i200511-200903
BRONZE M.M.,4S2
sub87915-68010¥3,110
sub87915-68900
main87915-68010-G0i200308-200511
JADE GREEN M.M.,6S9
sub87915-68010¥3,110
sub87915-68900
main87915-68010-G3i200511-200903
LT.GREEN ME.,6U0
sub87915-68010¥3,110
sub87915-68900
main87915-68010-J2i200708-200903
BLUE MC.,8M6
sub87915-68010¥3,110
sub87915-68900
main87915-68010-J3i200308-200511
BLUE M.M.,8S2
sub87915-68010¥3,110
sub87915-68900
main87915-68010-J3i200511-200903
BLUE M.M.,8S2
sub87915-68010¥3,110
sub87915-68900
main87915-68010-P0i200511-200903
GRAY ME.,1G3
sub87915-68010¥3,110
sub87915-68900
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-47100i¥24,200200308-200407
NO PAINT REQ.
sub87940-47101¥24,200
main87940-47101i¥24,200200408-200511
NO PAINT REQ.
main87940-47101i¥24,200200511-200903
NO PAINT REQ.
87945COVER, OUTER MIRROR, LH
main87945-68010-A1i200511-200903
SUPER WHITE 2,040
sub87945-68010¥3,110
sub87945-68900
main87945-68010-A1i200308-200511
SUPER WHITE 2,040
sub87945-68010¥3,110
sub87945-68900
main87945-68010-B3i200308-200511
SILVER ME.,1C0
sub87945-68010¥3,110
sub87945-68900
main87945-68010-B7i200511-200903
SILVER ME.,1F7
sub87945-68010¥3,110
sub87945-68900
main87945-68010-C1i200308-200511
BLACK,202
sub87945-68010¥3,110
sub87945-68900
main87945-68010-C1i200511-200903
BLACK,202
sub87945-68010¥3,110
sub87945-68900
main87945-68010-D2i200308-200511
DK. RED M.M.,3Q3
sub87945-68010¥3,110
sub87945-68900
main87945-68010-D7i200511-200903
RED M.M.,3R3
sub87945-68010¥3,110
sub87945-68900
main87945-68010-E0i200308-200511
BRONZE M.M.,4S2
sub87945-68010¥3,110
sub87945-68900
main87945-68010-E0i200511-200903
BRONZE M.M.,4S2
sub87945-68010¥3,110
sub87945-68900
main87945-68010-G0i200308-200511
JADE GREEN M.M.,6S9
sub87945-68010¥3,110
sub87945-68900
main87945-68010-G3i200511-200903
LT.GREEN ME.,6U0
sub87945-68010¥3,110
sub87945-68900
main87945-68010-J2i200708-200903
BLUE MC.,8M6
sub87945-68010¥3,110
sub87945-68900
main87945-68010-J3i200511-200903
BLUE M.M.,8S2
sub87945-68010¥3,110
sub87945-68900
main87945-68010-J3i200308-200511
BLUE M.M.,8S2
sub87945-68010¥3,110
sub87945-68900
main87945-68010-P0i200511-200903
GRAY ME.,1G3
sub87945-68010¥3,110
sub87945-68900
9415180600
main94151-80600¥60

9 parts on this diagram · 1 diagram in section
