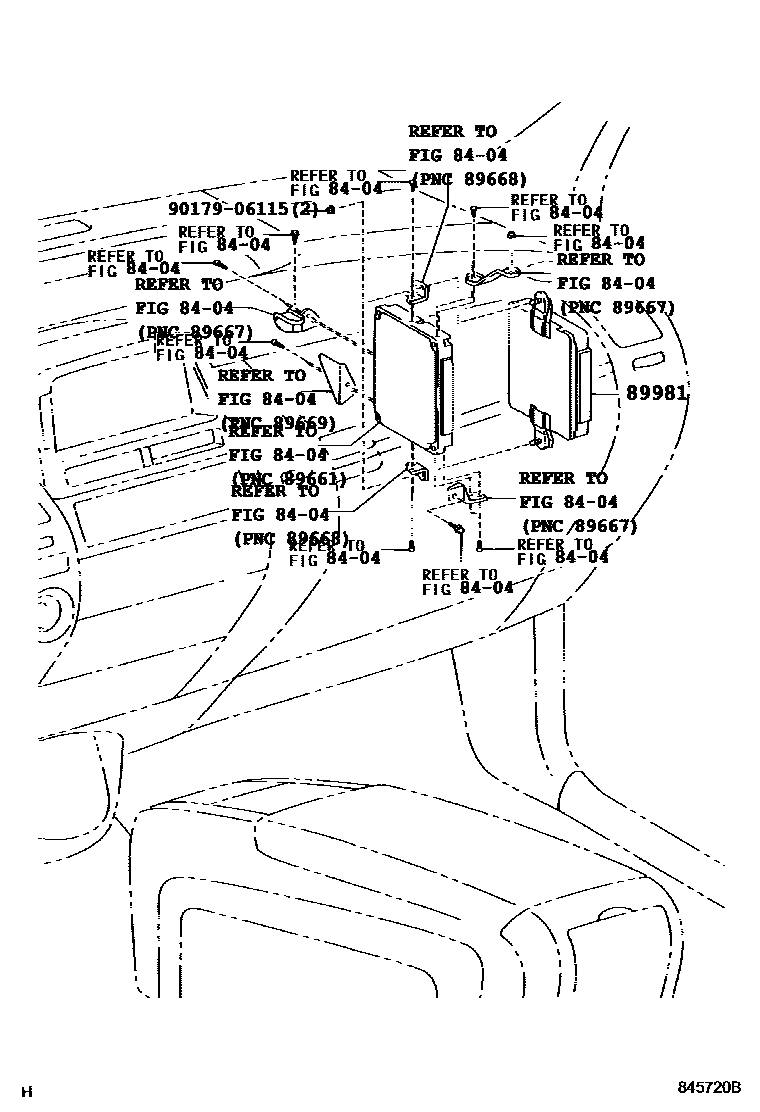

Toyota PRIUS — HEV CONTROL COMPUTER

8404

89981COMPUTER, HYBRID VEHICLE CONTROL

main89981-47080iNHW20200308-200309

sub89981-47081

main89981-47081iNHW20200309-200310

sub89981-47082¥92,100

main89981-47082iNHW20¥92,100200310-200312

sub89981-47083

main89981-47083iNHW20200401-200402

sub89981-47084

main89981-47084iNHW20200403-200405

sub89981-47085

main89981-47085iNHW20200406-200408

sub89981-47150

main89981-47120iNHW20200408-200409

sub89981-47121

main89981-47121iNHW20200410-200411

sub89981-47122

main89981-47123iNHW20¥92,400200412-200511

sub89981-47260

main89981-47210iNHW20200511-200603

sub89981-47211

main89981-47211iNHW20200603-200806

sub89981-47212¥92,300

main89981-47212iNHW20¥92,300200807-200903

9017906115

main90179-06115¥120

3 parts on this diagram · 1 diagram in section
