Toyota PRIUS — CONSOLE BOX & BRACKET

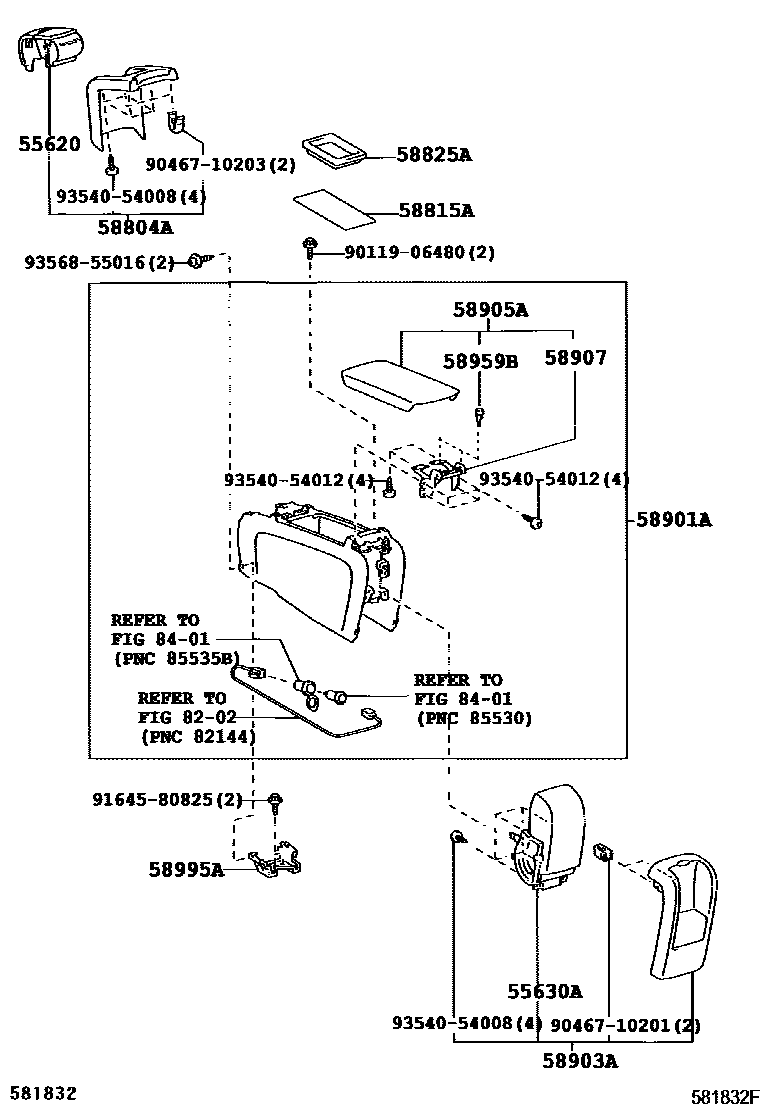

Parts diagram
55620HOLDER ASSY, INSTRUMENT PANEL CUP
main55620-47010i¥10,400200511-200903
main55620-47010i¥10,400200308-200511
55630AHOLDER, REAR CONSOLE BOX, CUP
main55630-47020-A0i200308-200511
IVORY,TRIM0#
sub55630-47021¥10,100
main55630-47020-B0i200308-200511
MD.GRAY,TRIM1#
sub55630-47021¥10,100
main55630-47020-B0i200511-200801
MD.GRAY,TRIM1#
sub55630-47021¥10,100
main55630-47020-E0i200511-200801
GREGE,TRIM4#
sub55630-47021¥10,100
main55630-47021-B0i200802-200903
MD.GRAY,TRIM1#
main55630-47021-E0i200802-200903
GREGE,TRIM4#
58804APANEL SUB-ASSY, CONSOLE, UPPER
main58804-47010i¥14,800200511-200903
main58804-47010i¥14,800200308-200511
58815ACARPET, CONSOLE BOX
main58815-47020i¥450200308-200511
main58815-47020i¥450200511-200903
58825APOCKET, CONSOLE BOX
main58825-47010i¥2,710200308-200511
main58825-47010i¥2,710200511-200903
58901ABOX SUB-ASSY, CONSOLE, REAR
main58901-47030-A0i200308-200503
IVORY,TRIM0#
sub58901-47030¥41,500
sub58901-47070
main58901-47030-A1i200503-200511
IVORY,TRIM08
sub58901-47030¥41,500
sub58901-47070
main58901-47030-B0i200308-200503
MD.GRAY,TRIM1#
sub58901-47030¥41,500
sub58901-47070
main58901-47030-B1i200511-200903
MD.GRAY,TRIM1#
sub58901-47030¥41,500
sub58901-47070
main58901-47030-B4i200503-200511
MD.GRAY,TRIM18
sub58901-47030¥41,500
sub58901-47070
main58901-47030-E0i200511-200903
GREGE,TRIM4#
sub58901-47030¥41,500
sub58901-47070
58903APANEL SUB-ASSY, CONSOLE REAR END
main58903-47010-A0i200308-200511
IVORY,TRIM0#
sub58903-47011¥16,200
main58903-47010-B0i200308-200511
MD.GRAY,TRIM1#
sub58903-47011¥16,200
main58903-47010-B0i200511-200801
MD.GRAY,TRIM1#
sub58903-47011¥16,200
main58903-47010-E0i200511-200801
GREGE,TRIM4#
sub58903-47011¥16,200
main58903-47011-B0i200802-200903
MD.GRAY,TRIM1#
main58903-47011-E0i200802-200903
GREGE,TRIM4#
58905ADOOR SUB-ASSY, CONSOLE COMPARTMENT, REAR
main58905-47030-A0i200308-200503
IVORY,TRIM0#
sub58905-47030¥21,900
main58905-47030-A1i200503-200511
IVORY,TRIM08
sub58905-47030¥21,900
main58905-47030-B0i200308-200503
MD.GRAY,TRIM1#
sub58905-47030¥21,900
main58905-47030-B1i200511-200903
MD.GRAY,TRIM1#
sub58905-47030¥21,900
main58905-47030-B4i200503-200511
MD.GRAY,TRIM18
sub58905-47030¥21,900
main58905-47030-E0i200511-200903
GREGE,TRIM4#
sub58905-47030¥21,900
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58907-47010i¥3,400200308-200511
main58907-47010i¥3,400200511-200903
58959BCUSHION, CONSOLE COMPARTMENT DOOR
main58959-60060i¥100200308-200511
main58959-60060i¥100200511-200903
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
main58995-47010i¥1,170200308-200511
main58995-47010i¥1,170200511-200903
8202
8401
9011906480
main90119-06480¥80
9046710201
main90467-10201¥80
9046710203
main90467-10203¥60
9164580825
main91645-80825¥100
9354054008
main93540-54008¥60
9354054012
main93540-54012¥90
9356855016
main93568-55016¥70

20 parts on this diagram · 1 diagram in section
