Toyota PRIUS — AIR BAG

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-33010iNHW20¥460200308-200903

89170SENSOR ASSY, AIRBAG

main89170-47060iNHW20..CND200511-200903

main89170-47070iNHW20..USA200608-200903

main89170-47360iNHW20200308-200511

89173ASENSOR, AIRBAG, FRONT RH

main89173-49315iNHW20¥13,200200308-200903

89174ASENSOR, AIRBAG, FRONT LH

main89174-49125iNHW20¥13,200200308-200903

89178ASENSOR, SEAT POSITION AIRBAG

main89178-33020iNHW20¥4,500200308-200511

main89178-33040iNHW20¥3,110200511-200903

89833SENSOR, AIRBAG, REAR RH

main89833-47030iNHW20..USA¥24,900200608-200903

89834SENSOR, AIRBAG, REAR LH

main89834-47020iNHW20..USA¥24,900200608-200903

89860SENSOR ASSY, SIDE AIRBAG, RH

main89860-47040iNHW20..USA¥24,900200608-200903

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89860-47040iNHW20..USA¥24,900200608-200903

89952COMPUTER, OCCUPANT DETECTION

main89952-35011iNHW20¥10,100200511-200903

sub89952-35020¥8,400

9010508420

main90105-08420¥110

9011908C48

main90119-08C48¥90

91553A0612

main91553-A0612¥60

91553A0810

main91553-A0810¥80

9415180600

main94151-80600¥60

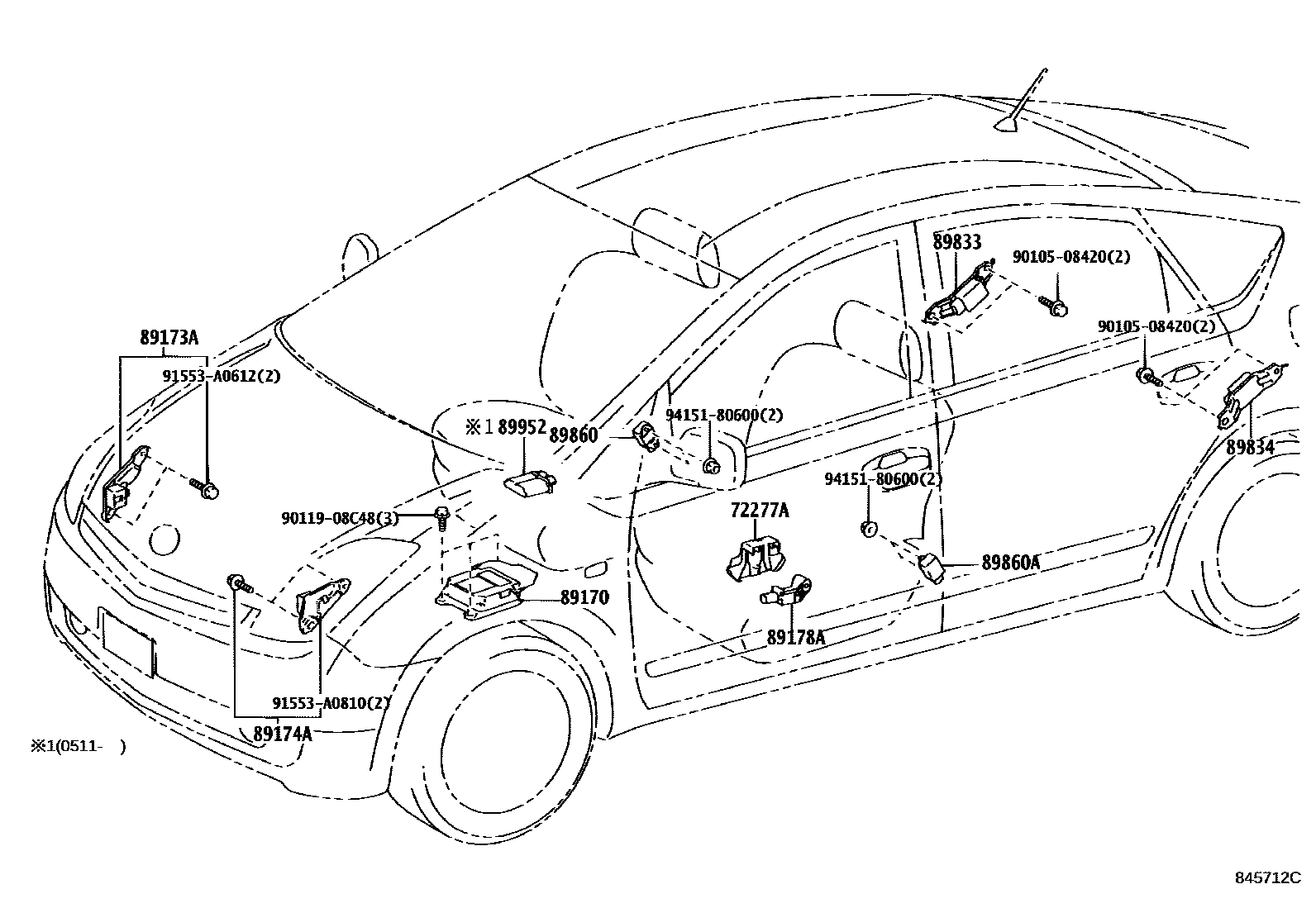

15 parts on this diagram · 1 diagram in section
