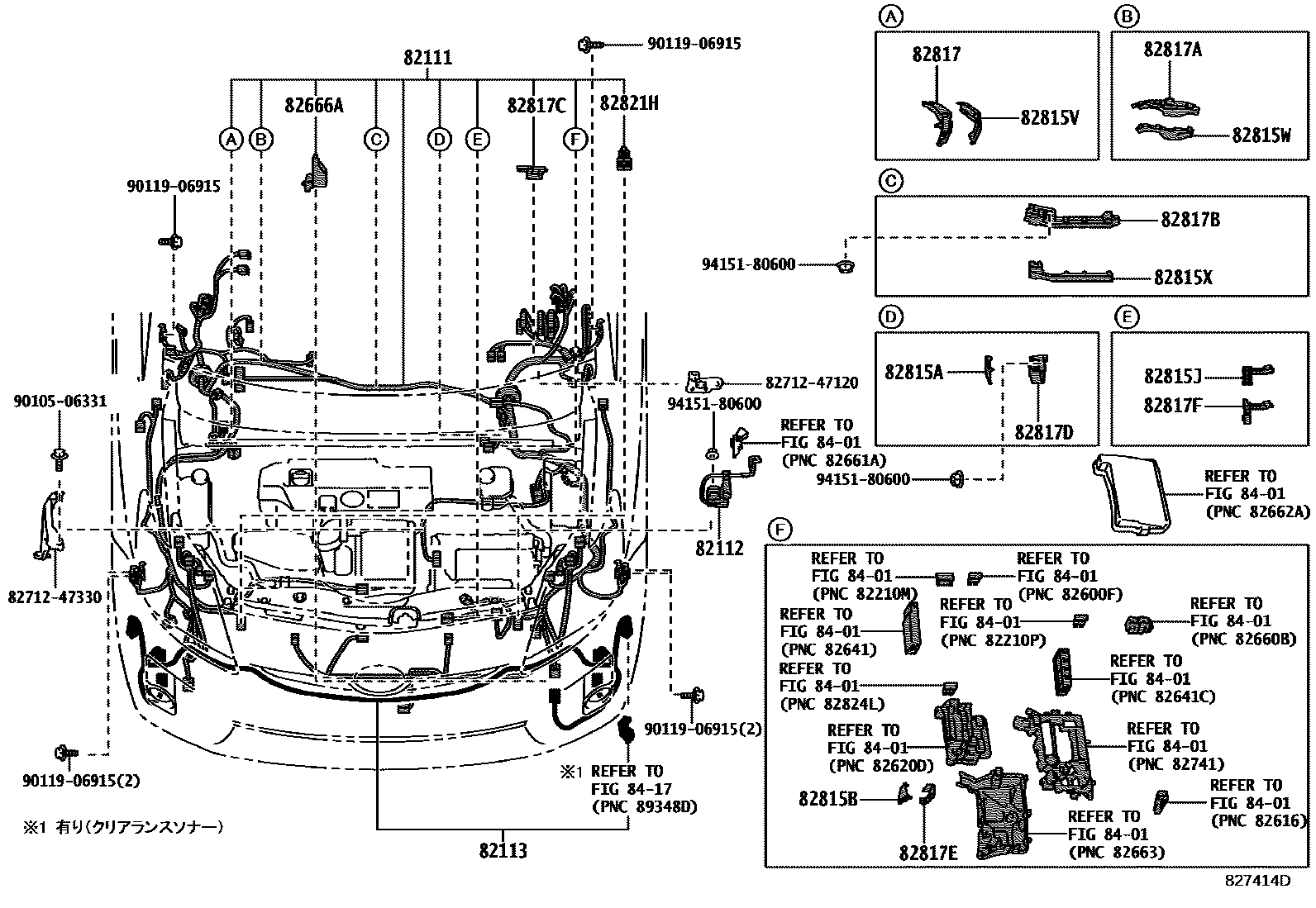

Toyota PRIUS — WIRING & CLAMP
82111WIRE, ENGINE ROOM MAIN
82112WIRE, ENGINE ROOM, NO.2
82113WIRE, ENGINE ROOM, NO.3
82666AHOLDER, CONNECTOR NO.2
82815ACOVER, WIRING HARNESS PROTECTOR
82815BCOVER, WIRING HARNESS PROTECTOR
82815JCOVER, WIRING HARNESS PROTECTOR, NO.7
82815VCOVER, WIRING HARNESS PROTECTOR, NO.1
82815WCOVER, WIRING HARNESS PROTECTOR, NO.2
82815XCOVER, WIRING HARNESS PROTECTOR, NO.3
82817PROTECTOR, WIRING HARNESS, NO.1
82817APROTECTOR, WIRING HARNESS, NO.2
82817BPROTECTOR, WIRING HARNESS, NO.3
82817CPROTECTOR, WIRING HARNESS, NO.4
82817DPROTECTOR, WIRING HARNESS, NO.5
82817EPROTECTOR, WIRING HARNESS, NO.6
82817FPROTECTOR, WIRING HARNESS, NO.7
82821HCOVER, CONNECTOR
8401
8417
8271247120CLAMP, WIRING HARNESS
8271247330CLAMP, WIRING HARNESS
9010506331
9011906915
9415180600
25 parts on this diagram · 13 diagrams in section
