Toyota PRIUS — REAR DOOR WINDOW REGULATOR & HINGE

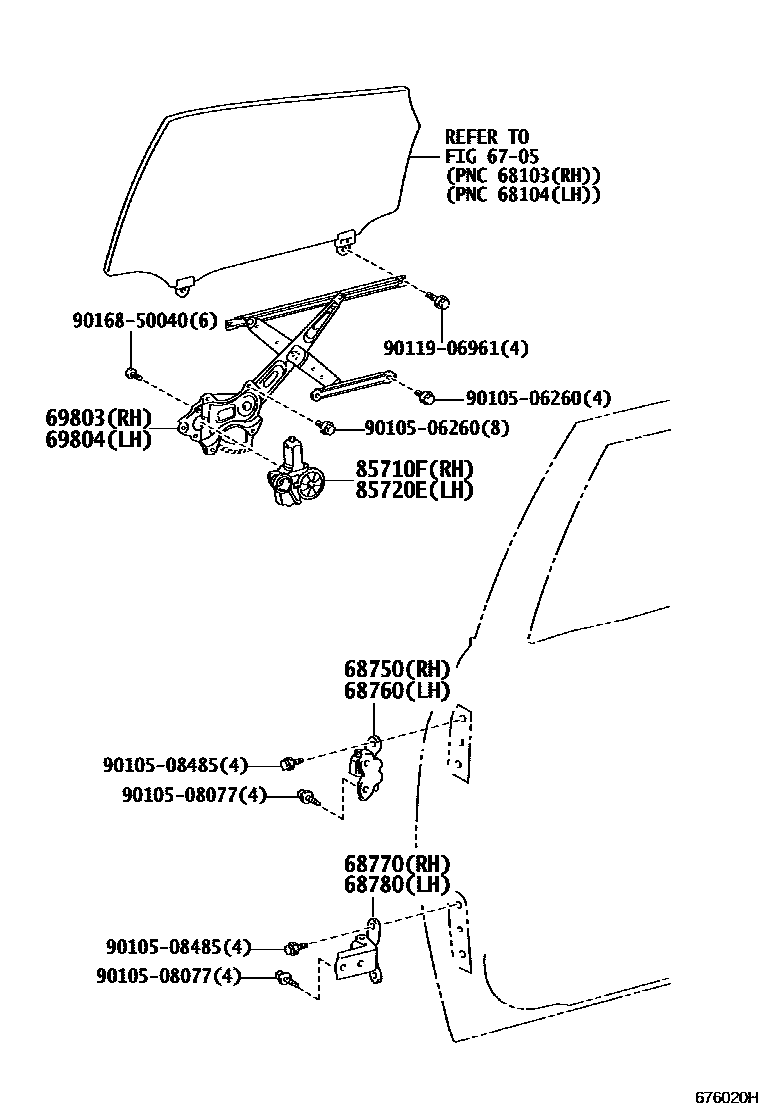

Parts diagram

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20121i¥2,950200904-201112

sub68750-20122¥1,850

main68750-20121i¥2,950201112-201205

sub68750-20122¥1,850

main68750-20122i¥1,850201206-201511

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20121i¥2,950200904-201112

sub68760-20122¥1,850

main68760-20121i¥2,950201112-201205

sub68760-20122¥1,850

main68760-20122i¥1,850201206

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52031i¥1,850200904-201112

main68770-52031i¥1,850201112

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52031i¥1,850200904-201112

main68780-52031i¥1,850201112

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69801-52070i¥6,300200904-201112

main69801-52070i¥6,300201112

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69802-52070i¥6,300200904-201112

main69802-52070i¥6,300201112

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-47080i¥33,300201104-201112

sub85710-47120¥33,300

main85710-47090i¥33,300201112-201208

sub85710-47120¥33,300

main85710-47120i¥33,300201209-201312

sub85710-47130¥33,300

main85710-47130i¥33,300201401

main85710-72020i¥41,100200904-201103

sub85710-47120¥33,300

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-47080i¥33,300201104-201112

sub85720-47120¥33,300

main85720-47090i¥33,300201112-201208

sub85720-47120¥33,300

main85720-47120i¥33,300201209-201312

sub85720-47130¥33,300

main85720-47130i¥33,300201401

main85720-72020i¥41,100200904-201103

sub85720-47120¥33,300

9010506260

main90105-06260¥60

9010508077

main90105-08077¥110

9010508485

main90105-08485¥80

9011906961

main90119-06961¥60

9016850040

main90168-50040¥70

14 parts on this diagram · 1 diagram in section
