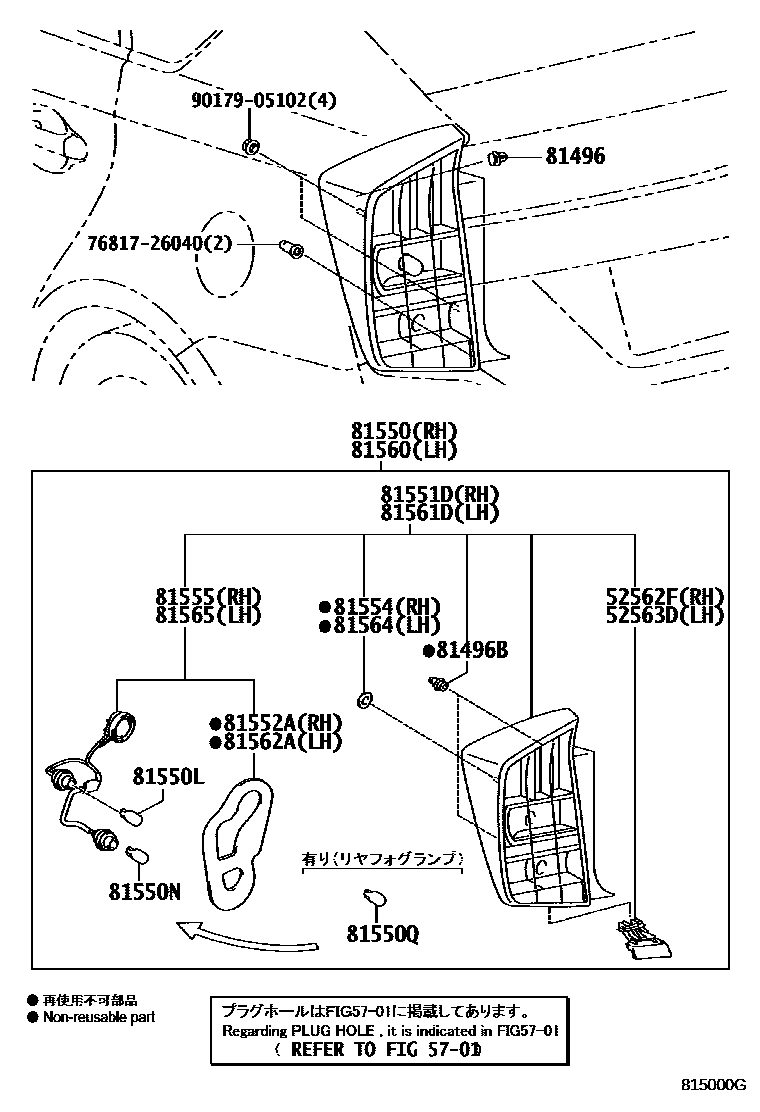

Toyota PRIUS — REAR COMBINATION LAMP
52562FRETAINER, REAR BUMPER, UPPER SIDE
52563DRETAINER, REAR BUMPER, UPPER LH
5701
81496GUIDE, REAR COMBINATION LAMP
81496BGUIDE, REAR LAMP
81550LAMP ASSY, REAR COMBINATION, RH
81550LBULB, REAR TURN SIGNAL LAMP
81550NBULB, BACK UP LAMP
81550QBULB, REAR FOG LAMP, NO.1
81551DLENS & BODY, REAR COMBINATION LAMP, RH
81552AGASKET, REAR COMBINATION LAMP, RH
81554GASKET, REAR COMBINATION LAMP BODY, RH
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81560LAMP ASSY, REAR COMBINATION, LH
81561DLENS & BODY, REAR COMBINATION LAMP, LH
81562AGASKET, REAR COMBINATION LAMP, LH
81564GASKET, REAR COMBINATION LAMP BODY, LH
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
7681726040CLIP, BACK DOOR OUTSIDE GARNISH
9017905102
20 parts on this diagram · 2 diagrams in section
