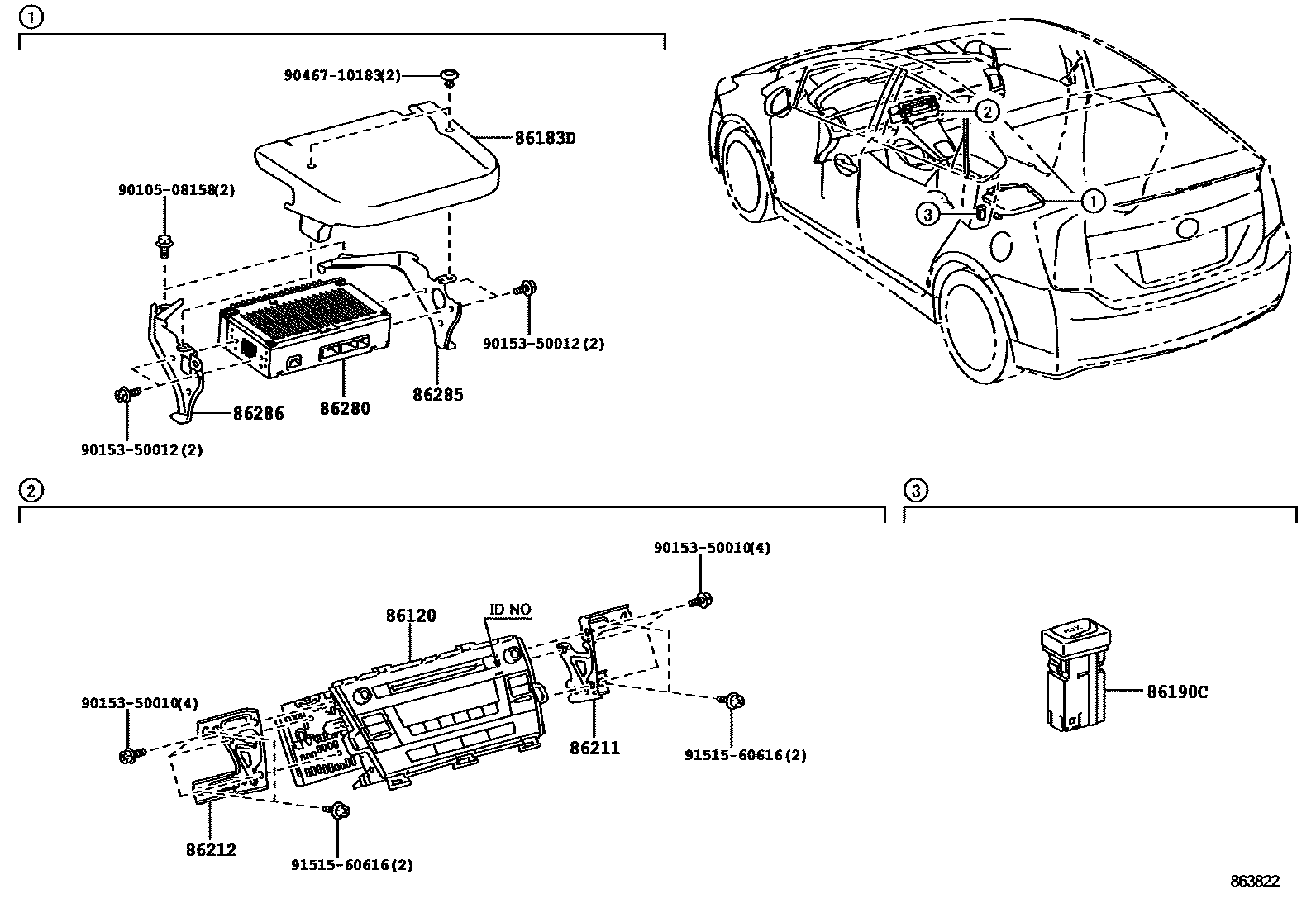

Toyota PRIUS — RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1������

86120RECEIVER ASSY, RADIO

main86120-47360iZVW30..G..CBU¥101,000200904-201112

main86120-47360iZVW30..G..CBU¥101,000200904-201112

main86120-47360iZVW30..G..CBU¥101,000200904-201112

main86120-47360iZVW30..G..CBU¥101,000200904-201112

main86120-47530iZVW30..(G,S)..CBU¥92,300201112

main86120-47530iZVW30..(G,S)..CBU¥92,300201112

main86120-47530iZVW30..(G,S)..CBU¥92,300201112

main86120-47530iZVW30..(G,S)..CBU¥92,300201112

main86120-47530iZVW30..(G,S)..CBU¥92,300201112

main86120-47530iZVW30..(G,S)..CBU¥92,300201112

main86120-47530iZVW30..(G,S)..CBU¥92,300201112

86183DCOVER, AUDIO AMPLIFIER

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-24010iZVW30..(G,S)..CBU¥10,700201112

main86190-48010iZVW30..(G,S)..CBU¥10,700200904-201112

86211BRACKET, RADIO, NO.1

main86211-47050iZVW30..L¥680200904-201112

main86211-47060iZVW30..(G,S)..CBU¥740200904-201112

main86211-47100iZVW30..CBU¥680201112-201511

86212BRACKET, RADIO, NO.2

main86212-47050iZVW30..L¥680200904-201112

main86212-47060iZVW30..(G,S)..CBU¥740200904-201112

main86212-47100iZVW30..CBU¥680201112-201511

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-47030¥113,000

main86280-47080¥288,000

main86280-0WA51¥190,000

86285BRACKET, AMPLIFIER, NO.1

main86285-47030¥1,320

86286BRACKET, AMPLIFIER, NO.2

main86286-47030¥1,460

9010508158

main90105-08158¥100

9015350010

main90153-50010¥70

9015350012

main90153-50012¥80

9046710183

main90467-10183¥110

9151560616

main91515-60616¥70

13 parts on this diagram · 3 diagrams in section
