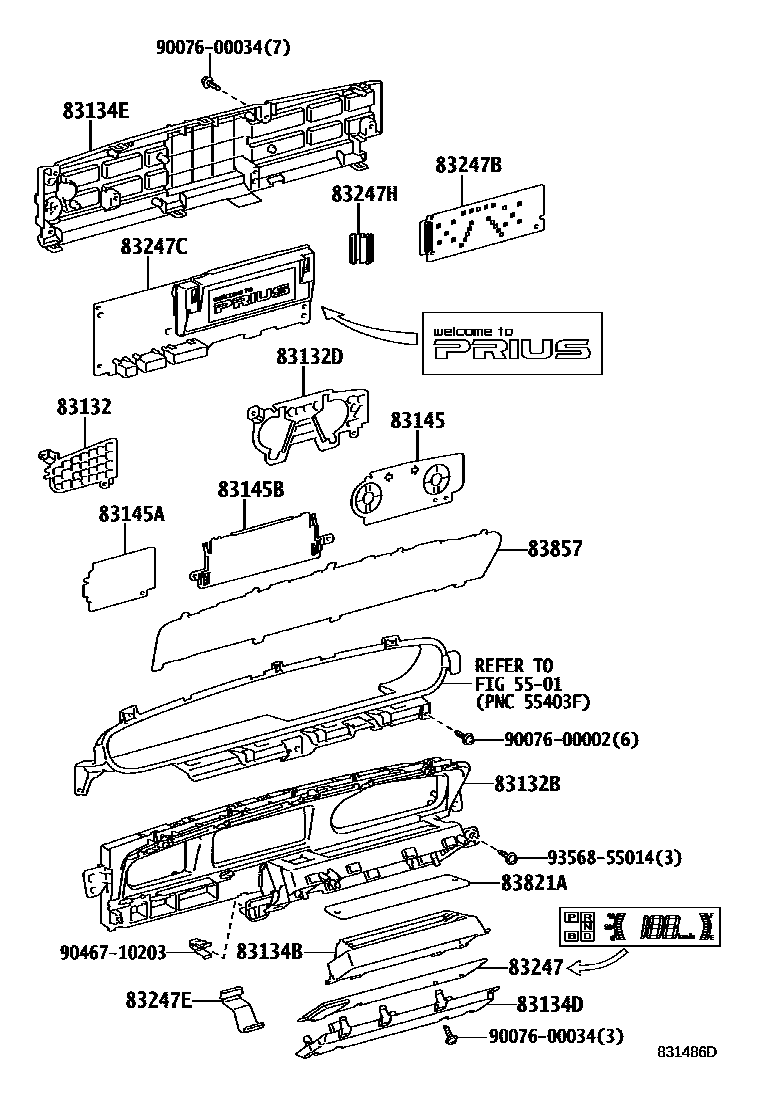

Toyota PRIUS — METER
5501
83132CASE, COMBINATION METER
83132BCASE, COMBINATION METER NO.3
83132DCASE, COMBINATION METER, NO.2
83134BCOVER, COMBINATION METER, NO.2
83134DCOVER, COMBINATION METER, NO.3
83134ECOVER, COMBINATION METER, NO.4
83145LENS, METER, NO.1
83145ALENS, METER, NO.2
83145BLENS, METER, NO.3
83247PLATE, METER CIRCUIT
83247BPLATE, METER CIRCUIT, NO.2
83247CPLATE, MATER CIRCUIT, NO.3
�}�[�N���W�R�W�O�O�|�S�V�c�P�O
�}�[�N���W�R�W�O�O�|�S�V�c�P�P
83247EPLATE, MATER CIRCUIT, NO.4
83247HPLATE, METER CIRCUIT, NO.5
83821ACOVER, COMBINATION METER, NO.1
83857REFLECTOR, COMBINATION METER, NO.1
9007600002
9007600034
9046710203
9356855014
21 parts on this diagram · 2 diagrams in section
