Toyota PRIUS — INVERTER COOLING

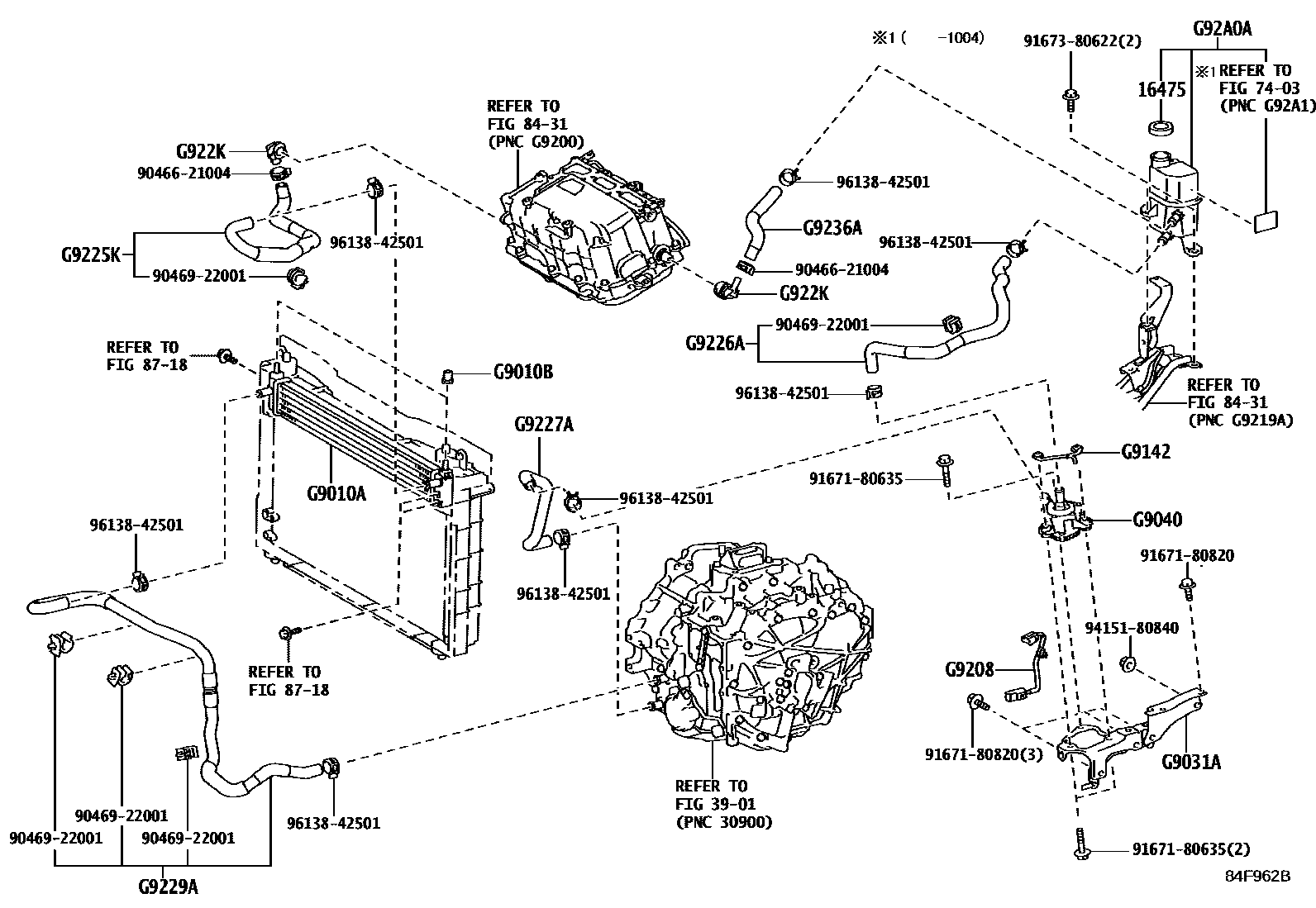

Parts diagram
16475CAP, RESERVE TANK
main16475-37010i¥1,200201111-201112
sub16475-28140¥1,200
main16475-37010i¥1,200201112-201409
sub16475-28140¥1,200
main16475-37011i¥1,200201410
sub16475-28140¥1,200
main16475-51010i¥1,100200904-201110
sub16475-28140¥1,200
3901
7403
8431
8718
G9010ARADIATOR ASSY
mainG901047030i200904-201002
subG9010-47031¥42,800
mainG901047031i201003-201112
subG9010-47032¥42,800
mainG901047031i201112-201504
subG9010-47032¥42,800
mainG901047032i201505-201511
G9010BCUSHION, INVERTER RADIATOR
main16716-37010i¥220200904-201112
main16716-37010i¥220201112-201511
G9031ABRACKET SUB-ASSY, HV WATER PUMP
mainG903147010i200904-201112
mainG903147010i201112
G9040INVERTER WATER PUMP ASSY(W/MOTOR)
mainG904047090i201103-201112
mainG904048020i200904-201102
subG9040-47090¥37,000
mainG904052010i201112
G9142BRACKET, HYBRID WATER PUMP, NO.2
mainG914247010i200904-201112
mainG914247010i201112
G9208WIRE SUB-ASSY, INVERTER
mainG920847080i200904-201112
mainG920847080i201112
G9225KHOSE, INVERTER COOLING, NO.1
mainG922547021i200904-201112
mainG922547021i201112
G9226AHOSE, INVERTER COOLING, NO.2
mainG922647020i200904-201112
mainG922647020i201112
G9227AHOSE, INVERTER COOLING, NO.3
mainG922747020i200904-201112
mainG922747020i201112-201511
G9229AHOSE, INVERTER COOLING, NO.5
mainG922947020i200904-201112
mainG922947020i201112-201511
G922KCONNECTOR, HYBRID WATER HOSE
mainG922K47011i200904-201112
mainG922K47011i201112
G9236AHOSE, INVERTER COOLING, NO.6
mainG923647031i200904-201112
mainG923647031i201112
G92A0ATANK ASSY, INVERTER RESERVE
mainG92A047010i200904-201112
subG92A0-47011¥8,100
mainG92A047010i201112-201409
subG92A0-47011¥8,100
mainG92A047011i201410
9046621004
main90466-21004¥240
9046922001
main90469-22001¥180
9167180635
main91671-80635¥80
9167180820
main91671-80820¥80
9167380622
main91673-80622¥60
9415180840
main94151-80840¥80
9613842501
main96138-42501¥180

25 parts on this diagram · 1 diagram in section
