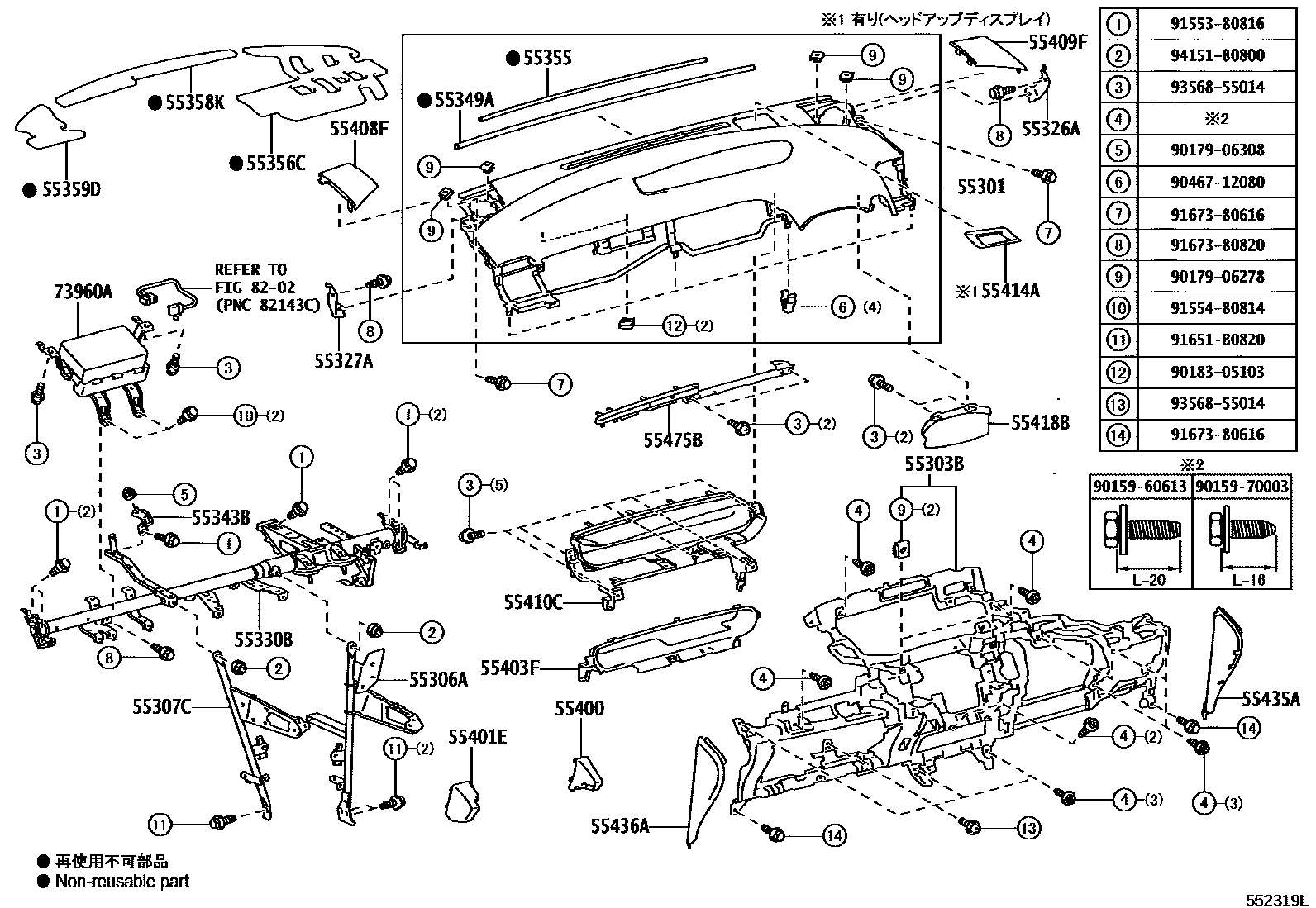

Toyota PRIUS — INSTRUMENT PANEL & GLOVE COMPARTMENT
55301PANEL SUB-ASSY, INSTRUMENT
BLACK,TRIM1#,2#,4#,6#
BLACK,TRIM1#,2#,6#
BLACK,TRIM1#,2#
55303BPANEL SUB-ASSY, INSTRUMENT, LOWER
MD.GRAY,TRIM1#
BLACK,TRIM1#,2#
BLACK,TRIM2#
GREGE,TRIM4#
AQUA,TRIM6#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55326ASTAY, INSTRUMENT PANEL, NO.1
55327ASTAY, INSTRUMENT PANEL, NO.2
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER
55349ACUSHION, INSTRUMENT PANEL
55355CUSHION, INSTRUMENT PANEL, NO.1
55356CCUSHION, INSTRUMENT PANEL, NO.2
55358KCUSHION, INSTRUMENT PANEL, NO.4
55359DCUSHION, INSTRUMENT PANEL, NO.5
55400PAD ASSY, INSTRUMENT PANEL SAFETY
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
55403FPANEL SUB-ASSY, INSTRUMENT PANEL FINISH
55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2
55410CPANEL ASSY, INSTRUMENT CLUSTER FINISH
55414APANEL, INSTRUMENT CLUSTER FINISH, END
55418BSPACER,METER HOOD
55435APANEL, INSTRUMENT PANEL FINISH, END RH
55436APANEL, INSTRUMENT PANEL FINISH, END LH
55475BGARNISH, INSTRUMENT CLUSTER FINISH PANEL, CENTER
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
8202
9015960613
9015970003
9017906278
9017906308
9018305103
9046712080
9155380816
9155480814
91651B0820
9167380616
9167380820
9356855014
9415180800
39 parts on this diagram · 5 diagrams in section
