Toyota PRIUS — IGNITION COIL & SPARK PLUG / GLOW PLUG

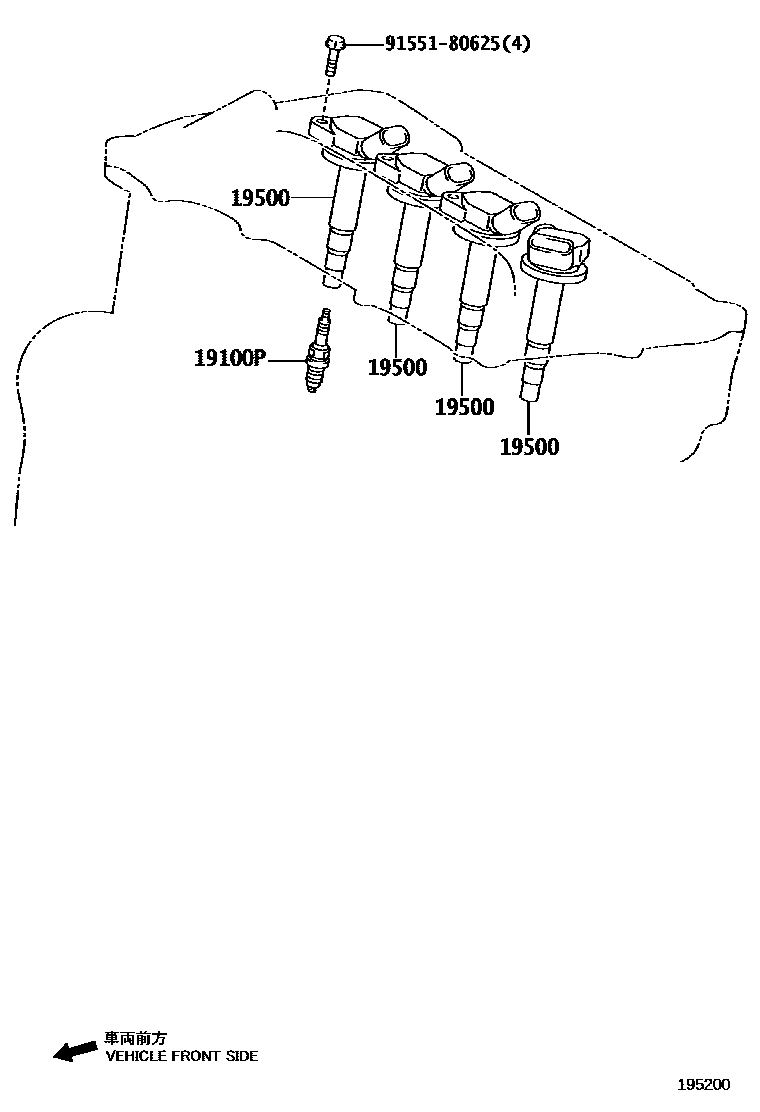

Parts diagram

19100PPLUG, SPARK

main90919-01253i¥2,000200904-201112

�r�b�Q�O�g�q�P�P

sub90919-01275¥2,000

main90919-01253i¥2,000201112-201503

�r�b�Q�O�g�q�P�P

sub90919-01275¥2,000

main90919-01275i¥2,000201504-201511

�r�b�P�U�g�q�P�P

19500COIL ASSY, IGNITION

main90919-02258i¥7,500200904-201112

main90919-02258i¥7,500201112

9155180625

main91551-80625¥60

3 parts on this diagram · 1 diagram in section
