Toyota PRIUS — HOOD LOCK & HINGE

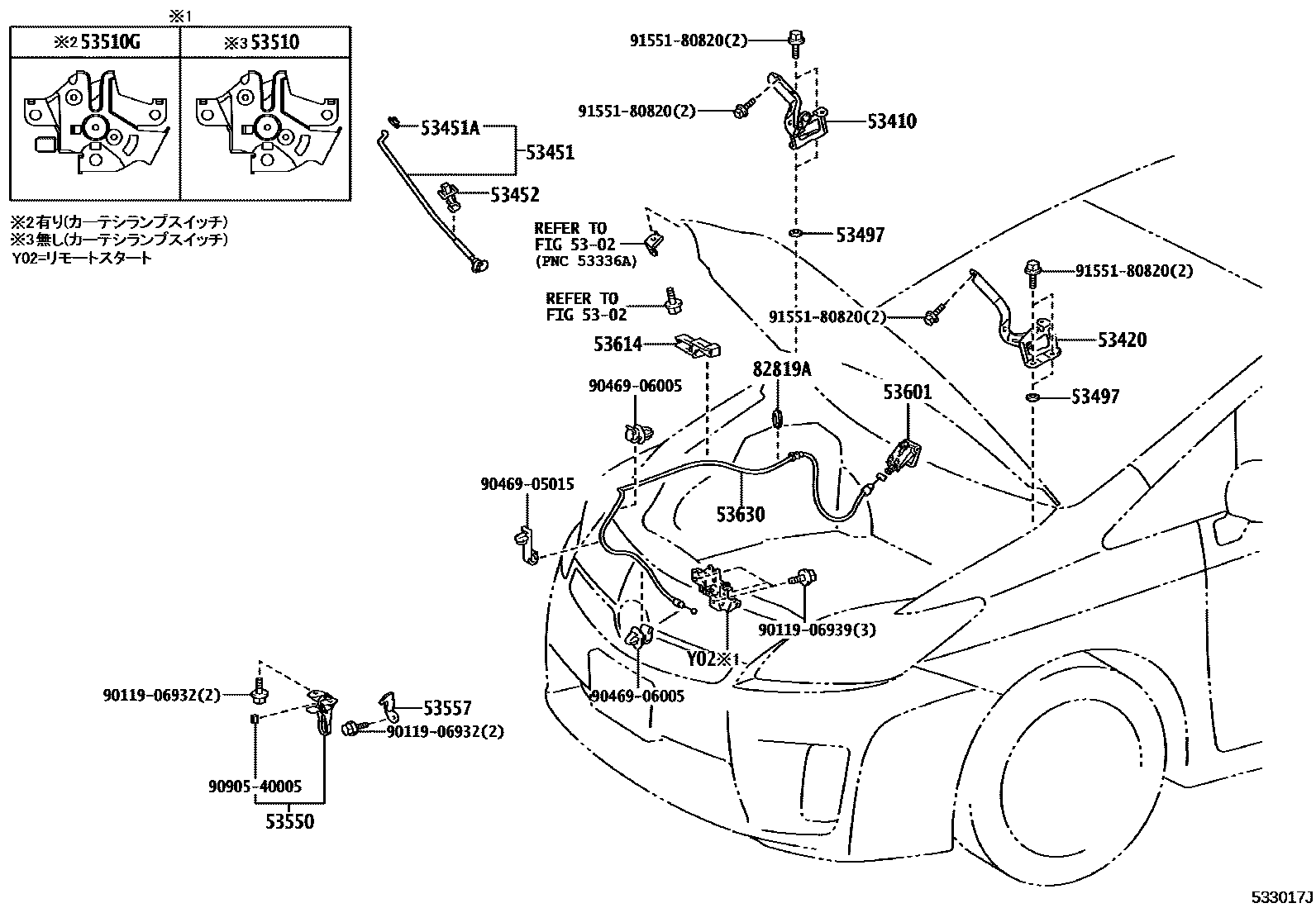

Parts diagram

5302

53410HINGE ASSY, HOOD, RH

main53410-47070i¥2,510200904-201112

53420HINGE ASSY, HOOD, LH

main53420-47070i¥2,510200904-201112

53451ROD, HOOD SUPPORT

main53440-47030i¥1,490200904-200907

sub53440-47031¥1,490

main53440-47031i¥1,490200908-201112

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15025i¥220200904-201112

53452HOLDER, HOOD STAY

main53452-47010i¥450200904-201112

53497PAD, HOOD HINGE, NO.1

main53497-20070i¥140200904-201112

main53497-42010i¥100200904-201112

53510LOCK ASSY, HOOD

main53510-47090i¥3,200200904-201105

sub53510-47091¥3,200

main53510-47091i¥3,200201106-201206

sub53510-47092¥3,200

main53510-47092i¥3,200201207-201511

53510GLOCK ASSY, HOOD, W/COURTESY LAMP SWITCH

53550HOOK ASSY, HOOD AUXILIARY CATCH

main53550-47010i¥3,560200904-201102

sub53550-47011¥3,560

main53550-47011i¥3,560201103-201112

53557CATCH, HOOD AUXILIARY HOOK

main53557-47010i¥350200904-201112

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-B6i200904-201112

MD.GRAY,TRIM1#

sub53601-52010¥2,230

main53601-52010-C0i201112-201511

BLACK,TRIM1#,2#

sub53601-52010¥2,230

main53601-52010-C0i201112-201511

BLACK,TRIM2#

sub53601-52010¥2,230

main53601-52010-E4i201210-201511

GREGE,TRIM4#

sub53601-52010¥2,230

main53601-52010-G1i200904-201511

AQUA,TRIM6#

sub53601-52010¥2,230

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-47020i¥200200904-200907

main53614-47030i¥210200908-201112

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-47050i¥1,590200904-201112

82819AGROMMET, WIRE

main82817-1A810i¥220200904-201112

main82817-47G30i¥260200909-201101

9011906932

main90119-06932¥60

9011906939

main90119-06939¥60

9046905015

main90469-05015¥140

9046906005

main90469-06005¥80

9090540005

main90905-40005¥180

9155180820

main91551-80820¥80

21 parts on this diagram · 1 diagram in section
