Toyota PRIUS — HEV INVERTER

0001 1������ASSY 0002 1KIT���� 0003 1

8202

86210GFUSE, HIGH VOLTAGE

main90982-11050iZVW30..CBU¥1,710200904-201511

G9140ACOVER ASSY, INVERTER, LH

mainG914047010iZVW30..CBU201210

G9200INVERTER ASSY, W/CONVERTER

mainG920049025iZVW30..CBU201203-201401

mainG920049065iZVW30..CBU201401-201403

subG9200-49075¥409,000

mainG920049075iZVW30..CBU201404-201511

mainG92A047030iZVW30..CBU200904-201107

subG92A0-47031¥409,000

mainG92A047031iZVW30..CBU201108-201112

subG9200-49015¥409,000

mainG92A047040iZVW30..CBU201112-201203

subG9200-49025¥341,000

G9208AWIRE SUB-ASSY, INVERTER

mainG920847090iZVW30..CBU200904-201511

G920HCOMPUTER SUB-ASSY, MOTOR GENERATOR CONTROL

mainG920H47030iZVW30..CBU200904-201511

subG920H-47150¥15,800

G920JSENSOR SUB-ASSY, INVERTER CURRENT

mainG920J52010iZVW30..CBU200904-201511

G9214BRACKET, INVERTER, NO.1

mainG921447050iZVW30..CBU200904-201308

subG9214-47060¥770

mainG921447060iZVW30..CBU201309

G9219ABRACKET, INVERTER TRAY

mainG911047010iZVW30..CBU200904-200910

subG9110-47011¥9,000

mainG911047011iZVW30..CBU200911-201309

subG9110-47030¥6,200

mainG911047030iZVW30..CBU201310-201511

G9221COVER, INVERTER

mainG902247041iZVW30..CBU200904-201112

G922LCOVER, INVERTER SIGNAL CONNECTOR

mainG922L47010iZVW30..CBU200904-201511

9010506331

main90105-06331¥70

9011908C92

main90119-08C92¥100

9015930031

main90159-30031¥60

9167380622

main91673-80622¥60

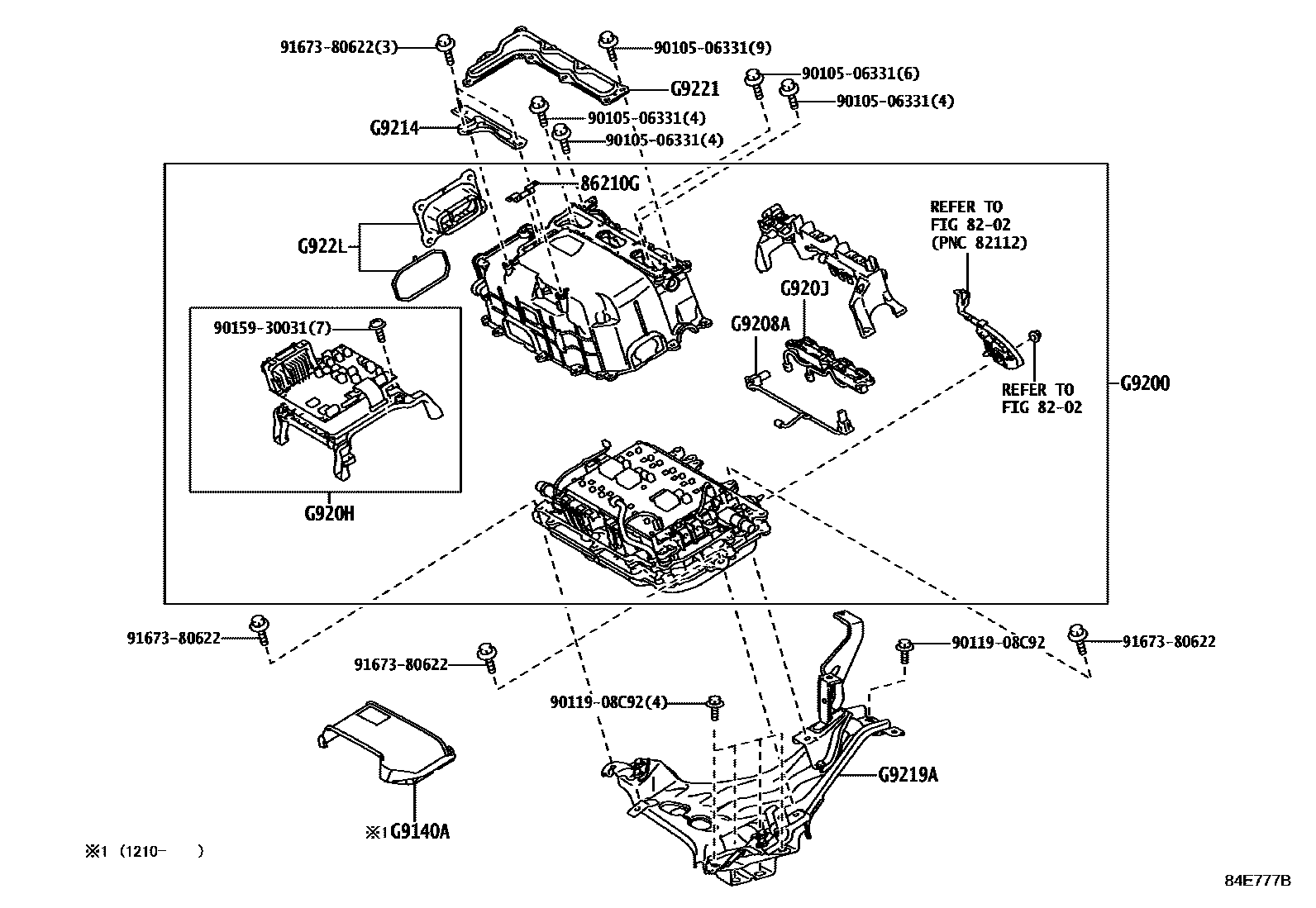

15 parts on this diagram · 3 diagrams in section
