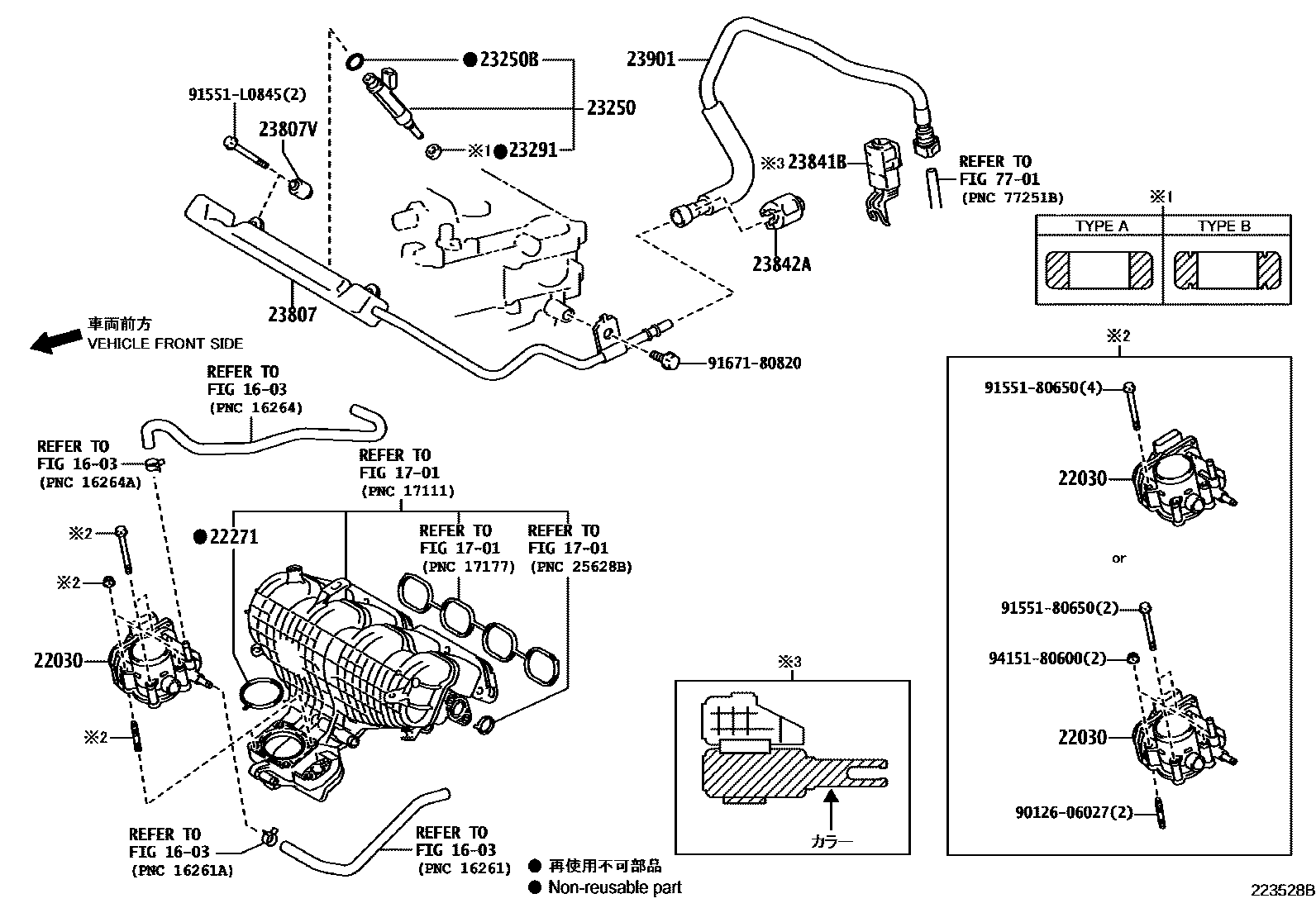

Toyota PRIUS — FUEL INJECTION SYSTEM
1603
1701
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23291INSULATOR, INJECTOR VIBRATION
�s�x�o�d�@�`�F�C���X�g�Q��
�s�x�o�d�@�`�F�C���X�g�Q��
�s�x�o�d�@�a�F�C���X�g�Q��
�s�x�o�d�@�a�F�C���X�g�Q��
23807PIPE SUB-ASSY, FUEL DELIVERY
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
�J���[�F�O���C
�J���[�F�u���b�N
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23901TUBE SUB-ASSY, FUEL
7701
9012606027
9155180650
91551L0845
9167180820
9415180600
18 parts on this diagram · 1 diagram in section
