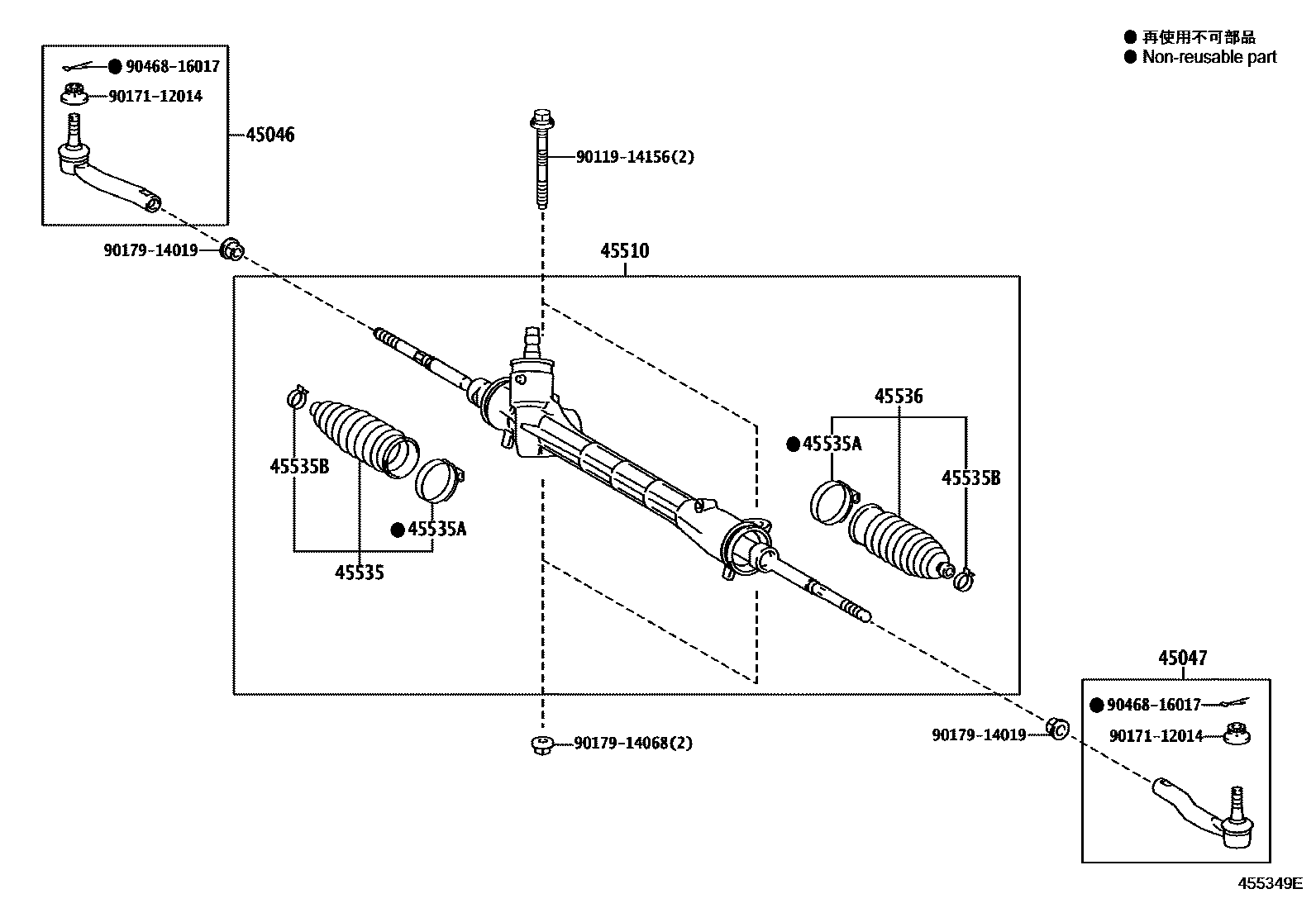

Toyota PRIUS — FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-49225iZVW30..CBU¥3,090200904-201112

45047END SUB-ASSY, TIE ROD, LH

main45047-49165iZVW30..CBU¥3,090200904-201112

45510GEAR ASSY, STEERING

main45510-47060iZVW30..CBU¥47,300200904-201304

sub45510-47061¥47,300

main45510-47061iZVW30..CBU¥47,300201305

45535BOOT, STEERING RACK, NO.1

main45535-49015iZVW30..CBU¥1,160200904-201112

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-47010iZVW30..CBU¥270200904-201112

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021iZVW30..CBU¥180200904-201112

45536BOOT, STEERING RACK, NO.2

main45535-49015iZVW30..CBU¥1,160200904-201112

9011914156

main90119-14156¥480

9017112014

main90171-12014¥190

9017914019

main90179-14019¥130

9017914068

main90179-14068¥120

9046816017

main90468-16017¥90

12 parts on this diagram · 1 diagram in section
