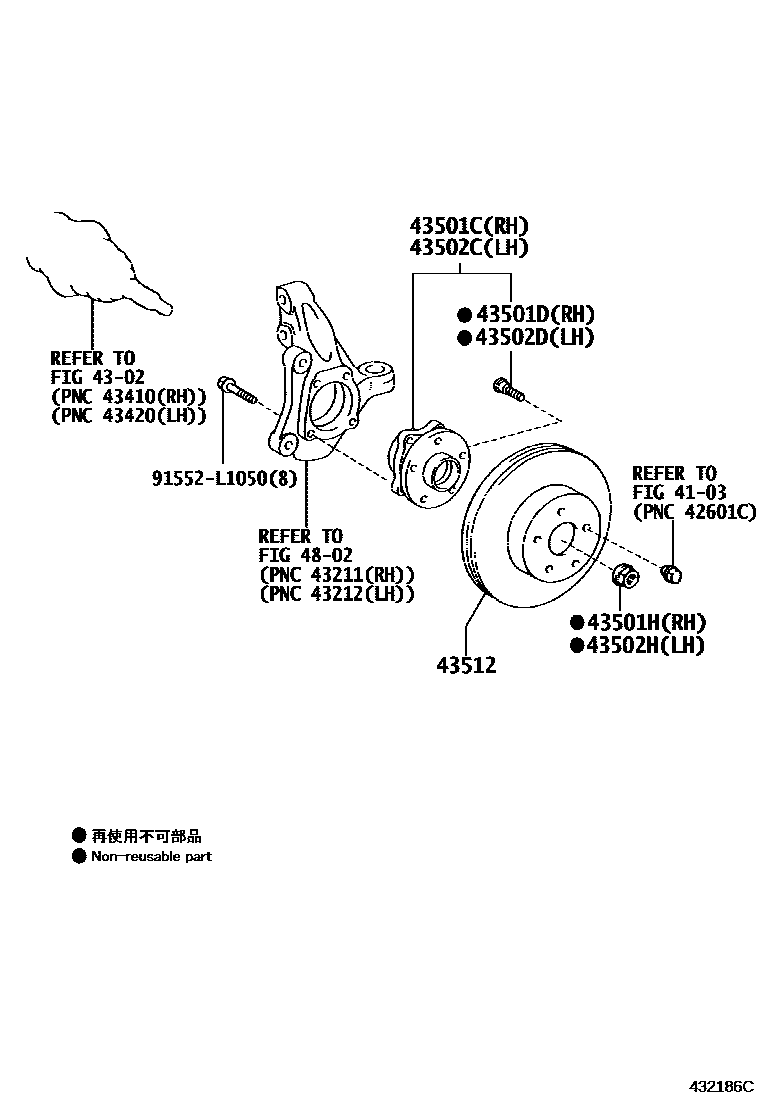

Toyota PRIUS — FRONT AXLE HUB

4103

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-47010iZVW30..CBU¥21,700200904-201206

sub43550-47011¥15,100

main43550-47011iZVW30..CBU¥15,100201207-201511

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iZVW30..CBU¥240200904-201112

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iZVW30..CBU¥220200904-201112

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-47010iZVW30..CBU¥21,700200904-201206

sub43550-47011¥15,100

main43550-47011iZVW30..CBU¥15,100201207

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iZVW30..CBU¥240200904-201112

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iZVW30..CBU¥220200904-201112

43512DISC, FRONT

main43512-47040iZVW30..CBU¥8,900200904-201511

4802

91552L1050

main91552-L1050¥180

11 parts on this diagram · 1 diagram in section
