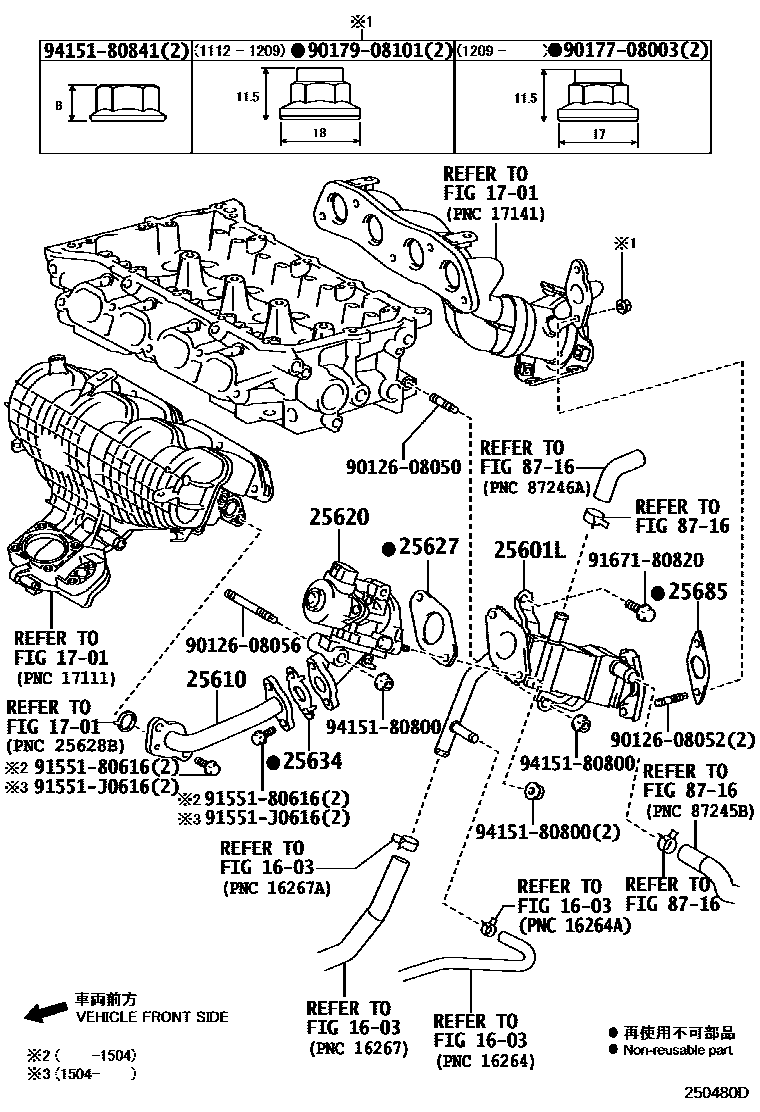

Toyota PRIUS — EXHAUST GAS RECIRCULATION SYSTEM

1603

1701

25601LPIPE SUB-ASSY, EGR W/COOLER

main25601-37010i2ZRFXE..ZVW30..CBU¥15,700200904-201511

25610PIPE ASSY, EGR

main25610-37011i2ZRFXE..ZVW30..CBU¥4,330200904-201501

sub25610-37012¥3,010

sub25634-37030¥310

main25610-37012i2ZRFXE..ZVW30..CBU¥3,010201502-201511

25620VALVE ASSY, EGR

main25620-37110i2ZRFXE..ZVW30..CBU¥29,200200904-201206

sub25620-37120¥20,200

main25620-37120i2ZRFXE..ZVW30..CBU¥20,200201206

25627GASKET, EGR VALVE

main25627-37010i2ZRFXE..ZVW30..CBU¥310200904-201112

25634GASKET, EGR PIPE

main25634-37010i2ZRFXE..ZVW30..CBU¥450200904-201501

sub25634-37030¥310

main25634-37030i2ZRFXE..ZVW30..CBU¥310201502

25685GASKET, EGR COOLER, NO.1

main25685-37010i2ZRFXE..ZVW30..CBU¥210200904-201112

8716

9012608050

main90126-08050¥80

9012608052

main90126-08052¥80

9012608056

main90126-08056¥120

9017708003

main90177-08003¥80

9017908101

main90179-08101¥90

9155180616

main91551-80616¥60

91551J0616

main91551-J0616¥60

9167180820

main91671-80820¥80

9415180800

main94151-80800¥80

9415180841

main94151-80841¥80

19 parts on this diagram · 1 diagram in section
