Toyota PRIUS — ENGINE OVERHAUL GASKET KIT

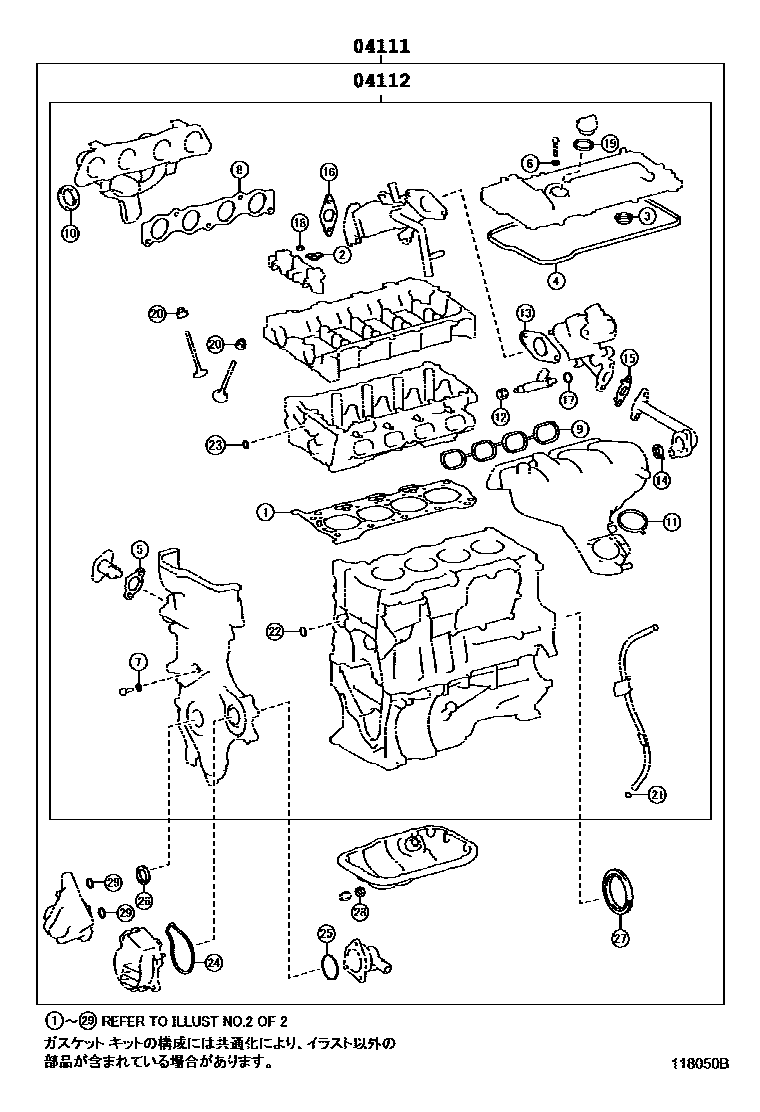

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-37310i¥31,700200904-201110

sub04111-37312¥31,700

main04111-37312i¥31,700201110-201202

sub04111-37313¥31,700

main04111-37313i¥31,700201203-201408

sub04111-37314¥31,700

main04111-37314i¥31,700201408-201502

sub04111-37315¥22,000

main04111-37315i¥22,000201502

sub04111-37316¥22,000

04112GASKET KIT, ENGINE VALVE GRIND

main04112-37250i¥26,800200904-201110

sub04112-37251¥26,800

main04112-37251i¥26,800201110-201202

sub04112-37252¥26,800

main04112-37252i¥26,800201203-201502

sub04112-37253¥18,500

main04112-37253i¥18,500201502

sub04112-37254¥18,500

2 parts on this diagram · 2 diagrams in section
