Toyota PRIUS — BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-47010iZVW30..CBU¥2,170200904-201112

sub68810-47011¥2,190

68820CHINGE ASSY, BACK DOOR, LH

main68810-47010iZVW30..CBU¥2,170200904-201112

sub68810-47011¥2,190

68838PAD, BACK DOOR HINGE, NO.1

main68838-32010iZVW30..CBU¥80200904-201112

main68838-44020iZVW30..CBU¥160200904-201112

main68838-52020iZVW30..CBU¥200200904-201112

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-47010iZVW30..CBU¥520200904-201112

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68945-47010iZVW30..CBU¥520200904-201112

68950CSTAY ASSY, BACK DOOR, RH

main68950-0W520iZVW30..CBU¥9,300200904-201112

68960STAY ASSY, BACK DOOR, LH

main68960-0W330iZVW30..CBU¥9,300200904-201112

68961BOLT, BACK DOOR STAY

main68961-20140iZVW30..CBU¥280200904-201112

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-47020iZVW30..CBU¥14,100200904-201112

sub69350-47040¥14,100

main69350-47030iZVW30..CBU¥14,100201112-201208

sub69350-47031¥14,100

main69350-47040iZVW30..CBU¥14,100201209

sub69350-47041¥11,700

69415ECOVER, BACK DOOR LOCK STRIKER

main69415-47020iZVW30..CBU¥450200904-201112

69430CSTRIKER ASSY, BACK DOOR LOCK

main69431-47010iZVW30..CBU¥1,530200904-201112

9010506184

main90105-06184¥70

9010506204

main90105-06204¥120

9011908061

main90119-08061¥70

9014880027

main90148-80027¥450

9014880066

main90148-80066¥60

9017908096

main90179-08096¥110

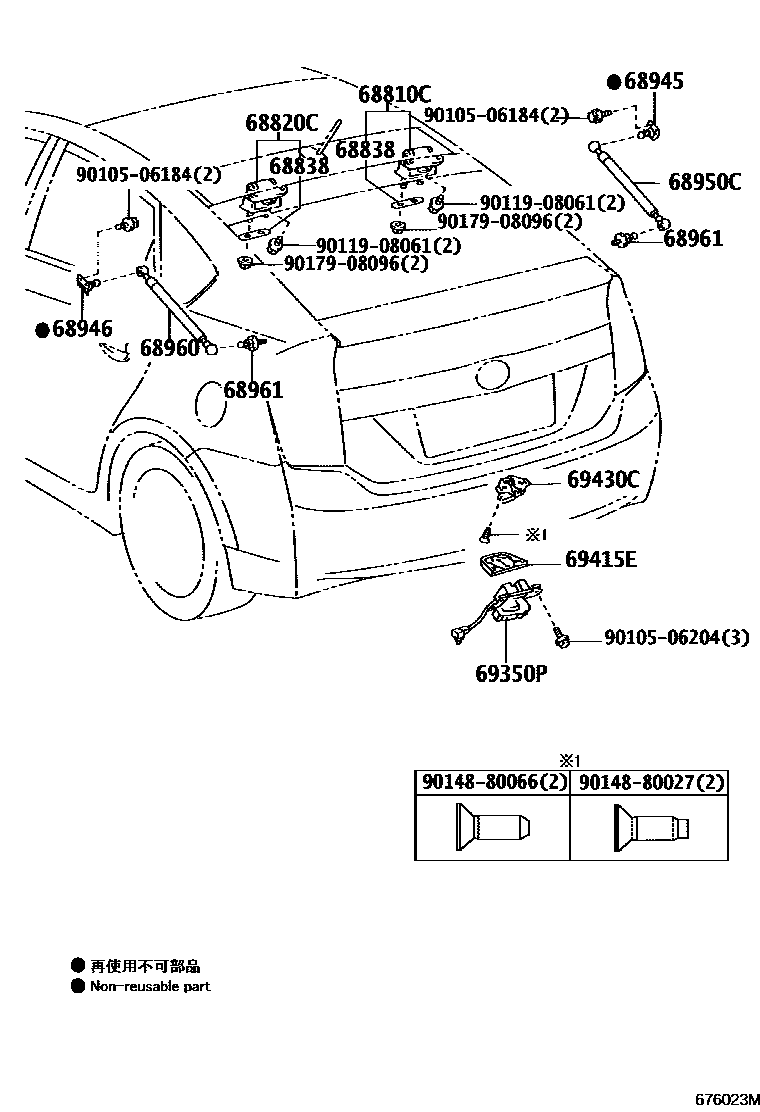

17 parts on this diagram · 1 diagram in section
