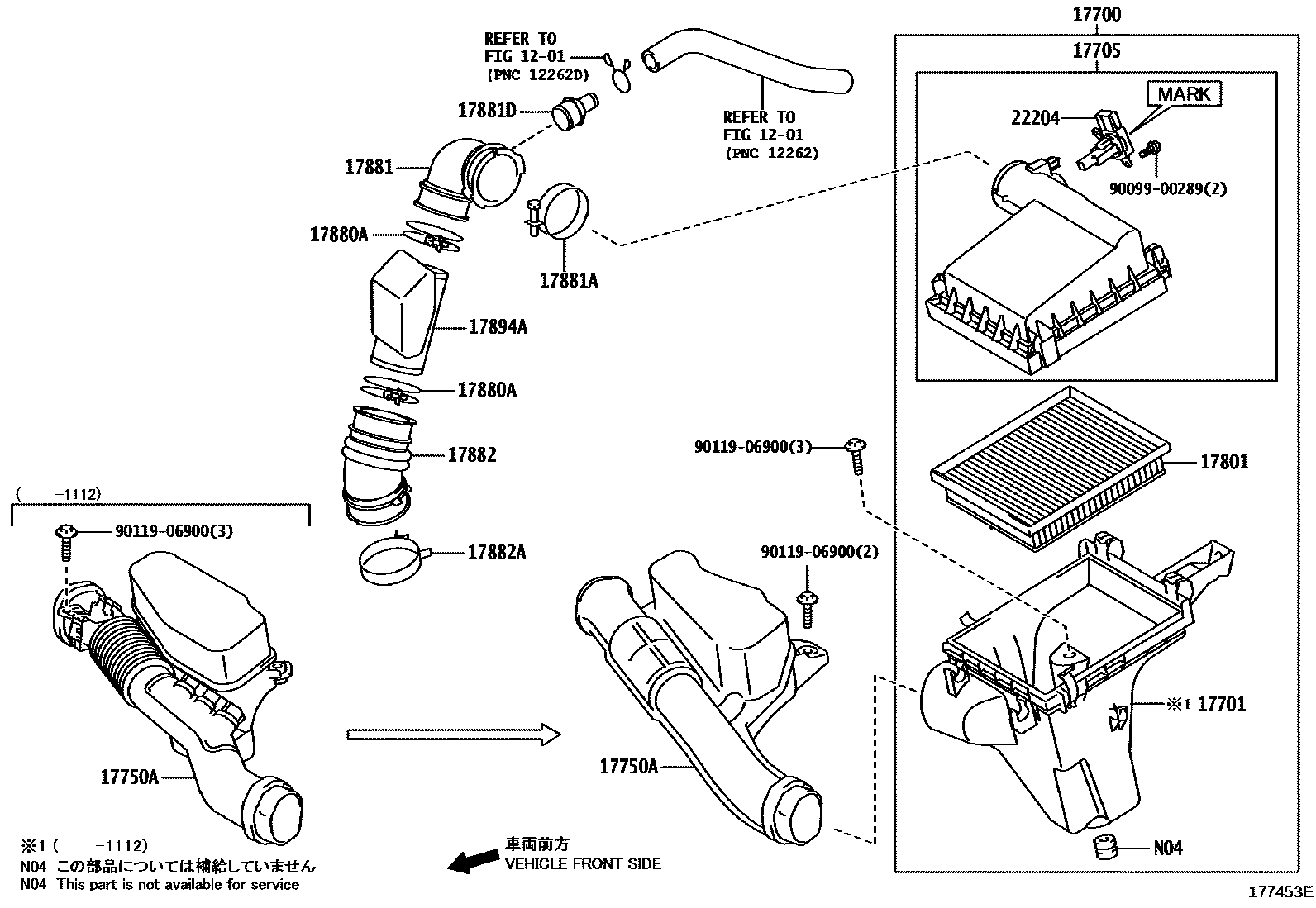

Toyota PRIUS — AIR CLEANER

1201

17700CLEANER ASSY, AIR

main17700-37250i2ZRFXE..ZVW30..CBU¥25,000200904-201103

sub17700-37251¥25,000

main17700-37251i2ZRFXE..ZVW30..CBU¥25,000201104-201107

sub17700-37252¥17,300

main17700-37252i2ZRFXE..ZVW30..CBU¥17,300201107-201112

17701CASE SUB-ASSY, AIR CLEANER

main17701-37170i2ZRFXE..ZVW30..CBU200904-201112

17705CAP SUB-ASSY, AIR CLEANER

main17705-37120i2ZRFXE..ZVW30..CBU¥0200904-201103

sub17705-37121

main17705-37121i2ZRFXE..ZVW30..CBU201104-201112

17750AINLET ASSY, AIR CLEANER

main17750-37010i2ZRFXE..ZVW30..CBU¥14,500200904-201112

main17750-37060i2ZRFXE..ZVW30..CBU¥12,600201112-201505

sub17750-37070¥8,700

main17750-37070i2ZRFXE..ZVW30..CBU¥8,700201505

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-37020i2ZRFXE..ZVW30..CBU¥2,700200904-201107

sub17801-37021¥2,700

main17801-37021i2ZRFXE..ZVW30..CBU¥2,700201107-201112

17880ACLAMP, HOSE

main96111-10750i2ZRFXE..ZVW30..CBU¥190200904-201112

17881HOSE, AIR CLEANER, NO.1

main17881-37120i2ZRFXE..ZVW30..CBU¥1,150200904-201112

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10650i2ZRFXE..ZVW30..CBU¥240200904-201112

17881DTUBE, UNION(FOG AIR CLEANER HOSE)

main90904-06008i2ZRFXE..ZVW30..CBU¥340200904-201112

17882HOSE, AIR CLEANER, NO.2

main17882-37040i2ZRFXE..ZVW30..CBU¥1,150200904-201112

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-62002i2ZRFXE..ZVW30..CBU¥320200904-201112

17894ARESONATOR, INTAKE AIR, NO.2

main17894-37010i2ZRFXE..ZVW30..CBU¥2,620200904-201112

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0T040i2ZRFXE..ZVW30..CBU¥16,500201104-201112

sub22204-28010¥12,400

main22204-0V010i2ZRFXE..ZVW30..CBU¥16,500201104-201112

main22204-0V020i2ZRFXE..ZVW30..CBU¥16,500201104-201112

main22204-28010i2ZRFXE..ZVW30..CBU¥12,400201104-201112

main22204-37010i2ZRFXE..ZVW30..CBU¥19,800200904-201103

sub22204-28010¥12,400

9009900289

main90099-00289¥60

9011906900

main90119-06900¥80

16 parts on this diagram · 1 diagram in section
