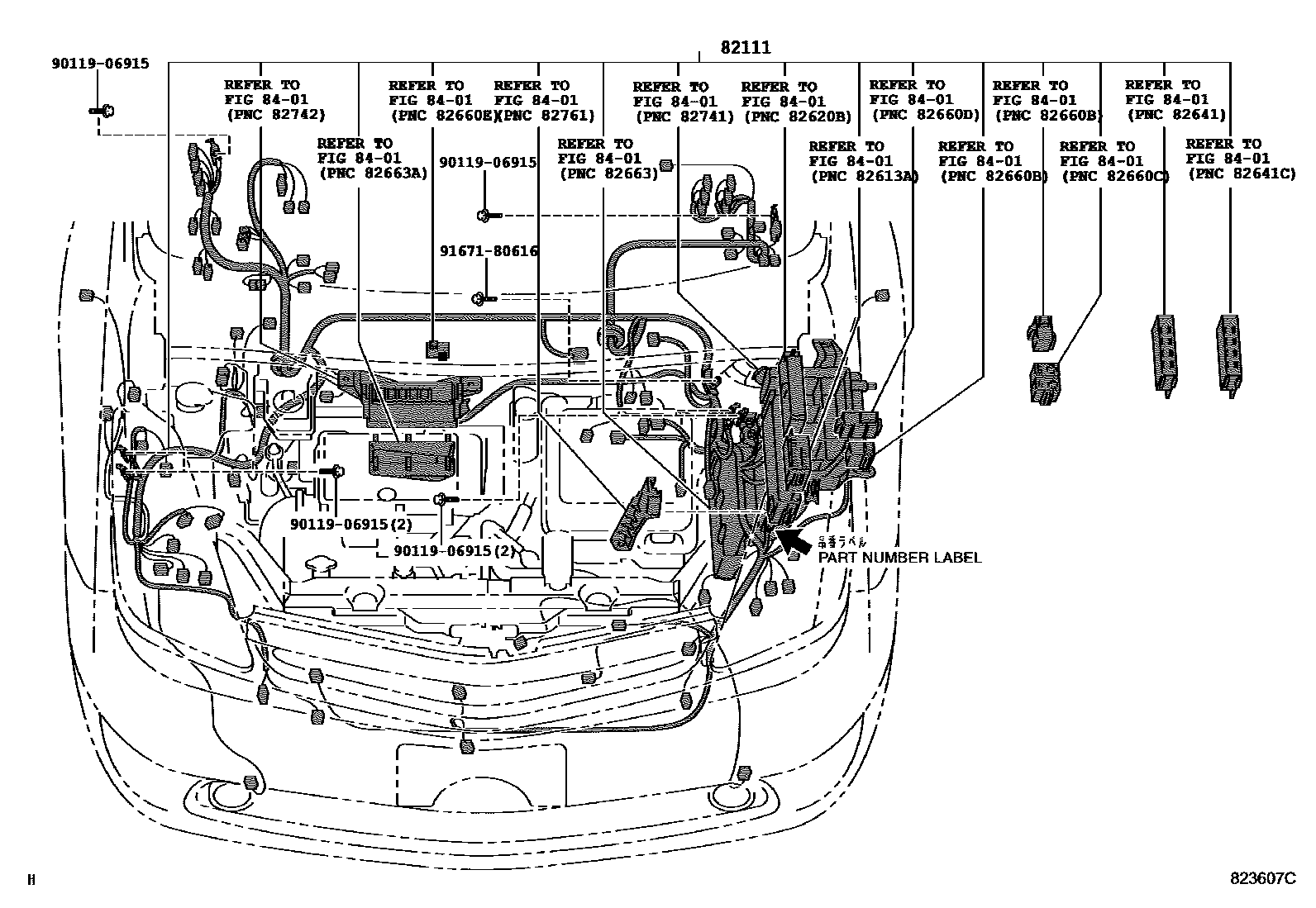

82111WIRE, ENGINE ROOM MAIN

main82111-47150iNHW20..RHD..EUR¥203,000200308-200405

SINGAPORE SPEC

main82111-47150iNHW20..ARL¥203,000200308-200405

HONG KONG SPEC

main82111-47151iNHW20..RHD..EUR¥203,000200405-200511

HONG KONG SPEC

main82111-47151iNHW20..ARL¥203,000200405-200511

SINGAPORE SPEC

main82111-47160iNHW20..RHD..EUR¥223,000200308-200405

main82111-47161iNHW20..RHD..EUR¥203,000200405-200511

main82111-47170iNHW20..LHD¥223,000200308-200405

main82111-47171iNHW20..LHD¥203,000200405-200511

main82111-47180iNHW20..LHD¥239,000200308-200405

COLD SPEC(EU RANK-S)

main82111-47181iNHW20..LHD¥223,000200405-200511

COLD SPEC(EU RANK-S)

main82111-47260iNHW20..ARL200511-200808

HONG KONG SPEC

main82111-47260iNHW20..RHD..EUR200511-200808

SINGAPORE SPEC

main82111-47261iNHW20..ARL200808-200903

HONG KONG SPEC

main82111-47261iNHW20..ARL200808-200903

SINGAPORE SPEC

main82111-47270iNHW20..RHD..EUR200511-200808

main82111-47271iNHW20..RHD..EUR200808-200903

main82111-47280iNHW20..LHD200511-200808

main82111-47281iNHW20..LHD200808-200903

main82111-47290iNHW20..LHD200511-200808

COLD SPEC(EU RANK-S)

main82111-47291iNHW20..LHD200808-200903

COLD SPEC(EU RANK-S)

8401

9011906915

main90119-06915¥60

9167180616

main91671-80616¥60

4 parts on this diagram · 13 diagrams in section
