Toyota PRIUS — STEERING COLUMN & SHAFT

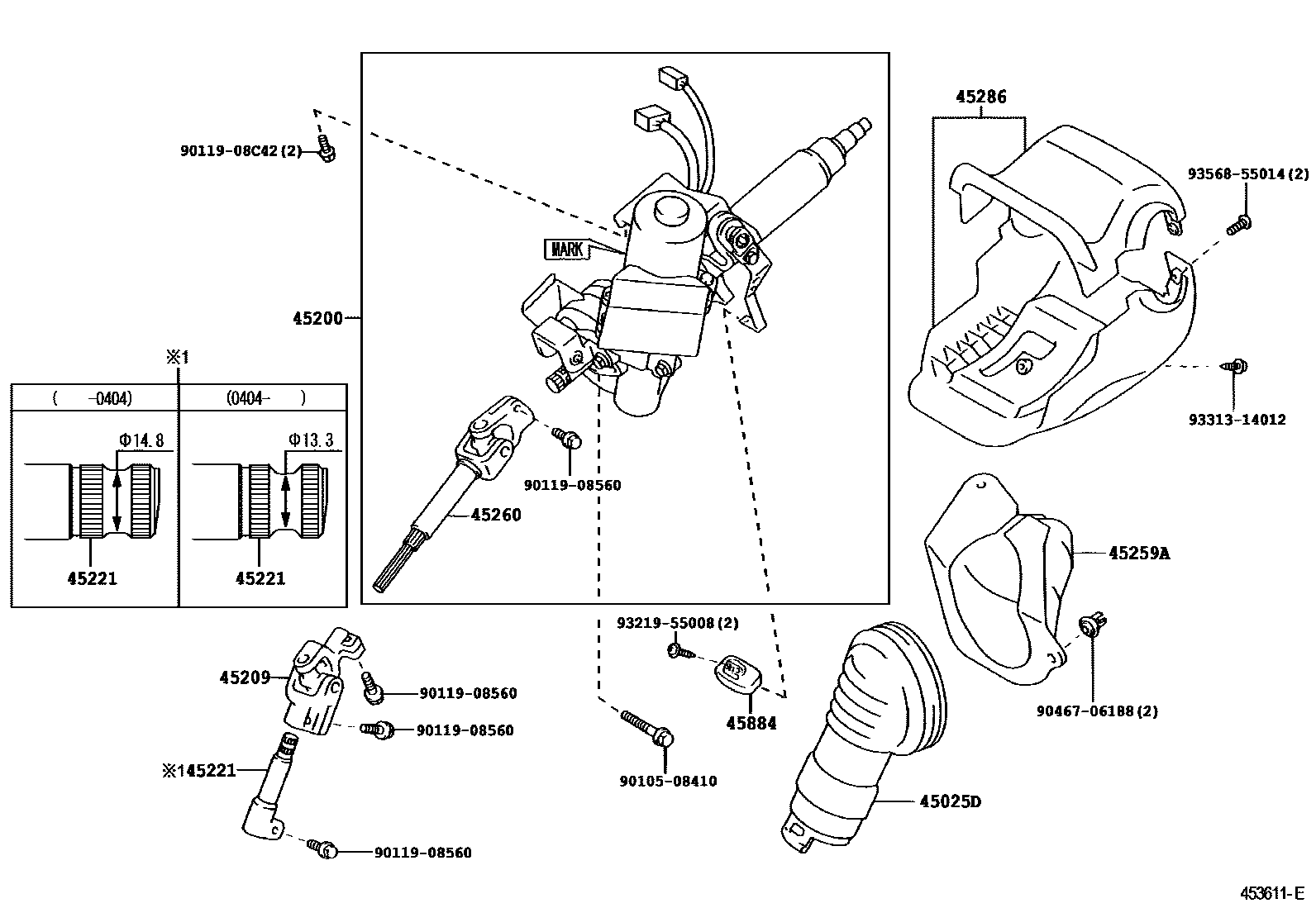

Parts diagram

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-47010i¥5,400200308-200903

main45025-47020i¥6,000200308-200903

45200POST ASSY, STEERING

main45200-47040i¥180,000200308-200503

MARK 80960-47050

sub45200-47042¥180,000

main45200-47041i¥180,000200503-200504

MARK 80960-47051

sub45200-47042¥180,000

main45200-47042i¥180,000200505-200510

MARK 80960-47051

sub45200-47043¥179,000

main45200-47043i¥179,000200511-200903

main45200-47050i¥198,000200308-200503

MARK 80960-47050

main45200-47051i¥180,000200503-200504

MARK 80960-47051

main45200-47052i200505-200510

MARK 80960-47051

sub45200-47053¥179,000

main45200-47053i¥179,000200511-200903

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-12200i¥8,500200308-200509

sub45209-12201¥8,400

main45209-12201i¥8,400200510-200903

45221SHAFT, STEERING INTERMEDIATE

main45221-12280i¥12,500200308-200404

sub45221-12281¥12,800

main45221-12281i¥12,800200404-200903

sub45221-47041¥12,800

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-47010i¥1,820200308-200903

main45259-47020i¥1,710200308-200903

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-47040i¥14,700200308-200504

sub45260-47041¥14,700

main45260-47041i¥14,700200505-200510

sub45260-47042¥14,700

main45260-47042i¥14,700200511-200903

main45260-47050i200308-200504

main45260-47051i200505-200510

main45260-47052i200511-200903

45286COVER, STEERING COLUMN

main45286-47905-C0i200308-200903

BLACK,TRIM1#,4#

sub45286-47904¥3,720

45884BRACKET, TILT LEVER

main45884-13010i¥930200308-200903

9010508410

main90105-08410¥220

9011908560

main90119-08560¥110

9011908C42

main90119-08C42¥80

9046706188

main90467-06188¥160

9321955008

main93219-55008¥110

9331314012

main93313-14012¥60

9356855014

main93568-55014¥70

15 parts on this diagram · 2 diagrams in section
