Toyota PRIUS — REAR COMBINATION LAMP

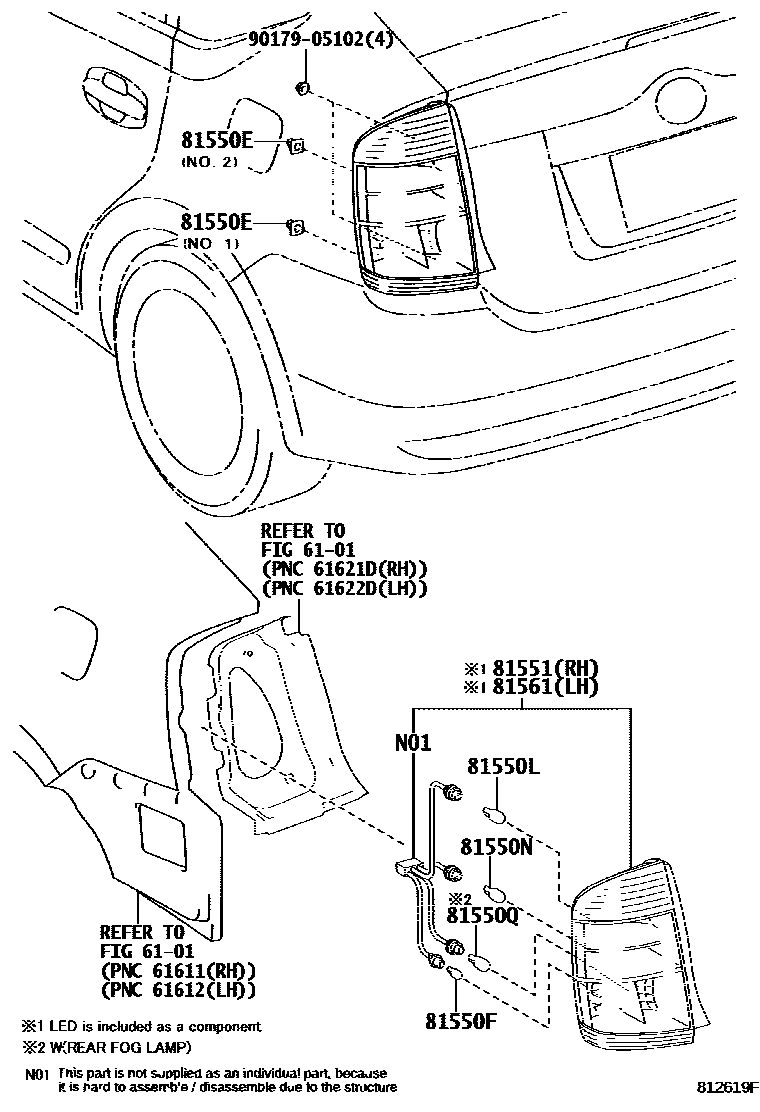

Parts diagram

6101

81550ECLIP(FOR REAR COMBINATION LAMP)

main90467-09075i¥110200308-200903

NO.1

main90467-09112i¥160200308-200903

NO.2

81550FBULB, TAILLAMP

main99132-12050i¥110200308-200903

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011i¥300200308-200903

81550NBULB, BACK UP LAMP

main90981-13043i¥220200308-200903

81550QBULB, REAR FOG LAMP, NO.1

main90981-13043i¥220200308-200903

81551LENS, REAR COMBINATION LAMP, RH

main81551-47050i¥28,000200308-200405

sub81551-47051¥28,000

main81551-47051i¥28,000200405-200511

main81551-47060i¥28,000200308-200405

sub81551-47061¥28,000

main81551-47061i¥28,000200405-200511

main81551-47080i¥30,100200511-200903

main81551-47090i¥31,000200511-200611

sub81551-47091¥30,900

main81551-47091i¥30,900200611-200903

81561LENS, REAR COMBINATION LAMP, LH

main81561-47050i¥28,000200308-200405

sub81561-47051¥28,000

main81561-47051i¥28,000200405-200511

main81561-47060i¥28,000200308-200405

sub81561-47061¥28,000

main81561-47061i¥28,000200405-200511

main81561-47080i¥30,100200511-200903

main81561-47090i¥31,000200511-200611

sub81561-47091¥30,900

main81561-47091i¥30,900200611-200903

9017905102

main90179-05102¥90

9 parts on this diagram · 1 diagram in section
