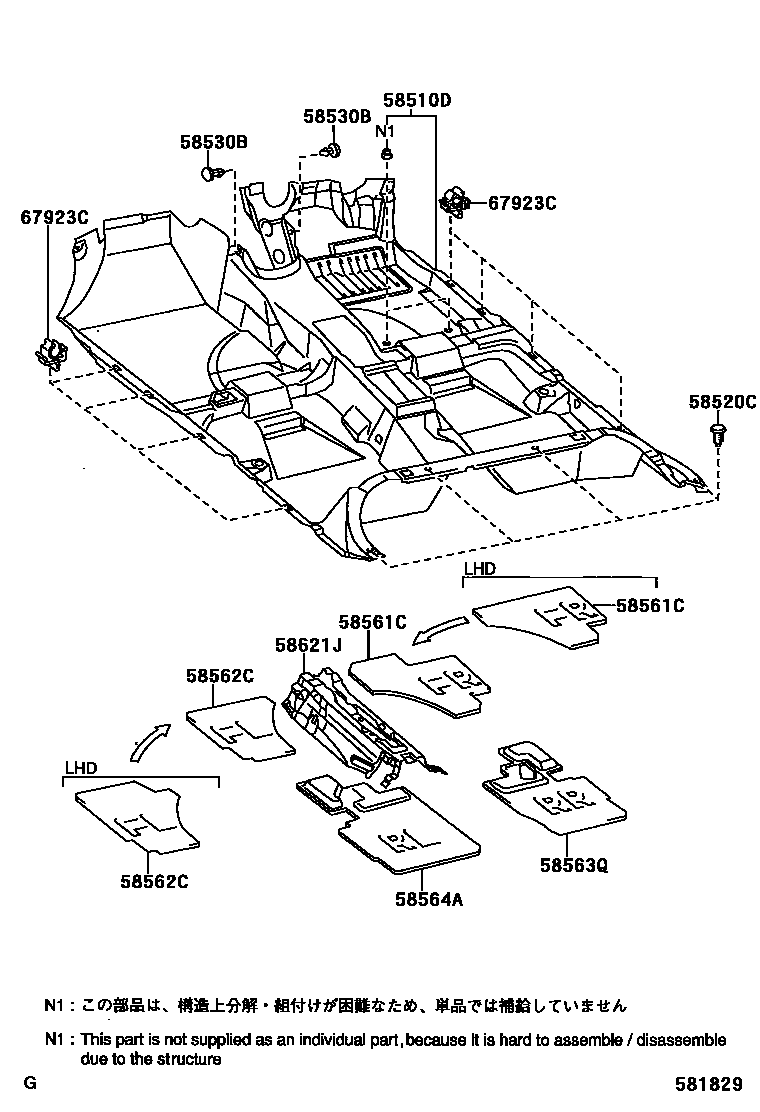

Toyota PRIUS — MAT & CARPET

58510DCARPET ASSY, FLOOR, FRONT

main58510-47060-A1iNHW20..ARL200308-200508

IVORY,TRIM0#

sub58510-47090

main58510-47060-B1iNHW20..RHD200308-200508

MD.GRAY,TRIM1#

sub58510-47090

main58510-47070-B1iNHW20..LHD200308-200508

MD.GRAY,TRIM1#

sub58510-47100¥60,100

main58510-47090-A0iNHW20..ARL200509-200511

IVORY,TRIM0#

sub58510-47120

main58510-47090-B0iNHW20..RHD200509-200511

MD.GRAY,TRIM1#

sub58510-47120

main58510-47100-B0iNHW20..LHD200509-200511

MD.GRAY,TRIM1#

sub58510-47200

main58510-47150-B0iNHW20..RHD200511-200903

MD.GRAY,TRIM1#

main58510-47150-E0iNHW20..RHD200511-200903

GREGE,TRIM4#

main58510-47160-B0iNHW20..LHD200511-200903

MD.GRAY,TRIM1#

main58510-47160-E0iNHW20..LHD200511-200903

GREGE,TRIM4#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-B7iNHW20200308-200511

DK.GRAY,TRIM18,19

sub90467-07049¥90

main90467-07049-B7iNHW20200511-200903

DK.GRAY,TRIM1#

sub90467-07049¥90

main90467-07049-E3iNHW20..ARL200308-200511

MD.NEUTRAL BONE,TRIM08

sub90467-07049¥90

main90467-07049-E5iNHW20200511-200903

GREGE,TRIM4#

sub90467-07049¥90

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-09110-A0iNHW20200511-200903

IVORY

sub90467-09110¥230

main90467-09110-B3iNHW20200308-200511

DK.GRAY,TRIM18,19

sub90467-09110¥230

main90467-09110-E2iNHW20..RHD200308-200511

MD.NEUTRAL BONE,TRIM08

sub90467-09110¥230

58561CSILENCER, FRONT FLOOR, NO.1

main58561-47020iNHW20..RHD¥2,330200308-200511

sub58561-47021¥2,330

main58561-47020iNHW20..RHD¥2,330200511-200903

sub58561-47021¥2,330

main58561-47030iNHW20..LHD¥2,000200511-200903

sub58561-47031

main58561-47030iNHW20..LHD¥2,000200308-200511

sub58561-47031

58562CSILENCER, FRONT FLOOR, NO.2

main58562-47020iNHW20..RHD¥2,330200308-200511

sub58562-47021¥2,330

main58562-47020iNHW20..RHD¥2,330200511-200903

sub58562-47021¥2,330

main58562-47030iNHW20..LHD¥2,330200308-200511

sub58562-47031

main58562-47030iNHW20..LHD¥2,330200511-200903

sub58562-47031

58563QSILENCER, FRONT FLOOR, NO.3

main58563-47020iNHW20¥4,270200511-200903

sub58563-47021¥4,270

main58563-47020iNHW20¥4,270200308-200511

sub58563-47021¥4,270

58564ASILENCER, FRONT FLOOR, NO.4

main58564-47020iNHW20¥4,370200308-200511

sub58564-47021¥4,370

main58564-47020iNHW20¥4,370200511-200903

sub58564-47021¥4,370

58621JSILENCER, CENTER CONSOLE, NO.1

main58621-47010iNHW20¥5,400200308-200511

main58621-47010iNHW20¥5,400200511-200903

67923CCLAMP, DOOR SCUFF PLATE, NO.1

main67923-20080iNHW20¥430200308-200511

BLACK

main67923-20080iNHW20¥430200511-200807

BLACK

main67923-47070iNHW20¥430200808-200903

BLUE

9 parts on this diagram · 1 diagram in section
