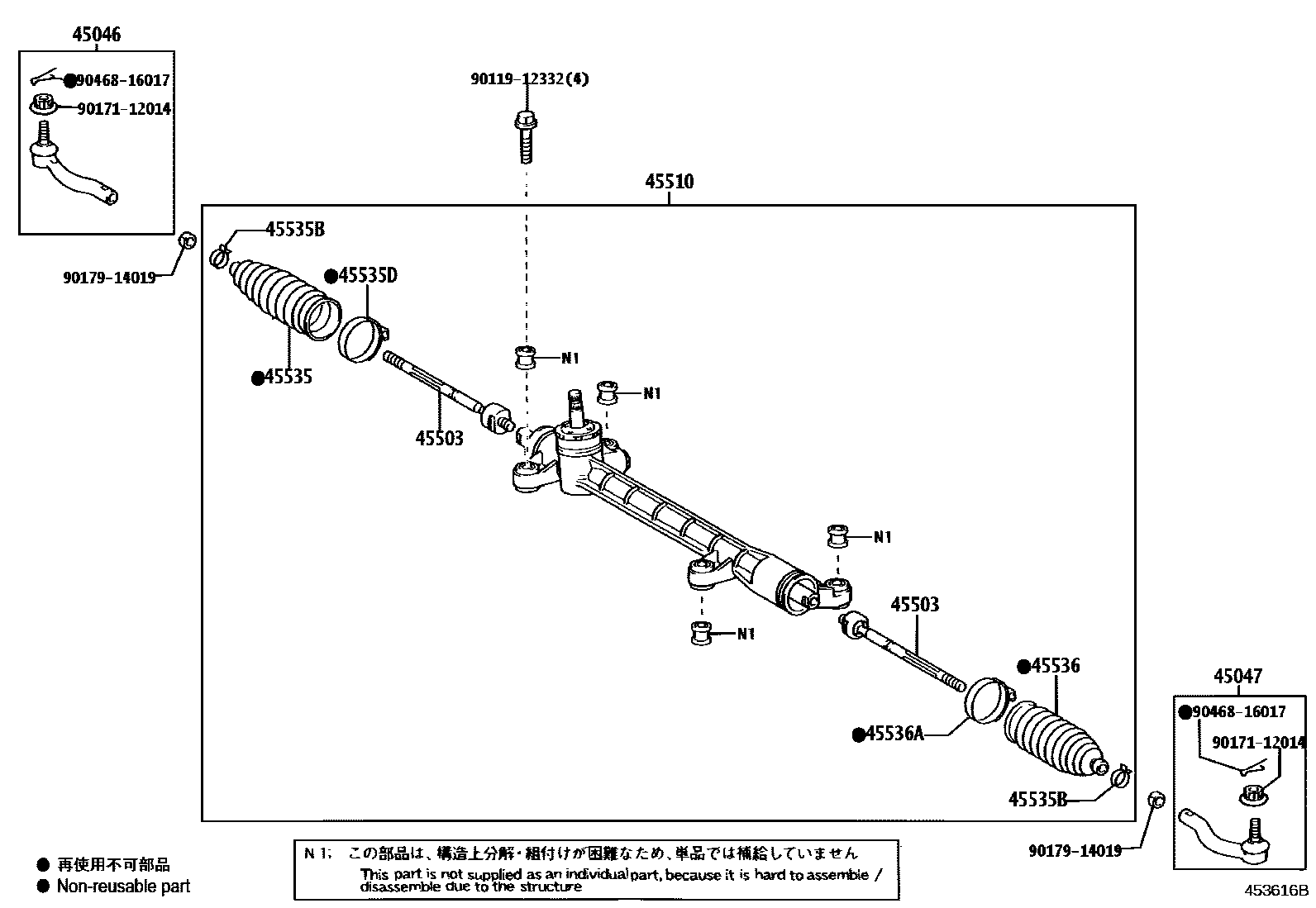

Toyota PRIUS — FRONT STEERING GEAR & LINK

0001 1 0002 1

45046END SUB-ASSY, TIE ROD, RH

main45046-49145iNHW20¥4,270200308-200903

45047END SUB-ASSY, TIE ROD, LH

main45047-49075iNHW20¥4,270200308-200903

45503END SUB-ASSY, STEERING RACK

main45503-47030iNHW20¥6,700200308-200903

45510GEAR ASSY, STEERING

main45510-47010iNHW20..RHD¥47,700200308-200503

sub45510-47011¥47,600

main45510-47011iNHW20..RHD¥47,600200503-200903

main45510-47020iNHW20..LHD¥47,700200308-200503

sub45510-47021¥47,600

main45510-47021iNHW20..LHD¥47,600200503-200903

45535BOOT, STEERING RACK, NO.1

main45535-52060iNHW20¥590200308-200903

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021iNHW20¥180200308-200903

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-58008iNHW20¥390200308-200903

45536BOOT, STEERING RACK, NO.2

main45535-52060iNHW20¥590200308-200903

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-58008iNHW20¥390200308-200903

9011912332

main90119-12332¥390

9017112014

main90171-12014¥190

9017914019

main90179-14019¥130

9046816017

main90468-16017¥90

13 parts on this diagram · 2 diagrams in section
