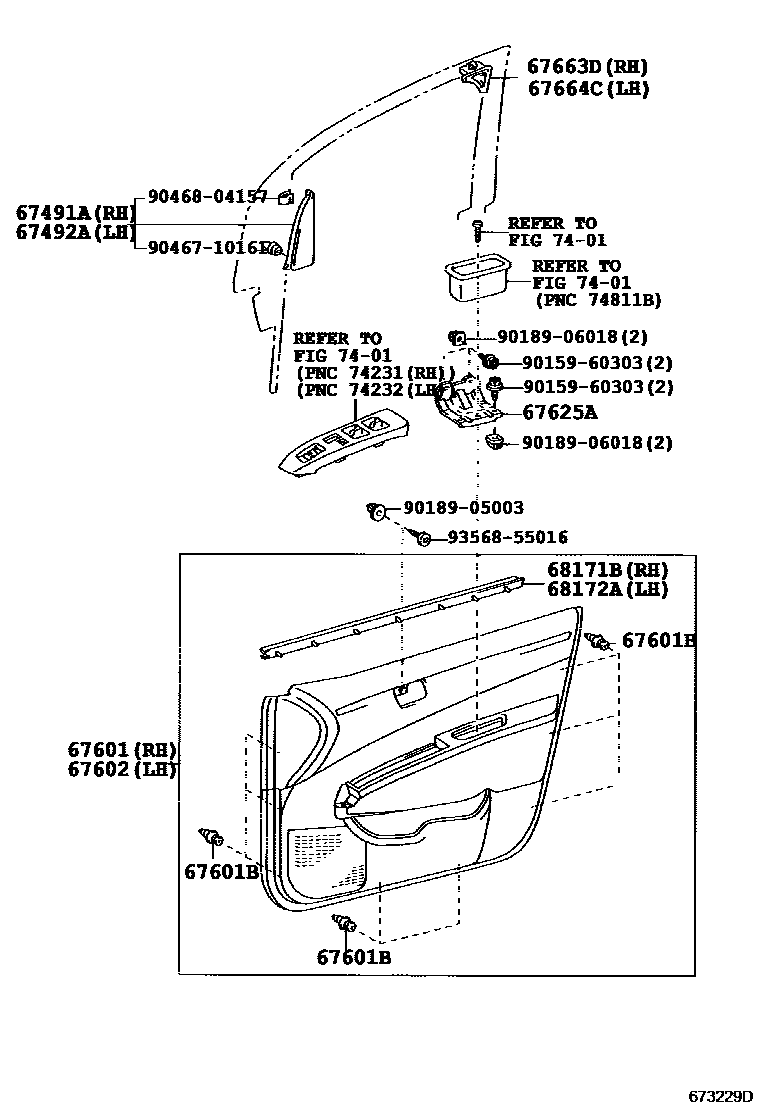

Toyota PRIUS — FRONT DOOR PANEL & GLASS

0001 1 0002 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-47020iNHW20¥2,230200308-200903

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-47020iNHW20¥2,230200308-200903

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-47070-D0iNHW20..ARL200308-200511

DK.RED,TRIM1#

sub67610-47071¥44,000

main67610-47070-E0iNHW20..ARL200308-200511

DK.BROWN,TRIM0#

sub67610-47071¥44,000

main67610-47070-E1iNHW20..EUR200308-200511

DK.BROWN,TRIM1#

sub67610-47071¥44,000

main67610-47100-C0iNHW20200511-200903

BLACK,TRIM1#

sub67610-47101¥54,500

main67610-47100-C1iNHW20..EUR200711-200903

BLACK,TRIM41

sub67610-47101¥54,500

main67610-47100-E2iNHW20..ARL200511-200903

ORCHID BROWN,TRIM4#

sub67610-47101¥54,500

main67610-47100-E2iNHW20..EUR200711-200903

ORCHID BROWN,TRIM41

sub67610-47101¥54,500

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-10161iNHW20¥90200308-200903

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-47070-D0iNHW20..ARL200308-200511

DK.RED,TRIM1#

sub67620-47071¥44,000

main67620-47070-E0iNHW20..ARL200308-200511

DK.BROWN,TRIM0#

sub67620-47071¥44,000

main67620-47070-E1iNHW20..EUR200308-200511

DK.BROWN,TRIM1#

sub67620-47071¥44,000

main67620-47100-C0iNHW20200511-200903

BLACK,TRIM1#

sub67620-47101¥54,500

main67620-47100-C1iNHW20..EUR200711-200903

BLACK,TRIM41

sub67620-47101¥54,500

main67620-47100-E2iNHW20..EUR200711-200903

ORCHID BROWN,TRIM41

sub67620-47101¥54,500

main67620-47100-E2iNHW20..EUR200511-200903

ORCHID BROWN,TRIM4#

sub67620-47101¥54,500

67625ABRACKET, FRONT DOOR TRIM, NO.1

main67625-47010iNHW20¥870200308-200903

67663DGARNISH, DOOR FRAME, RH

main67663-48010iNHW20¥180200308-200903

67664CGARNISH, DOOR FRAME, LH

main67664-48010iNHW20¥180200308-200903

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-47020iNHW20¥3,960200308-200511

main68171-47030iNHW20¥3,940200511-200903

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-47020iNHW20¥3,960200308-200511

main68172-47030iNHW20¥3,940200511-200903

7401

9015960303

main90159-60303¥70

9018905003

main90189-05003¥130

9018906018

main90189-06018¥80

9046710161

main90467-10161¥90

9046804157

main90468-04157¥80

9356855016

main93568-55016¥70

17 parts on this diagram · 2 diagrams in section
