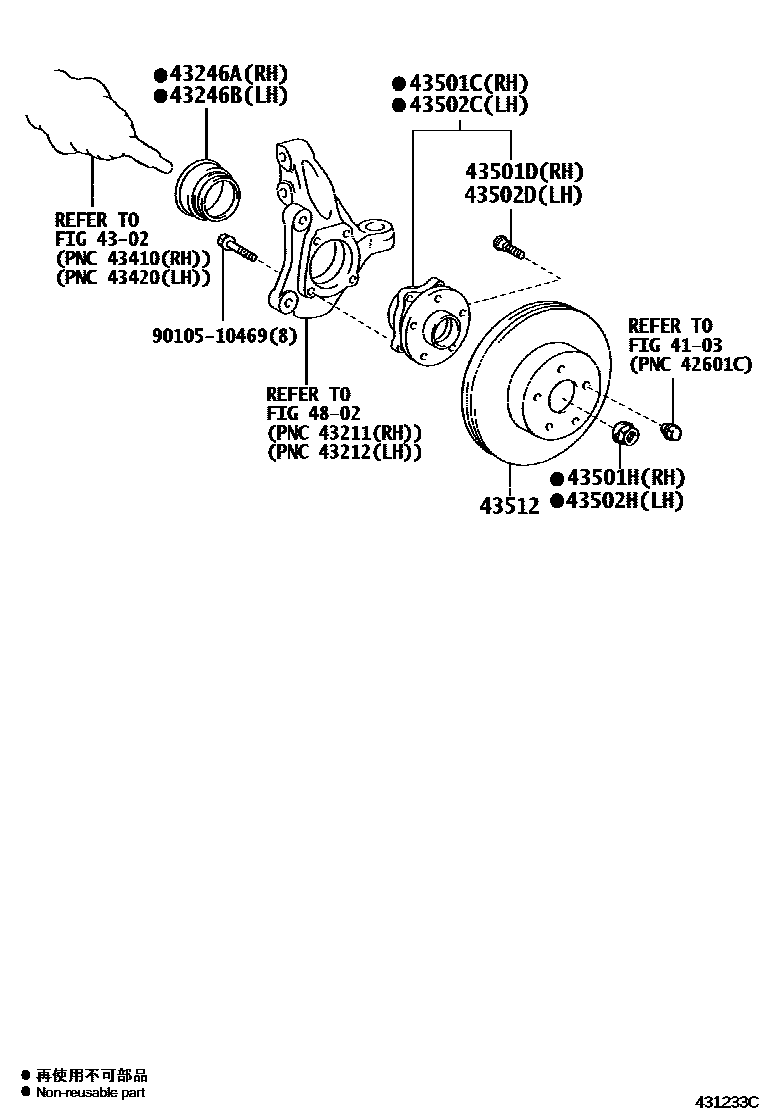

Toyota PRIUS — FRONT AXLE HUB

4103

4302

43246ADEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH

main43246-47010iNHW20¥1,280200308-200903

43246BDEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH

main43246-47010iNHW20¥1,280200308-200903

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43510-47010iNHW20¥12,100200308-200710

sub43510-47011¥12,100

main43510-47011iNHW20¥12,100200711-200903

sub43510-47012¥12,100

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iNHW20¥240200308-200903

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iNHW20¥220200308-200903

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43510-47010iNHW20¥12,100200308-200710

sub43510-47011¥12,100

main43510-47011iNHW20¥12,100200711-200903

sub43510-47012¥12,100

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iNHW20¥240200308-200903

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iNHW20¥220200308-200903

43512DISC, FRONT

main43512-47030iNHW20¥12,800200308-200903

4802

9010510469

main90105-10469¥120

13 parts on this diagram · 1 diagram in section
