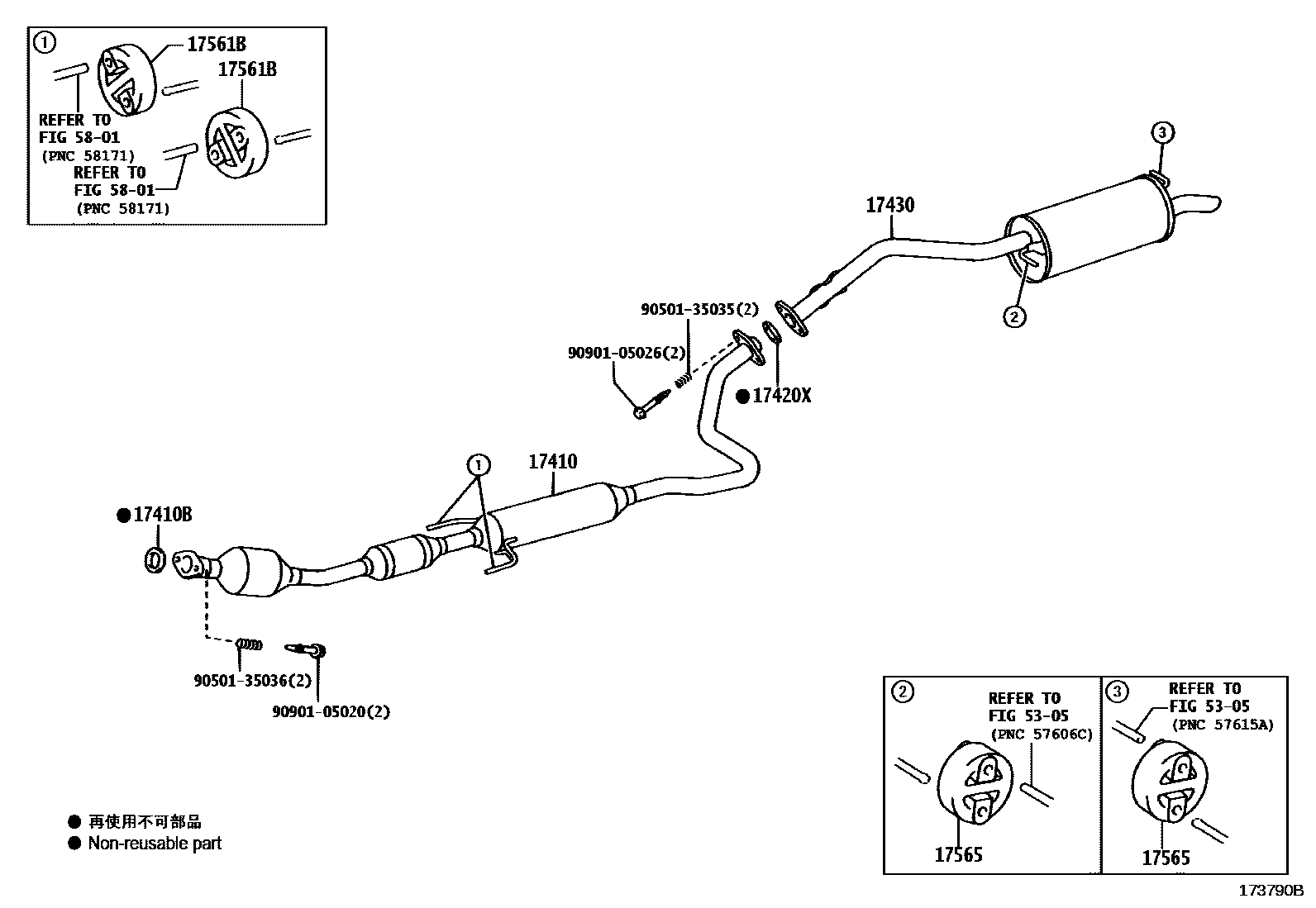

Toyota PRIUS — EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-21490i1NZFXE..NHW20¥229,000200308-200903

*114=TOYOTA/GD3EA6/Y

sub17410-21500¥229,000

17410BGASKET, EXHAUST PIPE

main17451-21060i1NZFXE..NHW20¥2,630200308-200903

17420XGASKET, EXHAUST PIPE, CENTER

main17451-23010i1NZFXE..NHW20¥1,150200308-200903

17430PIPE ASSY, EXHAUST, TAIL

main17430-21580i1NZFXE..NHW20¥25,700200308-200903

17561BSUPPORT, EXHAUST PIPE, NO.1

main17565-22030i1NZFXE..NHW20¥570200308-200903

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-28010i1NZFXE..NHW20¥670200308-200903

5305

5801

9050135035

main90501-35035¥200

9050135036

main90501-35036¥200

9090105020

main90901-05020¥230

9090105026

main90901-05026¥310

12 parts on this diagram · 1 diagram in section
