Toyota PRIUS — ENGINE OVERHAUL GASKET KIT

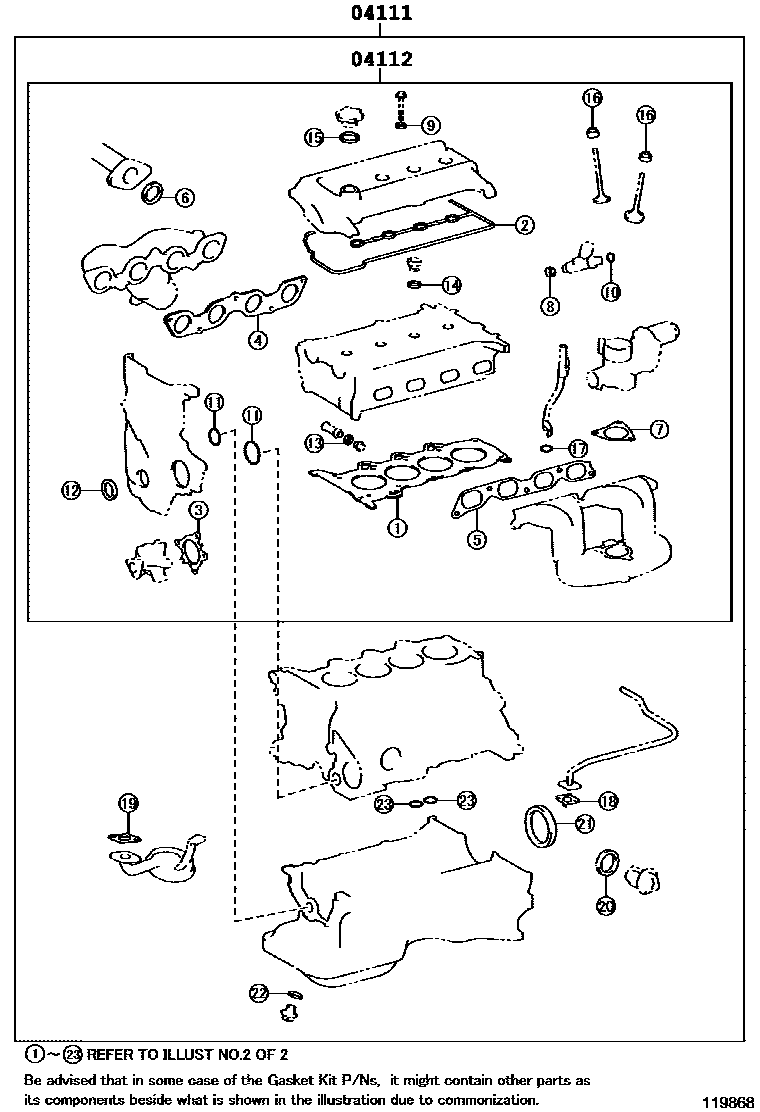

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-21090i¥27,100200308-200403
sub04111-21091¥27,100
main04111-21200i¥27,300200403-200612
sub04111-21201¥27,100
main04111-21201i¥27,100200612-200811
sub04111-21202¥27,100
main04111-21202i¥27,100200811-200903
sub04111-21203¥27,100
04112GASKET KIT, ENGINE VALVE GRIND
main04112-21090i¥22,600200308-200403
sub04112-21091¥22,500
main04112-21200i¥22,700200403-200612
sub04112-21201¥22,600
main04112-21201i¥22,600200612-200903
sub04112-21202¥22,600

2 parts on this diagram · 2 diagrams in section
