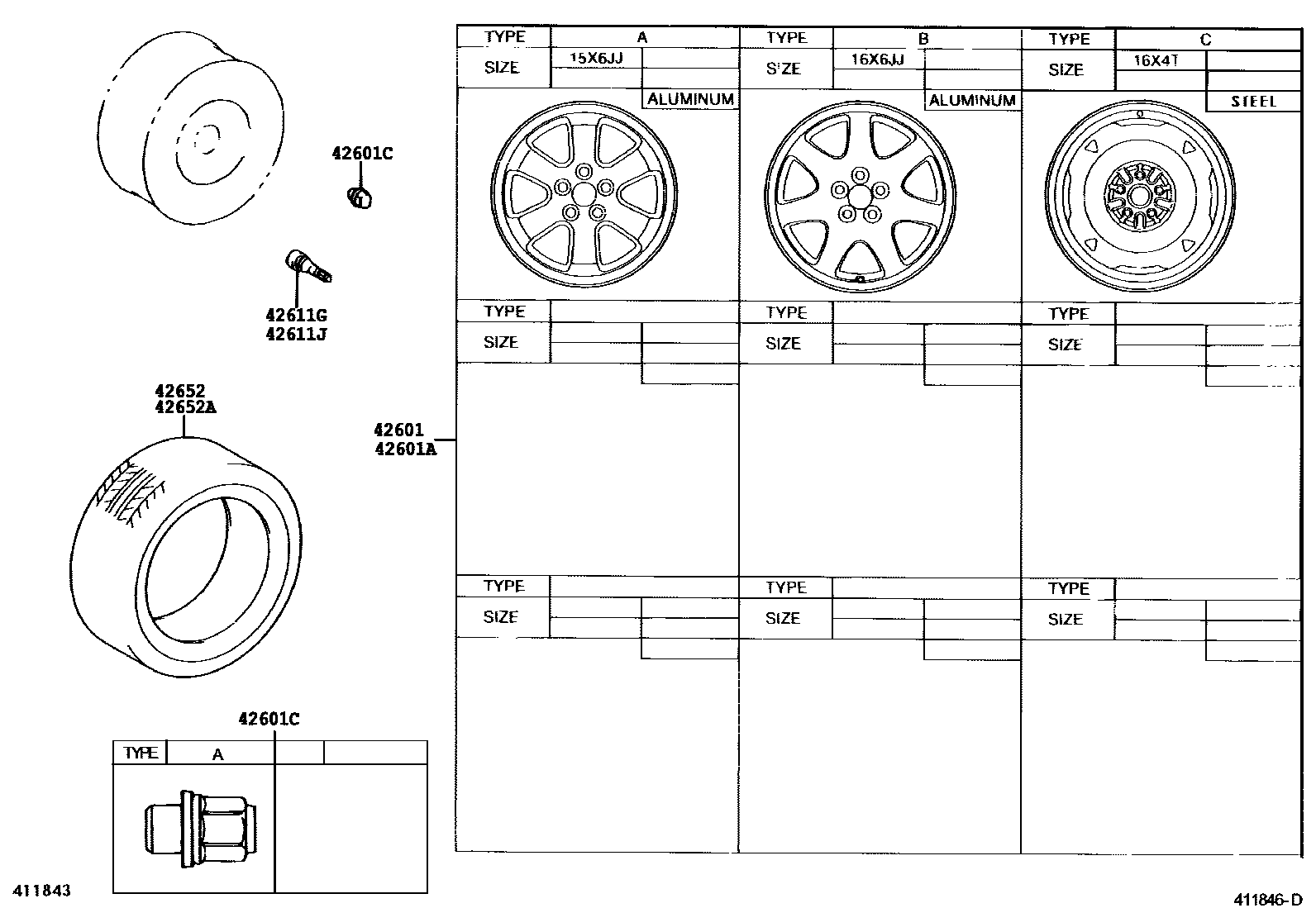

Toyota PRIUS — DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-47050iNHW20..ARL¥35,700200308-200511

15X6JJ,#,TYPE A:REFER ILLUST.

sub42611-47390¥35,700

main42611-47050iNHW20..ARL¥35,700200511-200903

15X6JJ,#,TYPE A:REFER ILLUST.

sub42611-47390¥35,700

main42611-47060iNHW20..EUR¥38,600200308-200411

16X6JJ,#,TYPE B:REFER ILLUST.

sub42611-47070¥38,600

main42611-47070iNHW20..EUR¥38,600200412-200511

16X6JJ,#,TYPE B:REFER ILLUST.

sub42611-47190¥38,600

main42611-47070iNHW20..EUR¥38,600200511-200703

16X6JJ,#,TYPE B:REFER ILLUST.

sub42611-47190¥38,600

main42611-47080iNHW20..EUR200704-200707

16X6JJ,#,TYPE B:REFER ILLUST.

sub42611-47190¥38,600

main42611-47190iNHW20..EUR¥38,600200708-200903

16X6JJ,#,TYPE B:REFER ILLUST.

sub42611-47400¥38,600

42601AWHEEL, DISC (FOR SPARE)

main42611-20840iNHW20¥10,100200308-200511

16X4T,TYPE C:REFER ILLUST.

sub42611-20841¥10,100

main42611-20840iNHW20¥10,100200511-200903

16X4T,TYPE C:REFER ILLUST.

sub42611-20841¥10,100

42601CNUT, HUB (FOR AXLE)

main90942-01033iNHW20¥430200308-200511

TYPE A:REFER ILLUST.

main90942-01033iNHW20¥430200511-200903

TYPE A:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iNHW20¥390200405-200511

main90942-05009iNHW20¥390200308-200404

main90942-05009iNHW20¥390200511-200903

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iNHW20¥390200308-200511

main90942-05009iNHW20¥390200511-200903

42652TIRE

main42652-02751iNHW20..LHD200412-200511

195/55R16,MICHELIN

main42652-02751iNHW20..LHD200511-200903

195/55R16,MICHELIN

42652ATIRE (FOR SPARE)

main42652-47080iNHW20..LHD200508-200511

T125/70D16 96M,CHINA SPEC

7 parts on this diagram · 3 diagrams in section
