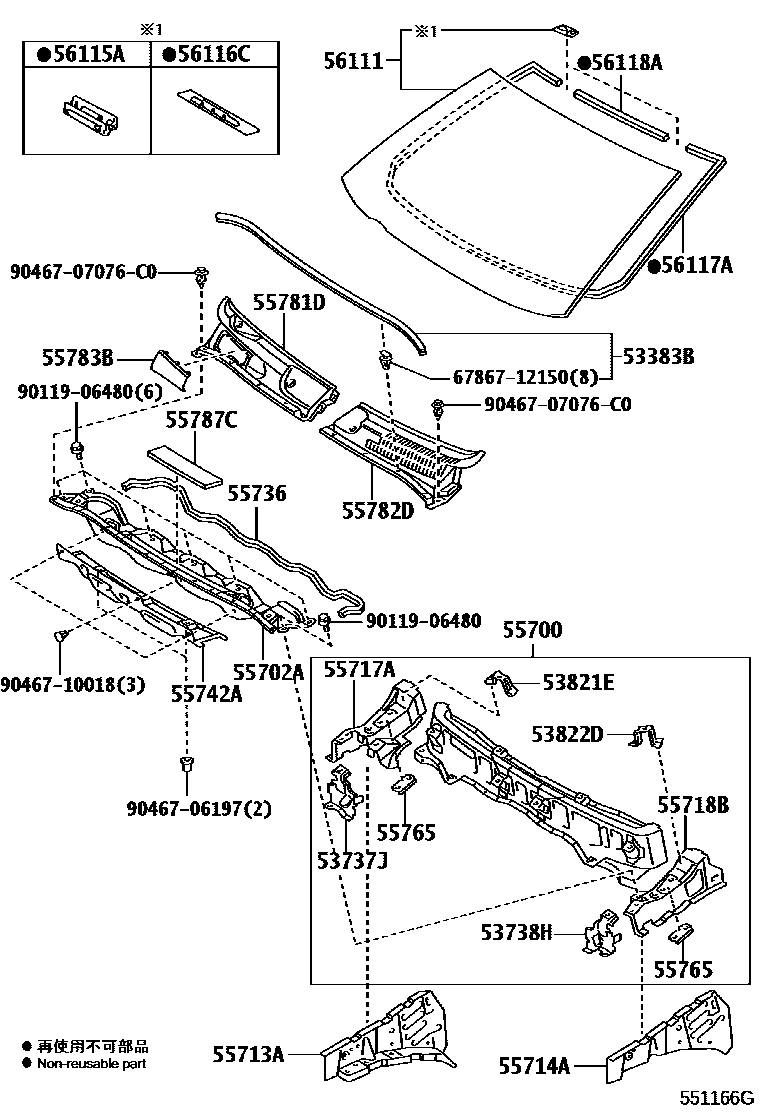

Toyota PRIUS — COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53737JPLATE, FRONT APRON TO COWL SIDE MEMBER, RH
53738HPLATE, FRONT APRON TO COWL SIDE MEMBER, LH
53821EBRACKET, FRONT FENDER, REAR RH
53822DBRACKET, FRONT FENDER, REAR LH
55713APANEL, COWL TOP SIDE, RH
55714APANEL, COWL TOP SIDE, LH
55717APANEL, COWL TOP SIDE, INNER RH
55718BPANEL, COWL TOP SIDE, INNER LH
55736SEAL, WATER GUARD PLATE
55742ASHEET, COWL TOP INSULATOR
55765BRACKET, HOOD DAMPER MOUNTING
55781DLOUVER, COWL TOP VENTILATOR, RH
55782DLOUVER, COWL TOP VENTILATOR, LH
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
55787CINSULATOR, COWL TOP PANEL, NO.1
56111GLASS, WINDSHIELD
*LAM,T=4.76,GREEN
sub56101-47923
*LAM,T=4.76,GREEN
sub56101-47924
*LAM,T=4.76,GREEN
sub56101-47931
*LAM,T=4.76,GREEN
sub56101-47931
*LAM,T=4.76,GREEN
sub56101-47927
*LAM,T=4.76,GREEN
sub56101-47927
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=3470
56118ADAM, WINDOW GLASS ADHESIVE, NO.2
6786712150CLIP, DOOR WEATHERSTRIP
9011906480
9046706197
9046707076C0
main90467-07076C0
9046710018
28 parts on this diagram · 3 diagrams in section
