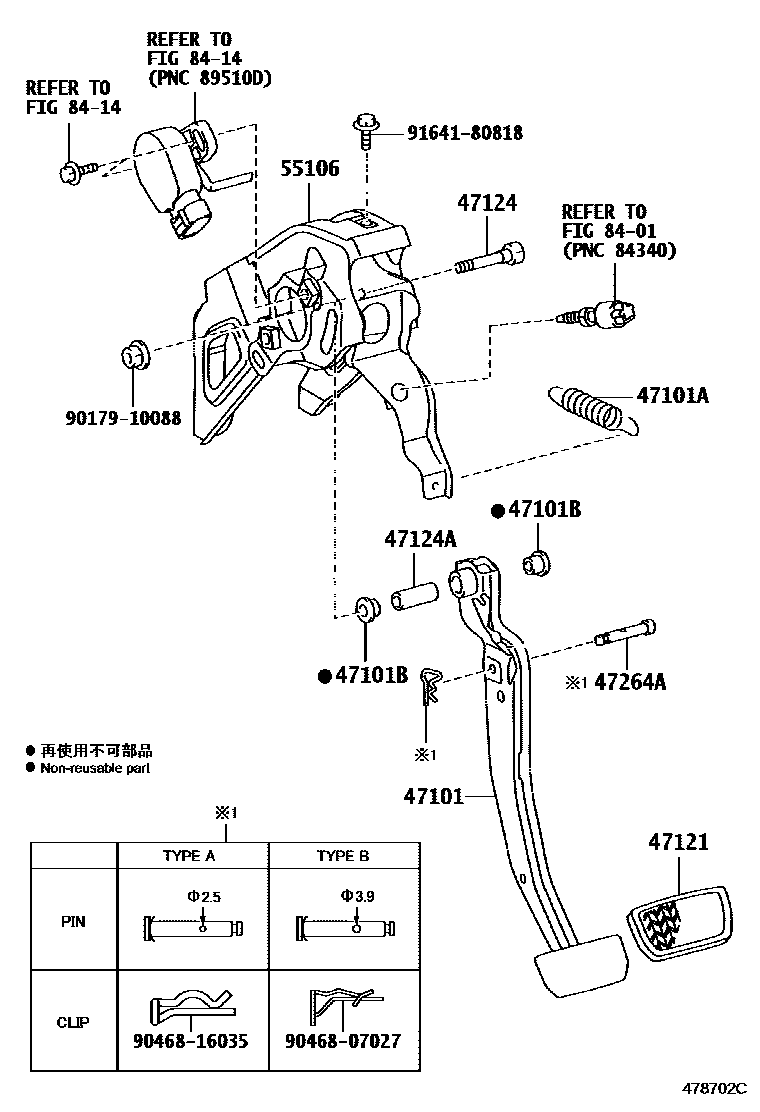

Toyota PRIUS — BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-47040iNHW20..RHD¥2,790200308-200903

main47101-47050iNHW20..LHD¥2,790200308-200903

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-16027iNHW20¥300200308-200903

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iNHW20¥120200308-200903

47121PAD, BRAKE PEDAL

main47121-52010iNHW20¥260200308-200903

47124SHAFT, BRAKE PEDAL

main90101-10015iNHW20¥160200308-200903

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iNHW20¥370200308-200903

47264APIN(FOR PUSH ROD)

main47148-47020iNHW20¥280200308-200606

main47148-47020iNHW20¥280200606-200903

TYPE A

main47148-47030iNHW20¥360200606-200903

TYPE B

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-47040iNHW20..RHD¥4,010200308-200903

main55106-47050iNHW20..LHD¥4,010200308-200903

8401

8414

9017910088

main90179-10088¥100

9046807027

main90468-07027¥60

9046816035

main90468-16035¥140

9164180818

main91641-80818¥80

14 parts on this diagram · 2 diagrams in section
