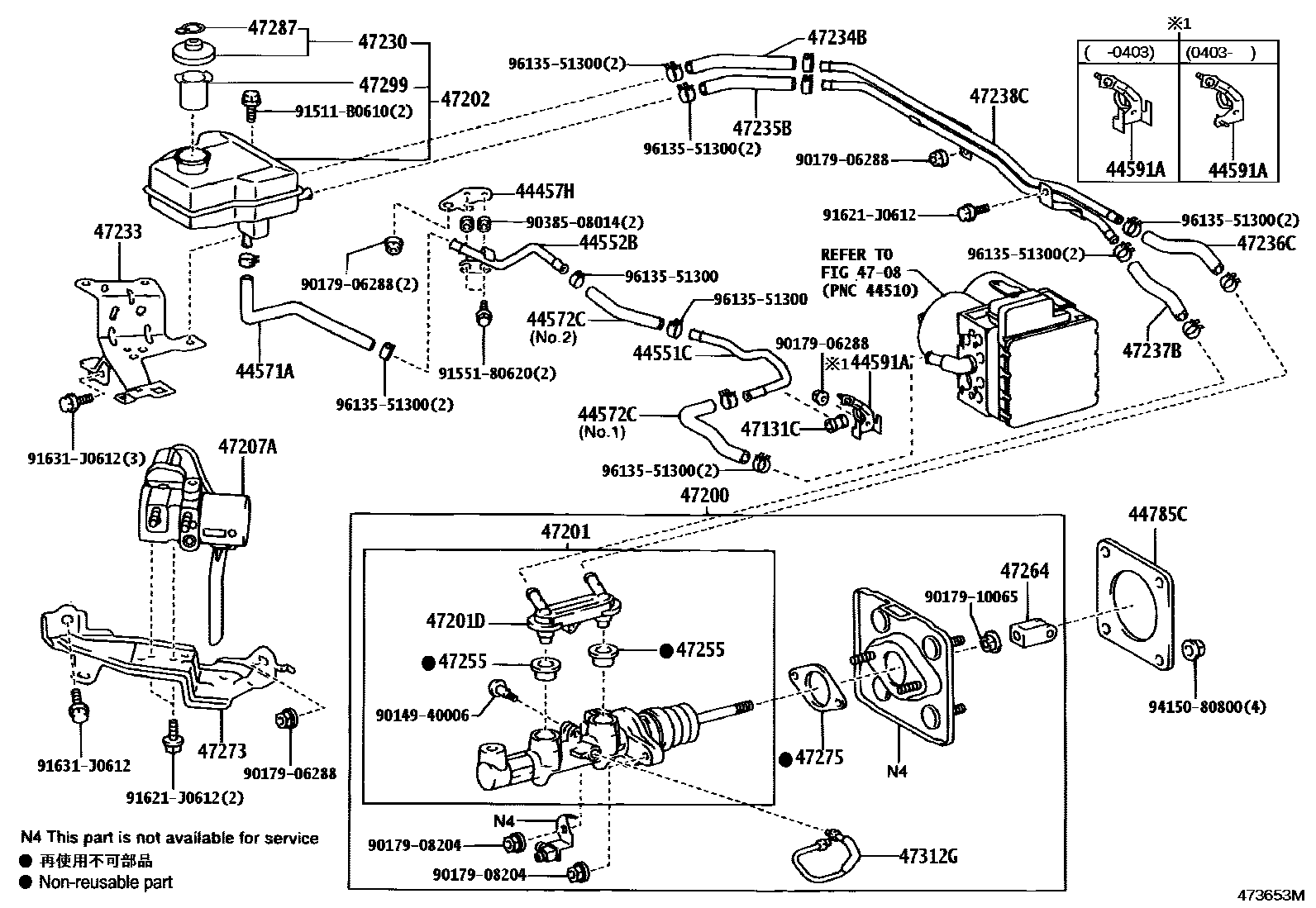

Toyota PRIUS — BRAKE MASTER CYLINDER
44457HBRACKET, TUBE SUPPORT
44551CTUBE, BRAKE ACTUATOR, NO.1
44552BTUBE, BRAKE ACTUATOR, NO.2
44571AHOSE, BRAKE ACTUATOR, NO.1
44572CHOSE, BRAKE ACTUATOR, NO.2
NO.1
NO.2
44591ABRACKET, BRAKE ACTUATOR, NO.1
44785CGASKET, BRAKE BOOSTER
4708
47131CCUSHION
47200CYLINDER ASSY, BRAKE MASTER
47201CYLINDER SUB-ASSY, BRAKE MASTER
47201DUNION, BRAKE MASTER CYLINDER, NO.1
47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47207ACYLINDER SUB-ASSY, BRAKE STROKE SIMULATOR
47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47233BRACKET, RESERVOIR
47234BTUBE, RESERVOIR, NO.1
47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2
47236CHOSE, RESERVOIR TUBE
47237BHOSE, RESERVIOR TUBE
47238CTUBE, RESERVOIR
47255GROMMET, MASTER CYLINDER RESERVOIR
47264CLEVIS, MASTER CYLINDER PUSH ROD
47273BRACKET, BRAKE STROKE SIMULATOR
47275GASKET, BRAKE MASTER CYLINDER
47287LABEL, BRAKE FLUID INFORMATION
47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47312GTUBE, BRAKE STROKE SIMULATOR
9014940006
9017906288
9017908204
9017910065
9038508014
91511B0610
9155180620
91621J0612
91631J0612
9415080800
9613551300
39 parts on this diagram · 2 diagrams in section
