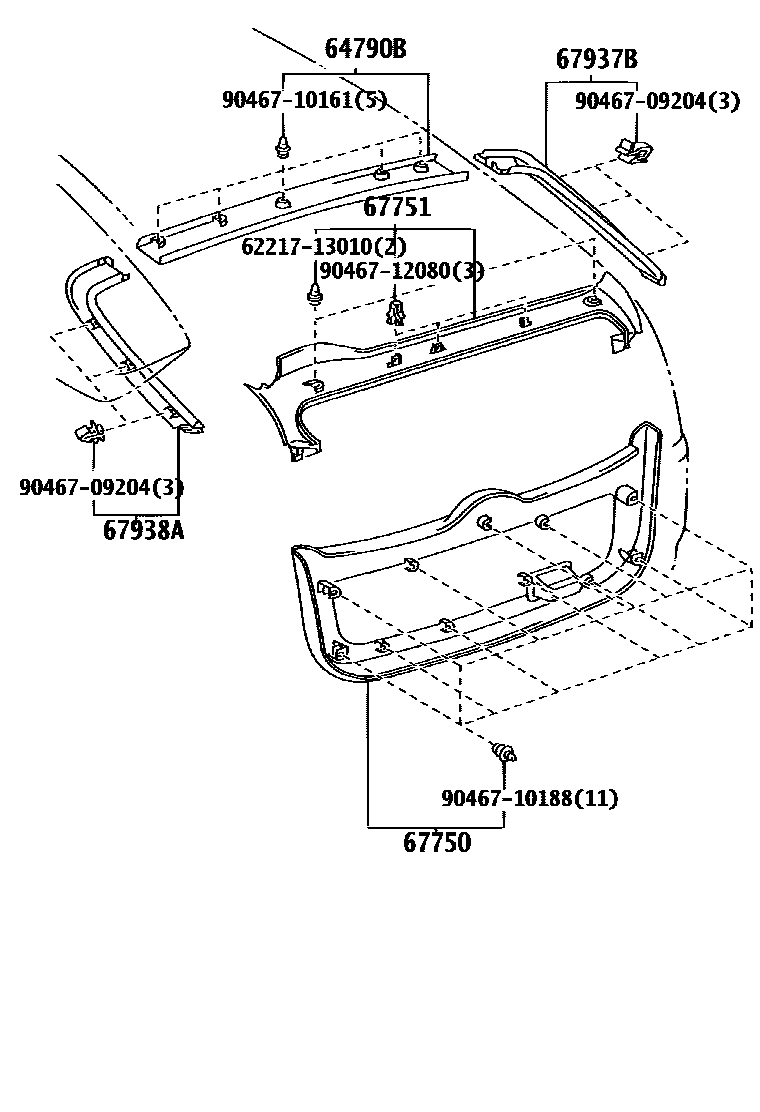

Toyota PRIUS — BACK DOOR PANEL & GLASS

0001 1 0002 1

64790BPANEL ASSY, BACK DOOR TRIM, UPPER

main64790-47010-C0iNHW20..EUR200308-200511

BLACK,TRIM1#

main64790-47010-C0iNHW20..ARL200308-200511

BLACK,TRIM0#,1#

main64790-47010-C0iNHW20200511-200903

BLACK,TRIM1#,4#

67750BOARD ASSY, BACK DOOR TRIM

main67750-47010-C0iNHW20..EUR200308-200511

BLACK,TRIM0#,1#

main67750-47010-C0iNHW20..ARL200308-200511

BLACK,TRIM1#

main67750-47010-C0iNHW20200511-200903

BLACK,TRIM1#,4#

67751BOARD, BACK DOOR TRIM

main67751-47010-C0iNHW20..ARL200308-200511

BLACK,TRIM0#,1#

main67751-47020-C0iNHW20..EUR200308-200511

WITH(INTERMITTENT REAR WIPER),BLACK,TRIM0#,1#

main67751-47020-C0iNHW20..ARL200308-200511

BLACK,TRIM1#

main67751-47020-C0iNHW20200511-200903

BLACK,TRIM1#,4#

67937BGARNISH, BACK DOOR SIDE, RH

main67937-47010-C0iNHW20..ARL200308-200511

BLACK,TRIM0#,1#

main67937-47010-C0iNHW20..ARL200308-200511

BLACK,TRIM1#

main67937-47010-C0iNHW20200511-200903

BLACK,TRIM1#,4#

67938AGARNISH, BACK DOOR SIDE, LH

main67938-47010-C0iNHW20..ARL200308-200511

BLACK,TRIM0#,1#

main67938-47010-C0iNHW20..ARL200308-200511

BLACK,TRIM1#

main67938-47010-C0iNHW20200511-200903

BLACK,TRIM1#,4#

6221713010COVER, RAIL ROOF SIDE, INNER CENTER

main62217-13010¥80

9046709204

main90467-09204¥110

9046710161

main90467-10161¥90

9046710188

main90467-10188¥80

9046712080

main90467-12080¥60

10 parts on this diagram · 2 diagrams in section
