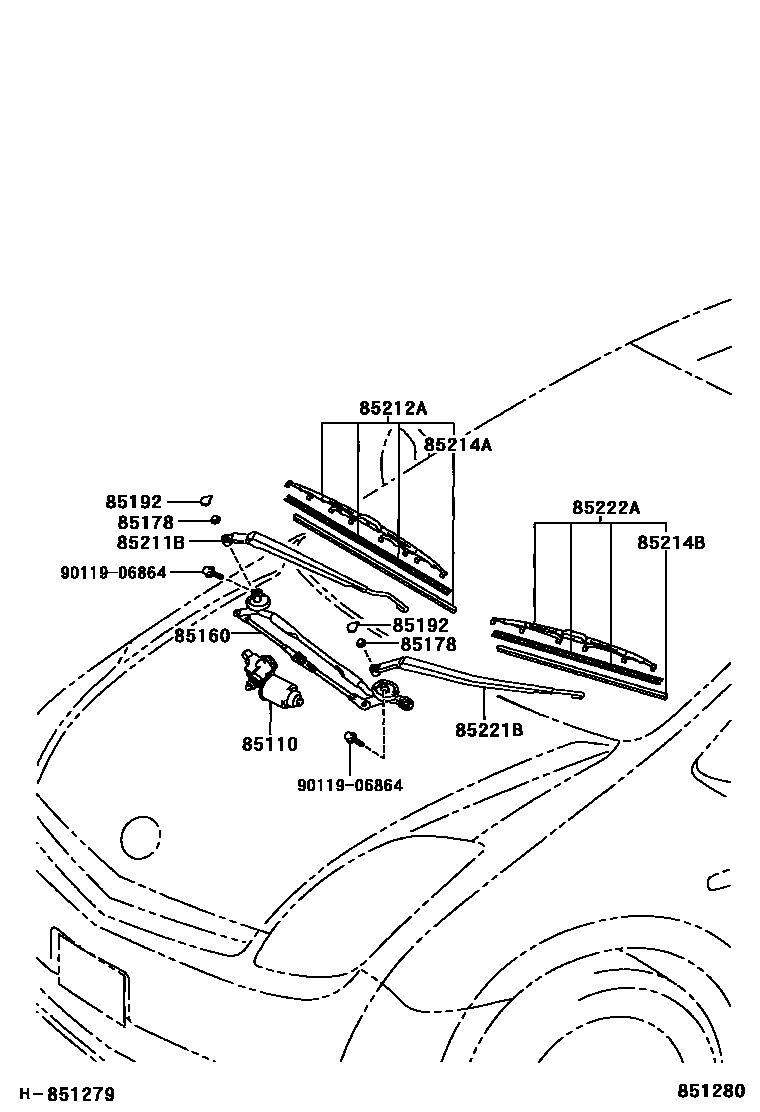

Toyota PRIUS — WINDSHIELD WIPER

0001 1 0002 1 0003 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-47070iNHW20..RHD..EUR¥30,400200308-200511

main85110-47070iNHW20..RHD..EUR¥30,400200511-200903

main85110-47080iNHW20..LHD¥30,400200308-200511

main85110-47080iNHW20..LHD¥30,400200511-200903

main85110-47090iNHW20..ARL200308-200511

main85110-47090iNHW20..ARL200511-200903

85160LINK ASSY, WINDSHIELD WIPER

main85150-47080iNHW20..RHD..EUR¥7,500200308-200511

main85150-47080iNHW20..RHD..EUR¥7,500200511-200903

main85150-47090iNHW20..LHD¥7,500200511-200903

main85150-47090iNHW20..LHD¥7,500200308-200511

main85150-47100iNHW20..ARL¥9,400200308-200511

main85150-47100iNHW20..ARL¥9,400200511-200903

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-10223iNHW20..ARL¥100200308-200511

main90179-10223iNHW20..ARL¥100200511-200903

85192COVER, WINDSHIELD WIPER ARM

main85292-13010iNHW20..ARL¥250200308-200511

main85292-13010iNHW20..ARL¥250200511-200903

85211BARM, FRONT WIPER, RH

main85211-47060iNHW20..RHD..EUR¥4,860200511-200903

main85211-47060iNHW20..RHD..EUR¥4,860200308-200511

main85211-47070iNHW20..LHD¥5,800200308-200511

main85211-47070iNHW20..LHD¥5,800200511-200903

main85211-47080iNHW20..ARL¥5,100200511-200903

main85211-47080iNHW20..ARL¥5,100200308-200511

85212ABLADE, FR WIPER, RH

main85212-13030iNHW20..LHD¥2,090200308-200511

sub85212-13031¥1,640

main85212-13030iNHW20..LHD¥2,090200511-200605

sub85212-13031¥1,640

main85212-13031iNHW20..LHD¥1,640200606-200903

main85212-68010iNHW20..RHD¥4,290200308-200511

main85212-68010iNHW20..RHD¥4,290200511-200903

85214ARUBBER, WIPER, RH

main85214-44140iNHW20..RHD¥900200308-200511

main85214-44140iNHW20..RHD¥900200511-200903

main85214-50060iNHW20..LHD¥830200511-200606

sub85214-50061¥650

main85214-50060iNHW20..LHD¥830200308-200511

sub85214-50061¥650

main85214-50061iNHW20..LHD¥650200606-200903

85214BRUBBER, WIPER, LH

main85214-44140iNHW20..LHD¥900200511-200903

main85214-44140iNHW20..LHD¥900200308-200511

main85214-46010iNHW20..ARL¥1,020200308-200511

sub85214-46011¥800

main85214-46010iNHW20..ARL¥1,020200511-200606

sub85214-46011¥800

main85214-46011iNHW20..ARL¥800200606-200903

main85214-50060iNHW20..RHD..EUR¥830200308-200511

sub85214-50061¥650

main85214-50060iNHW20..RHD..EUR¥830200511-200607

sub85214-50061¥650

main85214-50061iNHW20..RHD..EUR¥650200608-200903

85221BARM, FRONT WIPER, LH

main85221-47030iNHW20..RHD..EUR¥5,800200308-200511

main85221-47030iNHW20..RHD..EUR¥5,800200511-200903

main85221-47060iNHW20..LHD¥4,860200511-200903

main85221-47060iNHW20..LHD¥4,860200308-200511

main85221-47070iNHW20..ARL¥6,400200511-200903

main85221-47070iNHW20..ARL¥6,400200308-200511

85222ABLADE, FR WIPER, LH

main85222-13040iNHW20..RHD..EUR¥2,090200308-200511

sub85222-13041¥1,640

main85222-13040iNHW20..RHD..EUR¥2,090200511-200607

sub85222-13041¥1,640

main85222-13041iNHW20..RHD..EUR¥1,640200608-200903

main85222-46010iNHW20..ARL¥2,510200511-200605

sub85222-46011¥2,180

main85222-46010iNHW20..ARL¥2,510200308-200511

sub85222-46011¥2,180

main85222-46011iNHW20..ARL¥2,180200606-200903

main85222-47020iNHW20..LHD¥3,900200308-200511

main85222-47020iNHW20..LHD¥3,900200511-200903

9011906864

main90119-06864¥80

11 parts on this diagram · 3 diagrams in section
