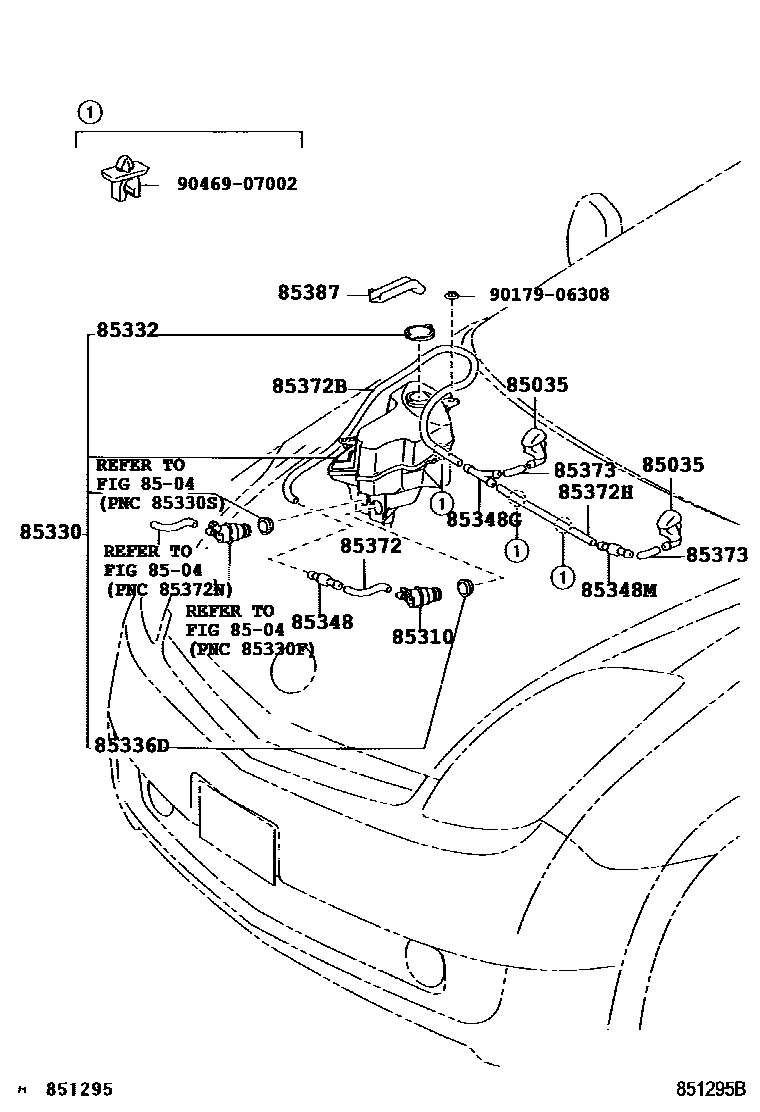

Toyota PRIUS — WINDSHIELD WASHER
8504
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
WITH(INTERMITTENT REAR WIPER)
85336DPACKING, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=80)
L=1450(*H,L=1360)
L=1450(*H,L=80)
L=1450(*H,L=1360)
L=1450(*H,L=1370)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1450(*H,L=500)
L=1450(*H,L=500)
L=1800(*H,L=1280)
L=1800(*H,L=1300)
L=1800(*H,L=1300)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=1800(*H,L=500)
L=1800(*H,L=500)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=100)
L=1450(*H,L=100)
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
9017906308
9046907002
16 parts on this diagram · 2 diagrams in section
