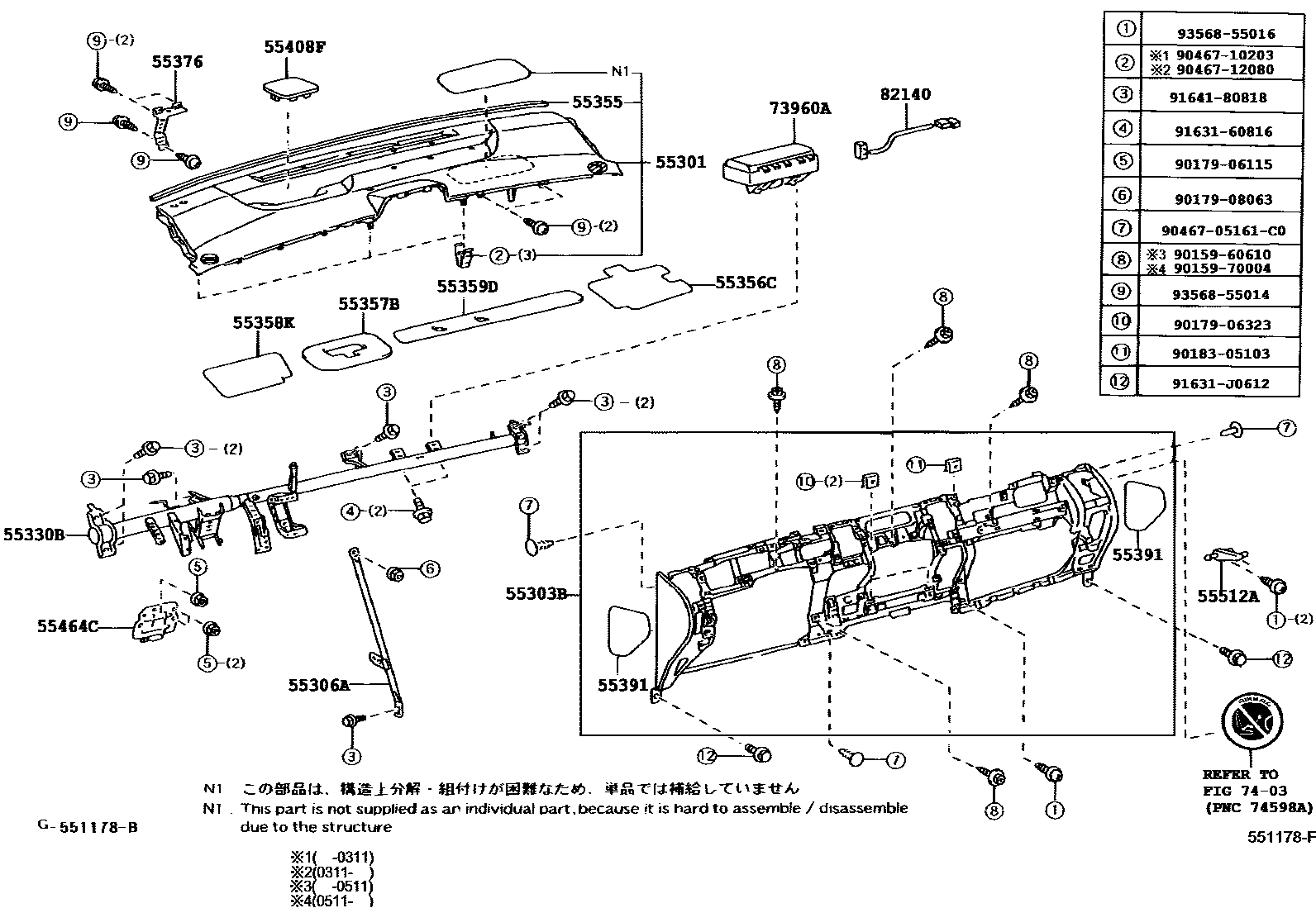

Toyota PRIUS — INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1 0005 1DRIVER SIDE 0006 1DRIVER SIDE 0007 1CENTER 0008 1CENTER 0009 1PASSENGER SIDE 0010 1PASSENGER SIDE

55301PANEL SUB-ASSY, INSTRUMENT

main55300-47010-C0iNHW20..ARL200308-200511

BLACK,TRIM1#

main55300-47010-C0iNHW20..RHD..EUR200308-200511

BLACK,TRIM0#,1#

main55300-47010-C0iNHW20..RHD200511-200903

BLACK,TRIM1#,4#

main55300-47030-C0iNHW20..LHD200511-200903

BLACK,TRIM1#,4#

main55300-47030-C0iNHW20..LHD200308-200511

BLACK,TRIM1#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-47010iNHW20..RHD¥28,900200308-200903

main55303-47020iNHW20..LHD¥28,900200308-200903

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-47030iNHW20..RHD¥2,160200308-200903

main55306-47040iNHW20..LHD¥2,160200308-200903

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-47030iNHW20..RHD¥17,900200308-200502

sub55330-47031¥17,800

main55330-47031iNHW20..RHD¥17,800200503-200903

main55330-47040iNHW20..LHD¥17,800200308-200502

sub55330-47041¥17,500

main55330-47041iNHW20..LHD¥17,500200503-200903

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-68010iNHW20¥1,020200308-200903

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-47020iNHW20¥410200308-200705

main55356-47040iNHW20¥450200705-200903

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-47020iNHW20¥350200308-200903

55358KCUSHION, INSTRUMENT PANEL, NO.4

main55358-47030iNHW20¥370200308-200705

main55358-47060iNHW20¥300200705-200903

55359DCUSHION, INSTRUMENT PANEL, NO.5

main55359-47010iNHW20¥360200308-200903

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-47010iNHW20..RHD¥1,010200308-200903

main55376-47020iNHW20..LHD¥1,010200308-200903

55391CUSHION, INSTRUMENT PANEL, LOWER NO.1

main55391-47010iNHW20¥230200308-200903

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

55464CINSERT, INSTRUMENT PANEL LOWER PAD, RH

main55464-47010iNHW20¥1,690200308-200903

55512APLATE, GLOVE COMPARTMENT

main55512-47010iNHW20..RHD¥1,430200308-200903

main55512-47020iNHW20..LHD¥1,430200308-200903

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-47010iNHW20..LHD¥120,000200308-200511

main73960-47020iNHW20..RHD¥120,000200308-200903

main73960-47040iNHW20..LHD200511-200903

7403

82140WIRE ASSY, INSTRUMENT PANEL

main82140-47020iNHW20¥1,150200308-200903

9015960610

main90159-60610¥70

9015970004

main90159-70004¥60

9017906115

main90179-06115¥120

9017906323

main90179-06323¥110

9017908063

main90179-08063¥160

9018305103

main90183-05103¥90

9046705161C0

main90467-05161C0

9046710203

main90467-10203¥60

9046712080

main90467-12080¥60

9163160816

main91631-60816¥160

91631J0612

main91631-J0612¥110

9164180818

main91641-80818¥80

9356855014

main93568-55014¥70

9356855016

main93568-55016¥70

31 parts on this diagram · 10 diagrams in section
