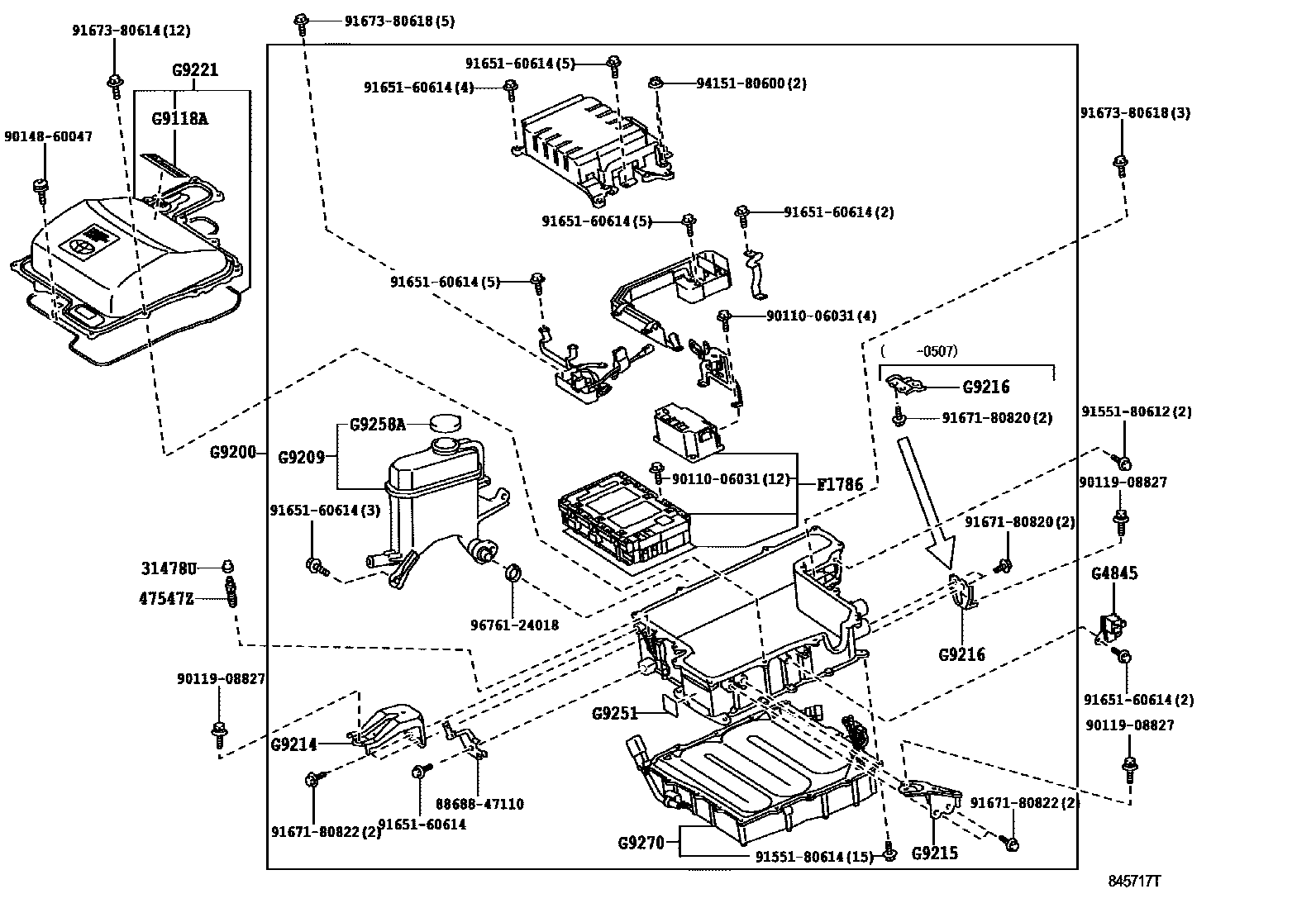

Toyota PRIUS — HEV INVERTER

31478UCAP, BLEEDER PLUG(FOR INVERTER BLEEDER UNION)

main31478-30010iNHW20¥160200308-200903

47547ZPLUG, BLEEDER(FOR INVERTER BLEEDER UNION)

main47547-20030iNHW20¥230200308-200903

F1786TRANSISTOR, POWER MODULE INTELLIGENT, NO.1

main04899-47010iNHW20¥233,000200308-200903

G4845SENSOR, CIRCUIT BREAKER, NO.1

mainG484547020iNHW20200308-200903

G9118ALABEL, HV MOTOR CONTROL INVERTER CAUTION

mainG911847010iNHW20200308-200502

subG9118-47020¥320

mainG911847020iNHW20200502-200903

G9200INVERTER ASSY, W/CONVERTER

mainG920047100iNHW20200308-200412

subG9200-47120¥342,000

mainG920047120iNHW20200501-200704

subG9200-47121¥342,000

mainG920047121iNHW20200705-200903

G9209TANK SUB-ASSY, INVERTER RESERVE

mainG920947030iNHW20200308-200412

subG9209-47040¥6,700

mainG920947040iNHW20200501-200903

G9214BRACKET, INVERTER, NO.1

mainG921447030iNHW20200308-200401

mainG921447031iNHW20200401-200903

G9215BRACKET, INVERTER, NO.2

mainG921547030iNHW20200308-200401

mainG921547031iNHW20200401-200903

G9216BRACKET, INVERTER, NO.3

mainG921647020iNHW20200308-200507

subG9216-47021¥1,320

sub91671-80820¥80

mainG921647021iNHW20200508-200903

G9221COVER, INVERTER

mainG902247020iNHW20200308-200502

subG9022-47030¥9,400

mainG902247030iNHW20200502-200903

G9251SEAT, INVERTER NAME

mainG925147010iNHW20200308-200903

G9258ACAP, INVERTER RESERVE TANK

mainG925830010iNHW20200308-200501

subG9258-28012¥1,410

mainG925847011iNHW20200501-200903

subG9258-28012¥1,410

G9270CONVERTER ASSY, EV

mainG927047040iNHW20200308-200903

8868847110BRACKET, COOLER DIAPHRAGM

main88688-47110

9011006031

main90110-06031¥60

9011908827

main90119-08827¥90

9014860047

main90148-60047¥240

9155180612

main91551-80612¥60

9155180614

main91551-80614¥60

9165160614

main91651-60614¥70

9167180820

main91671-80820¥80

9167180822

main91671-80822¥80

9167380614

main91673-80614¥60

9167380618

main91673-80618¥60

9415180600

main94151-80600¥60

9676124018

main96761-24018¥350

27 parts on this diagram · 1 diagram in section
