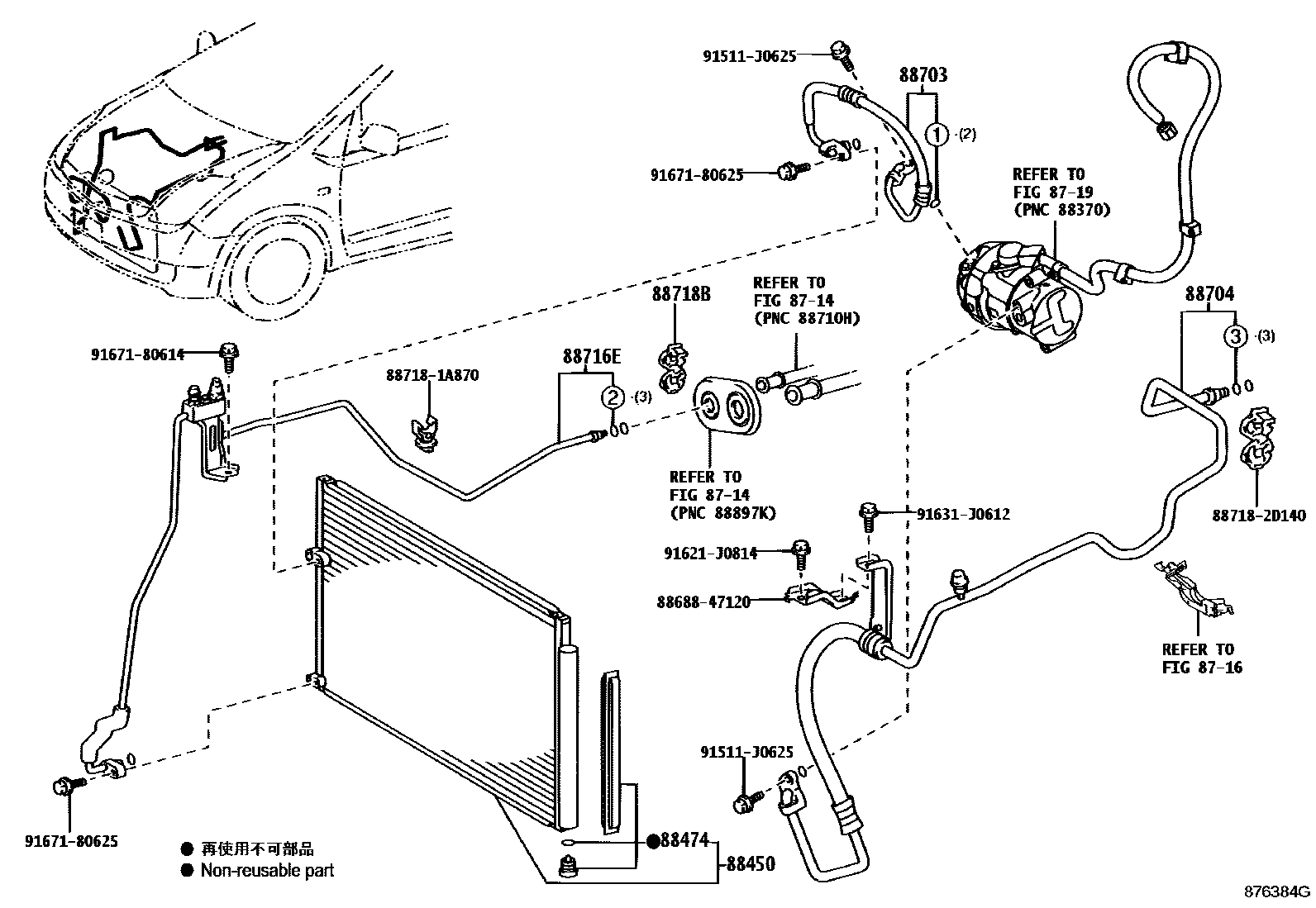

Toyota PRIUS — HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1O-RING

8714

8716

8719

88450CONDENSER ASSY, W/RECEIVER

main88450-47020iNHW20¥57,600200308-200903

88474DRYER, COOLER

main88474-17010iNHW20200308-200511

main88474-47020iNHW20¥0200511-200903

88703HOSE SUB-ASSY, DISCHARGE

main88703-47030iNHW20¥13,000200308-200903

88704HOSE SUB-ASSY, SUCTION

main88704-47030iNHW20..RHD¥29,500200308-200903

main88704-47040iNHW20..LHD¥30,800200308-200903

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88706-47070iNHW20..RHD¥23,700200308-200903

main88706-47080iNHW20..LHD¥23,400200308-200903

88718BCLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)

main88718-2D150iNHW20200308-200903

8868847120BRACKET, COOLER DIAPHRAGM

main88688-47120

887181A870PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A870

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

91511J0625

main91511-J0625¥110

91621J0814

main91621-J0814¥60

91631J0612

main91631-J0612¥110

9167180614

main91671-80614¥60

9167180625

main91671-80625¥70

17 parts on this diagram · 2 diagrams in section
