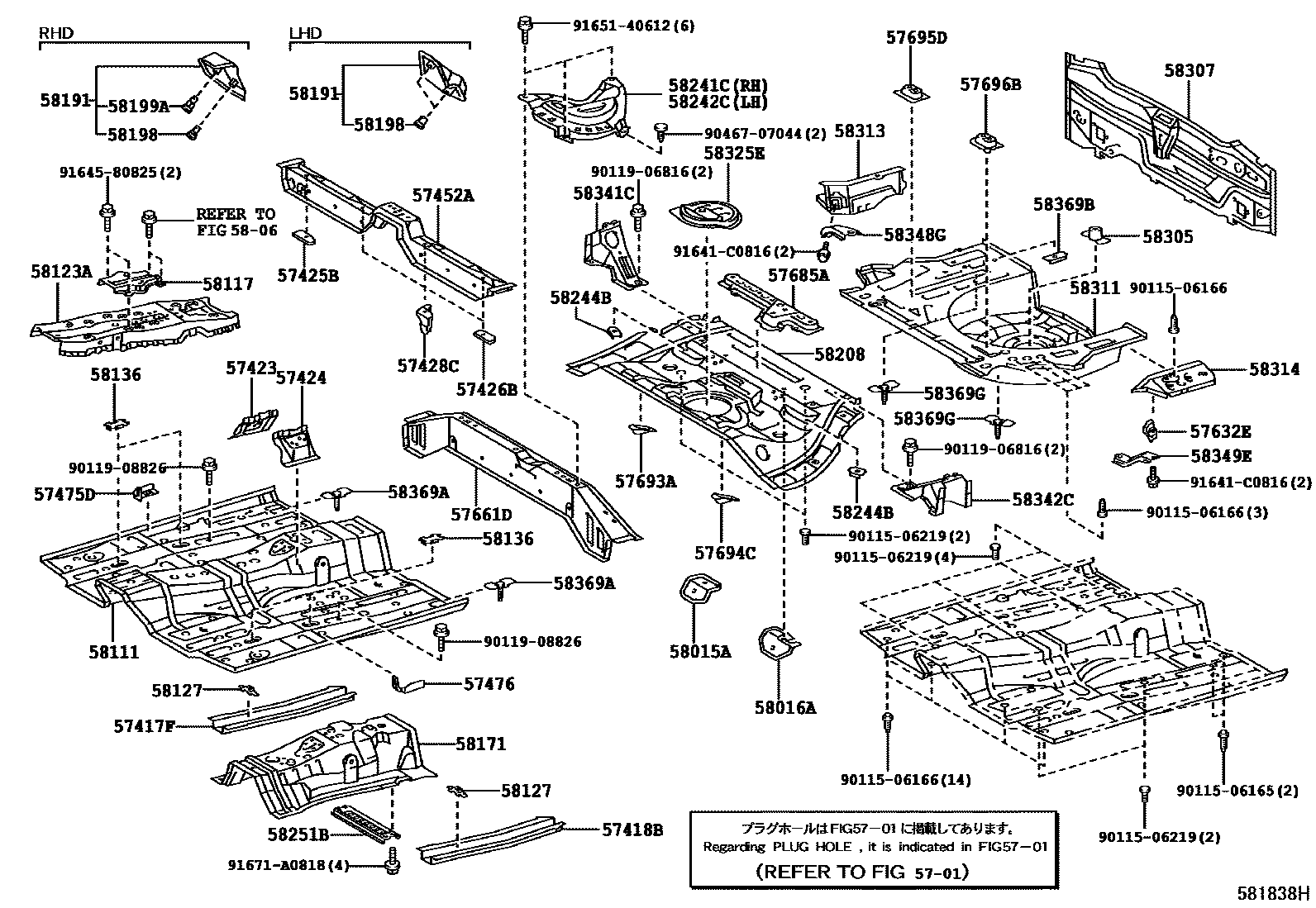

Toyota PRIUS — FLOOR PAN & LOWER BACK PANEL
5701
57417FREINFORCEMENT, FRONT FLOOR UNDER, RH
57418BREINFORCEMENT, FRONT FLOOR UNDER, LH
57423BRACKET, FRONT FLOOR REINFORCEMENT, RH
57424BRACKET, FRONT FLOOR REINFORCEMENT, LH
57425BREINFORCEMENT, FRONT FLOOR, NO.2 RH
57426BREINFORCEMENT, FRONT FLOOR, NO.2 LH
57428CREINFORCEMENT, FRONT FLOOR, NO.3 LH
57452AMEMBER, FRONT FLOOR CROSS, NO.2
57475DPLATE, FRONT FLOOR CROSSMEMBER, RH
57476PLATE, FRONT FLOOR CROSSMEMBER, LH
57632EEXTENSION, REAR FLOOR SIDE MEMBER, FR LH
57661DMEMBER, REAR FLOOR CROSS, FRONT
57685ABRACKET, REAR FLOOR MOUNTING, NO.1 RH
57693AREINFORCEMENT, FUEL TANK MOUNTING BRACKET, RH
57694CREINFORCEMENT, FUEL TANK MOUNTING BRACKET, LH
57695DBRACKET, REAR FLOOR MOUNTING, NO.2 RH
57696BBRACKET, REAR FLOOR MOUNTING, NO.2 LH
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
5806
58111PAN, FRONT FLOOR
58117REINFORCEMENT, FRONT FLOOR SIDE, NO.1
58123ASUPPORT, SHIFT & SELECT LEVER
58127PATCH, FRONT FLOOR PANEL
58136COVER, FRONT FLOOR HOLE
58171REINFORCEMENT, PARKING BRAKE BASE
58191FOOTREST, FRONT FLOOR
58198CLIP, FOOTREST
58199ACLIP, FOOTREST, NO.2
58208PAN, CENTER FLOOR
58241CPANEL, FLOOR SIDE, RH
58242CPANEL, FLOOR SIDE, LH
58244BBRACKET, REAR SEAT CUSHION MOUNTING
58251BBRACE, FLOOR PANEL, FRONT
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58341CBRACKET, REAR ABSORBER MOUNTING, NO.1 RH
58342CBRACKET, REAR ABSORBER MOUNTING, NO.1 LH
58348GPLATE, REAR FLOOR SIDE, RH
58349EPLATE, REAR FLOOR SIDE, LH
58369ABRACKET, FUEL TUBE, NO.3
58369BBRACKET, FUEL TUBE, NO.3
58369GBRACKET, FUEL TUBE, NO.3
9011506165
9011506166
9011506219
9011906816
9011908826
9046707044
91641C0816
9164580825
9165140612
91671A0818
58 parts on this diagram · 1 diagram in section
