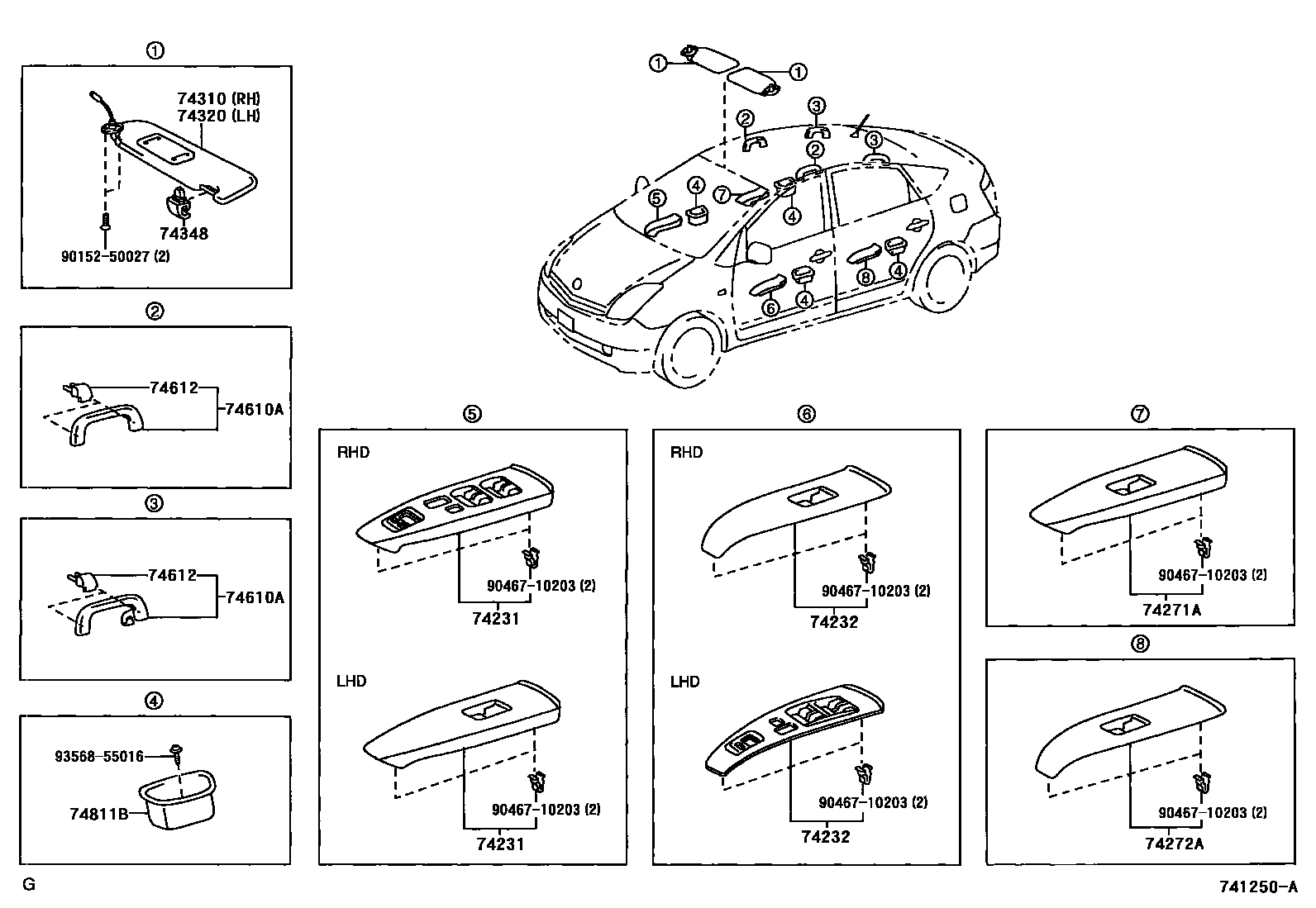

Toyota PRIUS — ARMREST & VISOR

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-47070iNHW20..RHD¥3,030200308-200505

sub74231-47071

main74231-47071iNHW20..RHD200511-200903

main74231-47071iNHW20..RHD200506-200511

main74231-47080iNHW20..LHD¥3,370200308-200505

sub74231-47081¥3,370

main74231-47081iNHW20..LHD¥3,370200506-200511

main74231-47081iNHW20..LHD¥3,370200511-200903

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-47060iNHW20..RHD¥3,370200308-200505

sub74232-47061

main74232-47061iNHW20..RHD200506-200511

main74232-47061iNHW20..RHD200511-200903

main74232-47070iNHW20..LHD¥3,030200308-200505

sub74232-47071¥3,010

main74232-47071iNHW20..LHD¥3,010200506-200511

main74232-47071iNHW20..LHD¥3,010200511-200903

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-47050iNHW20¥2,960200308-200505

sub74271-47051¥2,960

main74271-47051iNHW20¥2,960200506-200511

main74271-47051iNHW20¥2,960200511-200903

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-47050iNHW20¥2,960200308-200505

sub74272-47051¥2,980

main74272-47051iNHW20¥2,980200511-200903

main74272-47051iNHW20¥2,980200506-200511

74310VISOR ASSY, RH

main74310-47120-B3iNHW20..RHD..EUR200308-200403

GRAY,TRIM1#

sub74310-47120¥4,180

main74310-47121-B4iNHW20..RHD..EUR200403-200407

LT.GRAY,TRIM1#

sub74310-47122

main74310-47122-B4iNHW20..RHD..EUR200408-200412

LT.GRAY,TRIM1#

sub74310-47123

main74310-47123-B4iNHW20..RHD..EUR200511-200903

LT.GRAY,TRIM1#

main74310-47123-B4iNHW20..RHD..EUR200501-200511

LT.GRAY,TRIM1#

main74310-47123-E0iNHW20..RHD..EUR200711-200903

GREGE,TRIM4#

main74310-47130-A1iNHW20..ARL200308-200403

IVORY,TRIM0#

sub74310-47130¥4,410

main74310-47130-B3iNHW20..ARL;NHW20..LHD200308-200403

GRAY,TRIM1#

sub74310-47130¥4,410

main74310-47131-A2iNHW20..ARL200403-200407

IVORY,TRIM0#

sub74310-47132

main74310-47131-B4iNHW20..ARL;NHW20..LHD200403-200407

LT.GRAY,TRIM1#

sub74310-47132

main74310-47132-A2iNHW20..ARL200408-200412

IVORY,TRIM0#

sub74310-47133

main74310-47132-B4iNHW20..ARL;NHW20..LHD200408-200412

LT.GRAY,TRIM1#

sub74310-47133

main74310-47133-A2iNHW20..ARL200501-200511

IVORY,TRIM0#

main74310-47133-B4iNHW20..ARL;NHW20..LHD200501-200511

LT.GRAY,TRIM1#

main74310-47133-B4iNHW20..ARL;NHW20..LHD200511-200903

LT.GRAY,TRIM1#

main74310-47133-E0iNHW20..ARL;NHW20..LHD200511-200903

GREGE,TRIM4#

74320VISOR ASSY, LH

main74320-47110-B3iNHW20..RHD..EUR200308-200403

GRAY,TRIM1#

sub74320-47110¥4,410

main74320-47111-B4iNHW20..RHD..EUR200403-200407

LT.GRAY,TRIM1#

sub74320-47112

main74320-47112-B4iNHW20..RHD..EUR200408-200412

LT.GRAY,TRIM1#

sub74320-47113

main74320-47113-B4iNHW20..RHD..EUR200501-200511

LT.GRAY,TRIM1#

main74320-47113-B4iNHW20..RHD..EUR200511-200903

LT.GRAY,TRIM1#

main74320-47113-E0iNHW20..RHD..EUR200711-200903

GREGE,TRIM4#

main74320-47120-A1iNHW20..ARL200308-200403

IVORY,TRIM0#

sub74320-47120¥4,180

main74320-47120-B3iNHW20..ARL;NHW20..LHD200308-200403

GRAY,TRIM1#

sub74320-47120¥4,180

main74320-47121-A2iNHW20..ARL200403-200407

IVORY,TRIM0#

sub74320-47122

main74320-47121-B4iNHW20..ARL;NHW20..LHD200403-200407

LT.GRAY,TRIM1#

sub74320-47122

main74320-47122-A2iNHW20..ARL200408-200504

IVORY,TRIM0#

sub74320-47123¥4,190

main74320-47122-B4iNHW20..ARL;NHW20..LHD200408-200504

LT.GRAY,TRIM1#

sub74320-47123¥4,190

main74320-47123-A2iNHW20..ARL200505-200511

IVORY,TRIM0#

main74320-47123-B4iNHW20..ARL;NHW20..LHD200511-200903

LT.GRAY,TRIM1#

main74320-47123-B4iNHW20..ARL;NHW20..LHD200505-200511

LT.GRAY,TRIM1#

main74320-47123-E0iNHW20..ARL;NHW20..LHD200511-200903

GREGE,TRIM4#

74348HOLDER, VISOR

main74348-12040-A0iNHW20..ARL200308-200511

IVORY,TRIM0#

sub74348-12040¥760

main74348-12040-B0iNHW20200308-200511

LT.GRAY,TRIM1#

sub74348-12040¥760

main74348-12040-B0iNHW20200511-200903

LT.GRAY,TRIM1#

sub74348-12040¥760

main74348-12040-E2iNHW20..ARL;NHW20..LHD200511-200903

GREGE,TRIM4#

sub74348-12040¥760

main74348-12040-E2iNHW20..RHD..EUR200711-200903

GREGE,TRIM4#

sub74348-12040¥760

74610AGRIP SUB-ASSY, ASSIST

main74610-52010-A0iNHW20..ARL200308-200511

IVORY,TRIM0#,REAR

sub74610-52030¥2,280

main74610-52010-B1iNHW20200308-200511

GRAY,TRIM1#,REAR

sub74610-52030¥2,280

main74610-52010-B1iNHW20200511-200903

GRAY,TRIM1#,REAR

sub74610-52030¥2,280

main74610-52010-E1iNHW20200511-200903

GREGE,TRIM4#,REAR

sub74610-52030¥2,280

main74610-68010-A0iNHW20..ARL200308-200511

IVORY,TRIM0#,FRONT

sub74610-52020¥1,860

main74610-68010-B1iNHW20200511-200903

GRAY,TRIM1#,FRONT

sub74610-52020¥1,860

main74610-68010-B1iNHW20200308-200511

GRAY,TRIM1#,FRONT

sub74610-52020¥1,860

main74610-68010-E1iNHW20200511-200903

GREGE,TRIM4#,FRONT

sub74610-52020¥1,860

74612COVER, ASSIST GRIP

main74612-68010-A0iNHW20..ARL200308-200511

IVORY,TRIM0#

sub74612-52030¥360

main74612-68010-B1iNHW20200308-200511

GRAY,TRIM1#

sub74612-52030¥360

main74612-68010-B1iNHW20200511-200903

GRAY,TRIM1#

sub74612-52030¥360

main74612-68010-E1iNHW20200511-200903

GREGE,TRIM4#

sub74612-52030¥360

74811BHANDLE, DOOR PULL

main74811-12060-B3iNHW20200308-200511

MD.GRAY,TRIM1#

sub74811-12060¥630

main74811-12060-B3iNHW20200511-200903

MD.GRAY,TRIM1#

sub74811-12060¥630

main74811-12060-E1iNHW20..ARL200308-200511

MD.NEUTRAL BONE,TRIM0#

sub74811-12060¥630

main74811-12060-E2iNHW20200511-200903

GREGE,TRIM4#

sub74811-12060¥630

9015250027

main90152-50027¥110

9046710203

main90467-10203¥60

9356855016

main93568-55016¥70

13 parts on this diagram · 1 diagram in section
