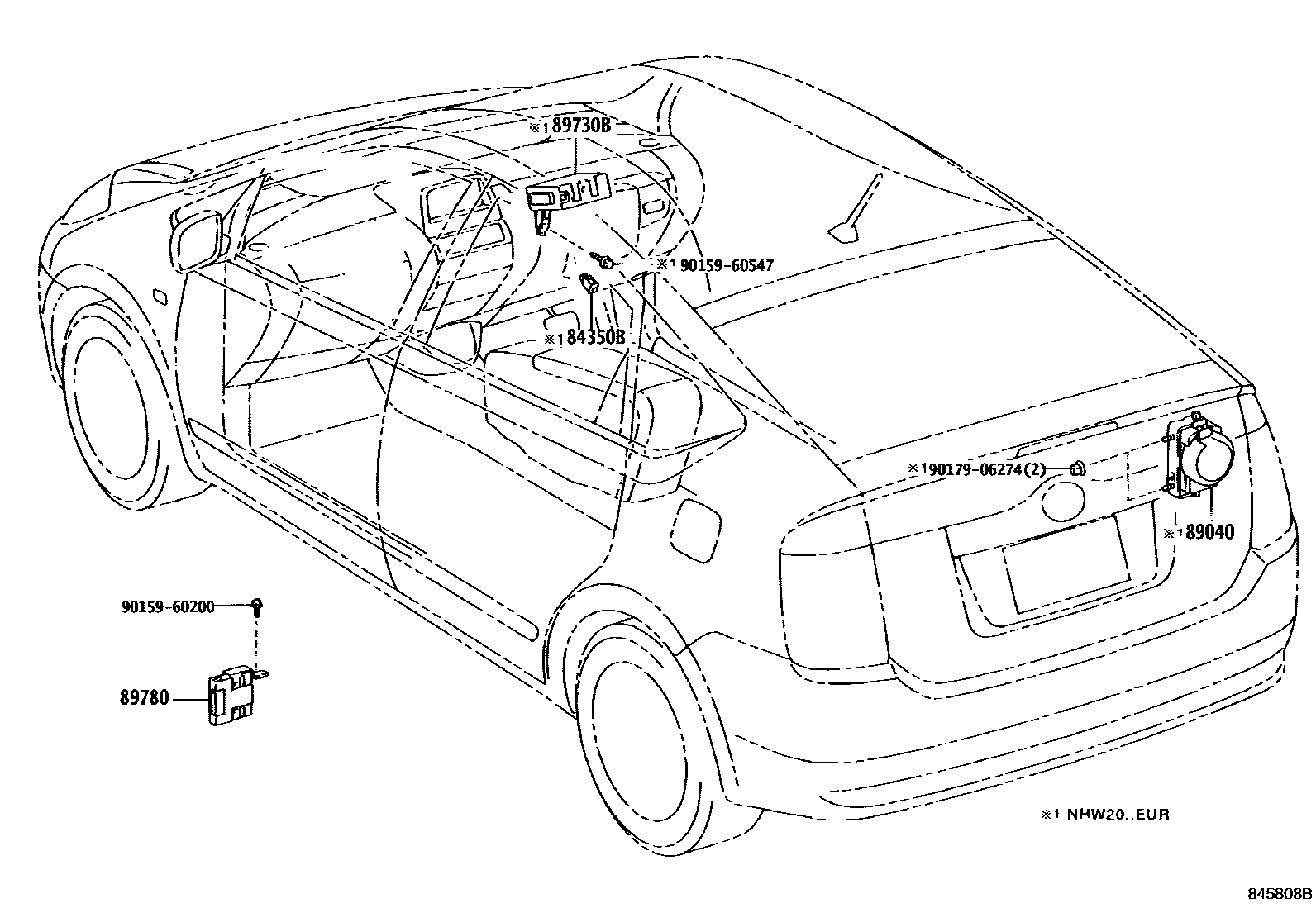

Toyota PRIUS — ANTI-THEFT DEVICE

0001 1 0002 1

84350BSWITCH ASSY, THEFT WARNING SENSOR

main84350-47010iNHW20..RHD..EUR¥3,690200308-200511

HONG KONG SPEC

main84350-47010iNHW20..RHD..EUR¥3,690200511-200903

HONG KONG SPEC

main84350-47010iNHW20..RHD..EUR¥3,690200511-200903

SINGAPORE SPEC

89040SIREN ASSY, THEFT WARNING

main89040-48020iNHW20..RHD..EUR¥34,700200308-200511

HONG KONG SPEC

main89040-48020iNHW20..RHD..EUR¥34,700200511-200903

HONG KONG SPEC

main89040-48020iNHW20..RHD..EUR¥34,700200511-200903

SINGAPORE SPEC

89730BCOMPUTER ASSY, THEFT WARNING

main89730-47020iNHW20..RHD..EUR¥42,800200308-200511

HONG KONG SPEC

sub89730-47021

main89730-47020iNHW20..RHD..EUR¥42,800200511-200806

HONG KONG SPEC

sub89730-47021

main89730-47020iNHW20..RHD..EUR¥42,800200511-200806

SINGAPORE SPEC

sub89730-47021

main89730-47021iNHW20..RHD..EUR200807-200903

HONG KONG SPEC

main89730-47021iNHW20..RHD..EUR200807-200903

SINGAPORE SPEC

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-47020iNHW20¥17,200200308-200511

main89780-47030iNHW20¥17,200200511-200707

main89780-47040iNHW20¥17,200200708-200806

sub89780-47041¥17,200

main89780-47041iNHW20¥17,200200807-200903

9015960200

main90159-60200¥100

9015960547

main90159-60547¥90

9017906274

main90179-06274¥70

7 parts on this diagram · 2 diagrams in section
