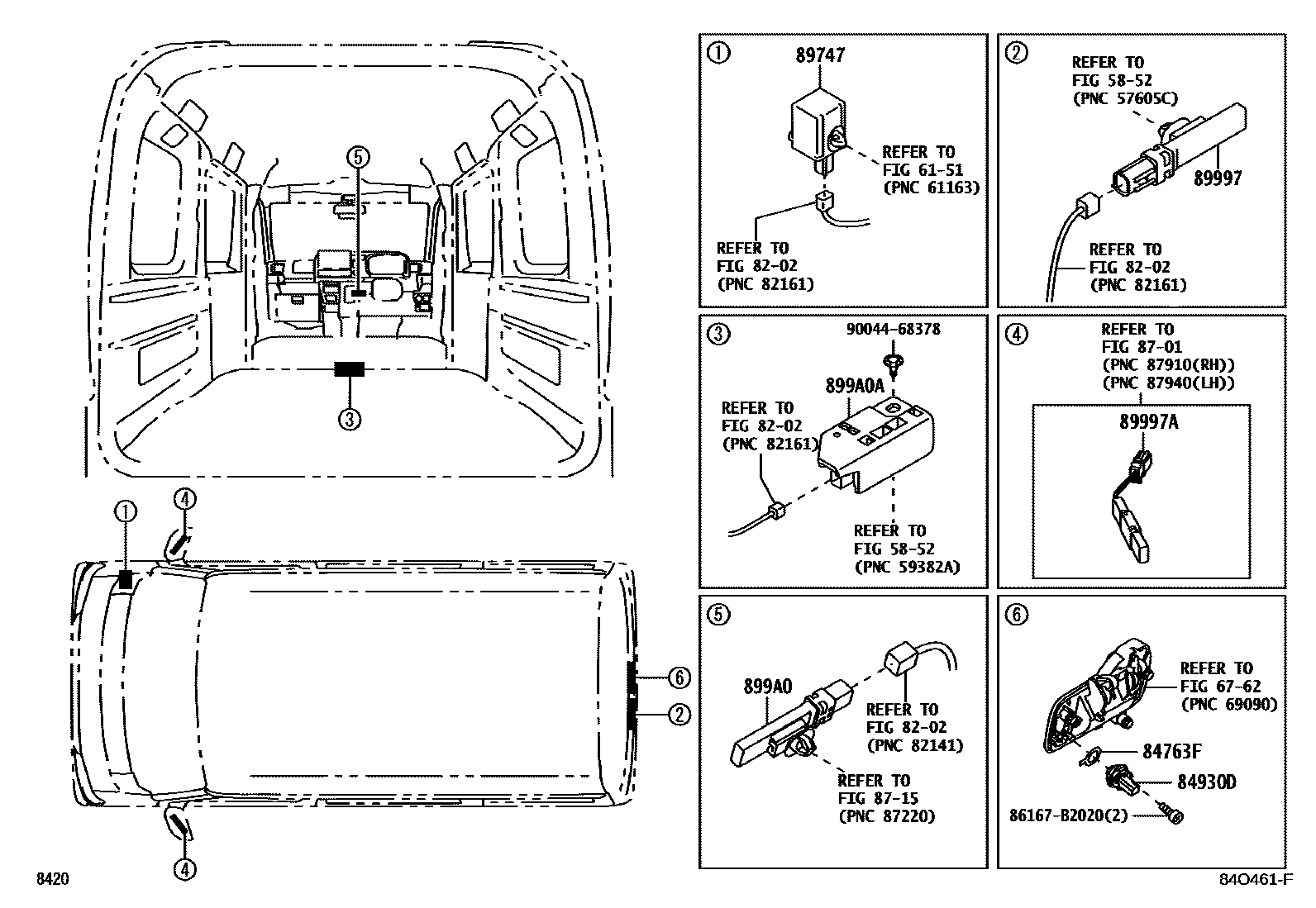

Toyota PIXIS VAN — WIRELESS DOOR LOCK

5852

6151

6762

8202

84763FPLATE, SWITCH

main81818-B2090iS700,710..CVT..CR¥120202112

84930DSWITCH, DOOR CONTROL

main84905-B2110iS700,710..CVT..CR¥1,950202112

8701

8715

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iS700,710..CVT..CR¥2,900202112

89997ANTENNA, ELECTRICAL KEY

main89997-B1100iS700,710..CVT..CR¥3,040202112

89997AANTENNA, ELECTRICAL KEY, NO.2

main89997-B2380iS700,710..CVT..CR¥4,120202112

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main89997-B2360iS700,710..CVT..CR¥3,040202112

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main89997-B5020iS700,710..CVT..CR¥4,590202112

86167B2020SCREW, SPEAKER

main86167-B2020¥120

9004468378

main90044-68378¥110

15 parts on this diagram · 1 diagram in section
