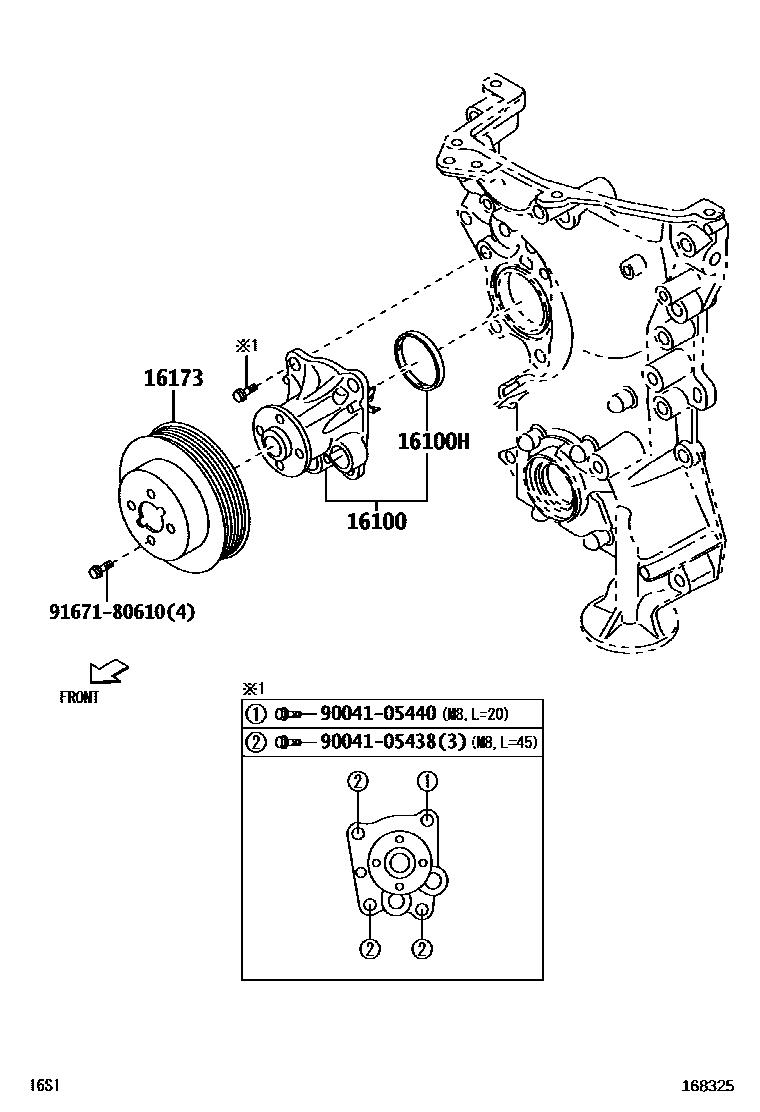

Toyota PIXIS VAN — WATER PUMP

16100PUMP ASSY, ENGINE WATER

main16100-B9500iKFVE..S700,710¥9,500202112

main16100-B9510iKFVET..S700,710¥9,600202112

16100HRING, O(FOR WATER PUMP)

main90043-01323iKFV#..S700,710¥470202112

16173PULLEY, WATER PUMP

main16173-B2070iKFV#..S700,710¥2,320202112

9004105438

main90041-05438¥210

9004105440

main90041-05440¥150

9167180610

main91671-80610¥60

6 parts on this diagram · 1 diagram in section
